Part 4 T
rouble Shooting
- 92
-
Copyright © 2019 - 2020 LG Electronics Inc.
All rights reserved. Only training and service purposes.

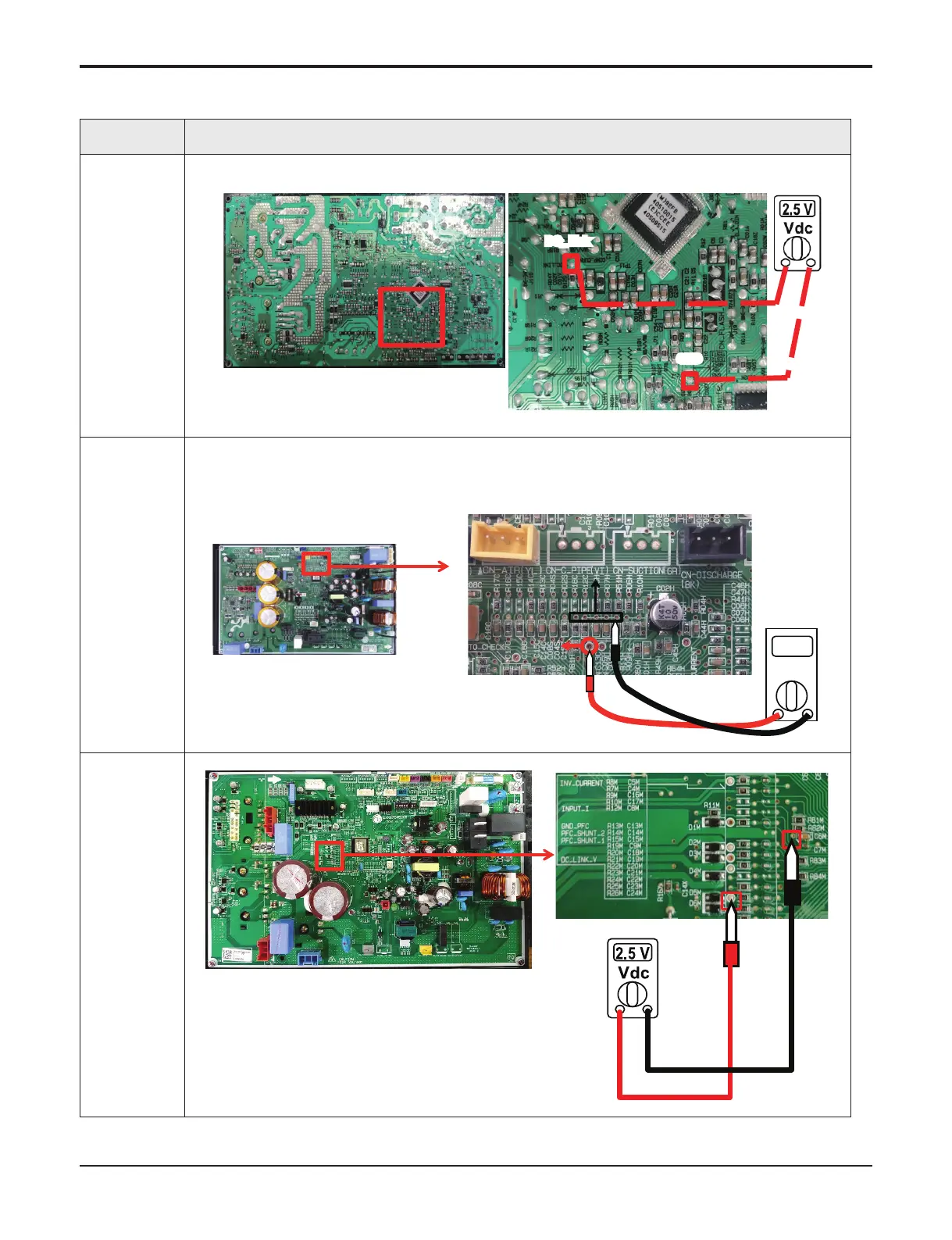

DC Link Detection Circuit Check Point
Division
2 kW
4 kW
4.5kW
■
DC Link Detection Circuit Check Point
Re
d
Black
GND
GND
DC_LINK
DC_LINK
GND
DC_ Link
1. Check DC Link Sensing Signal measurements at Power-on standby state. (DC
2.4 ~ 2.8 V)
91
93
