LG DLEX3370W Service Manual

16 17

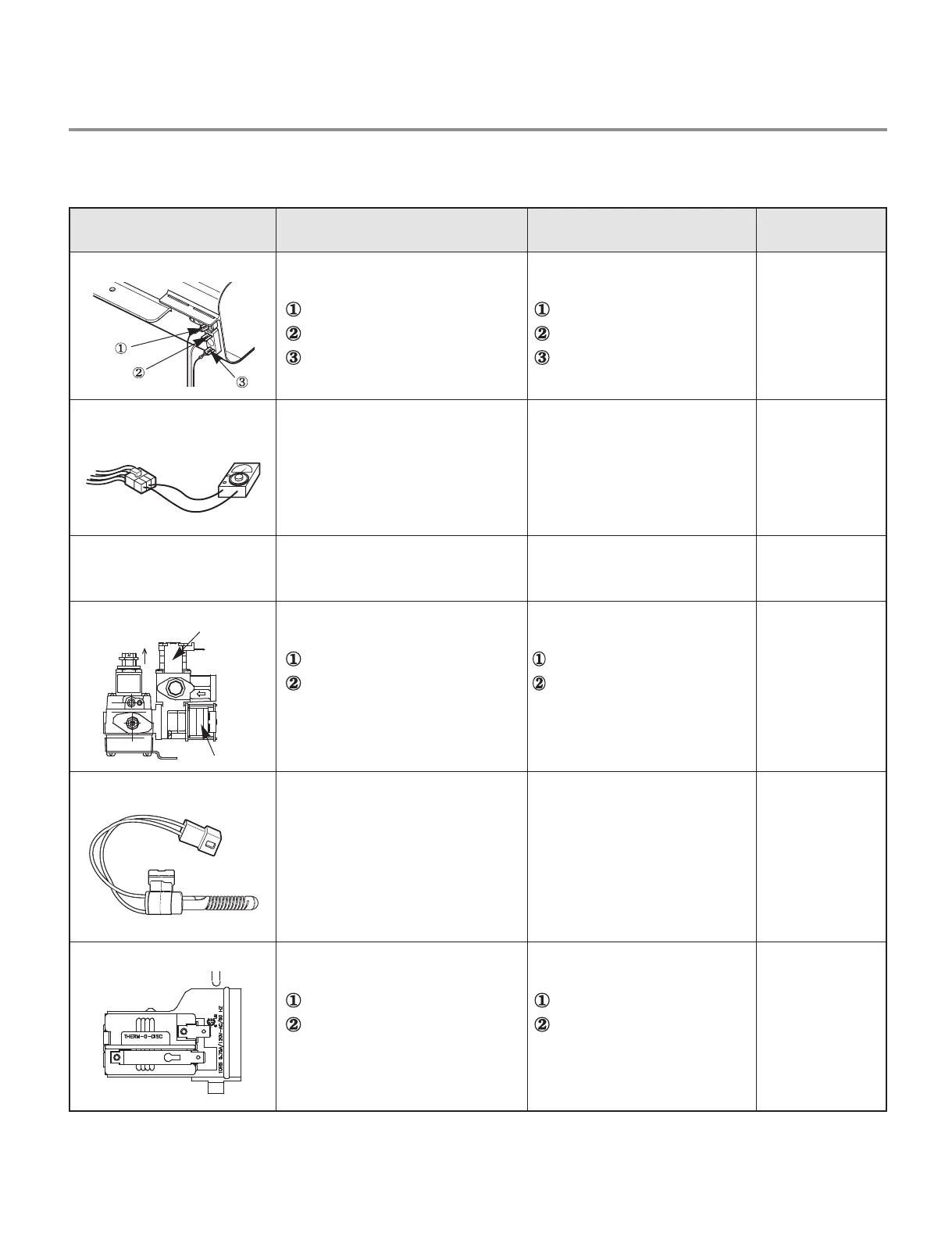

7. Heater Measure resistance of the
following terminal
Terminal: 1 (COM) - 2
Terminal: 1 (COM) - 3
Terminal: 2 - 3
Resistance value: 10Ω
Resistance value: 10Ω
Resistance value: 20Ω
• Electric type
8. Thermistor Measure resistance of terminal
to terminal
Temperature condition:
58°F ~ (10~40°C)
58°F ~ 104F (10~40°C)
Resistance value: 10Ω• Heater case -
Hi limit
• Electric type
9. Motor • See Page 13
10. Gas valve
valve 1
valve 2
Measure resistance of the
following terminal
Valve 1 terminal
Valve 2 terminal
Resistance value: >1.5 k Ω
Resistance value: > 1.5~2.5 k Ω
• Gas type
11. Igniter Measure resistance of terminal
to terminal
Resistance value: 100~800Ω• Gas type
12. Flame DetectMeasure resistance of terminal
to terminal
Open at 370°F ((Maximum)
Close at 320°F
Resistance value
≒
∞
Resistance value <1Ω
• Gas type
Component Test Procedure Check result Remark

LG DLEX3370W Specifications

General

Type	Electric Dryer
Capacity	7.4 cu. ft.
Color	White
Energy Star	Yes
Steam Technology	Yes
Sensor Dry	Yes
Warranty	1 Year Parts and Labor
Brand	LG
Model	DLEX3370W
Wrinkle Care Option	Yes
Door Reversal	Yes
Control Type	Electronic
Display Type	LED
