<Electric Dryer>
Component Picture Test Point Value

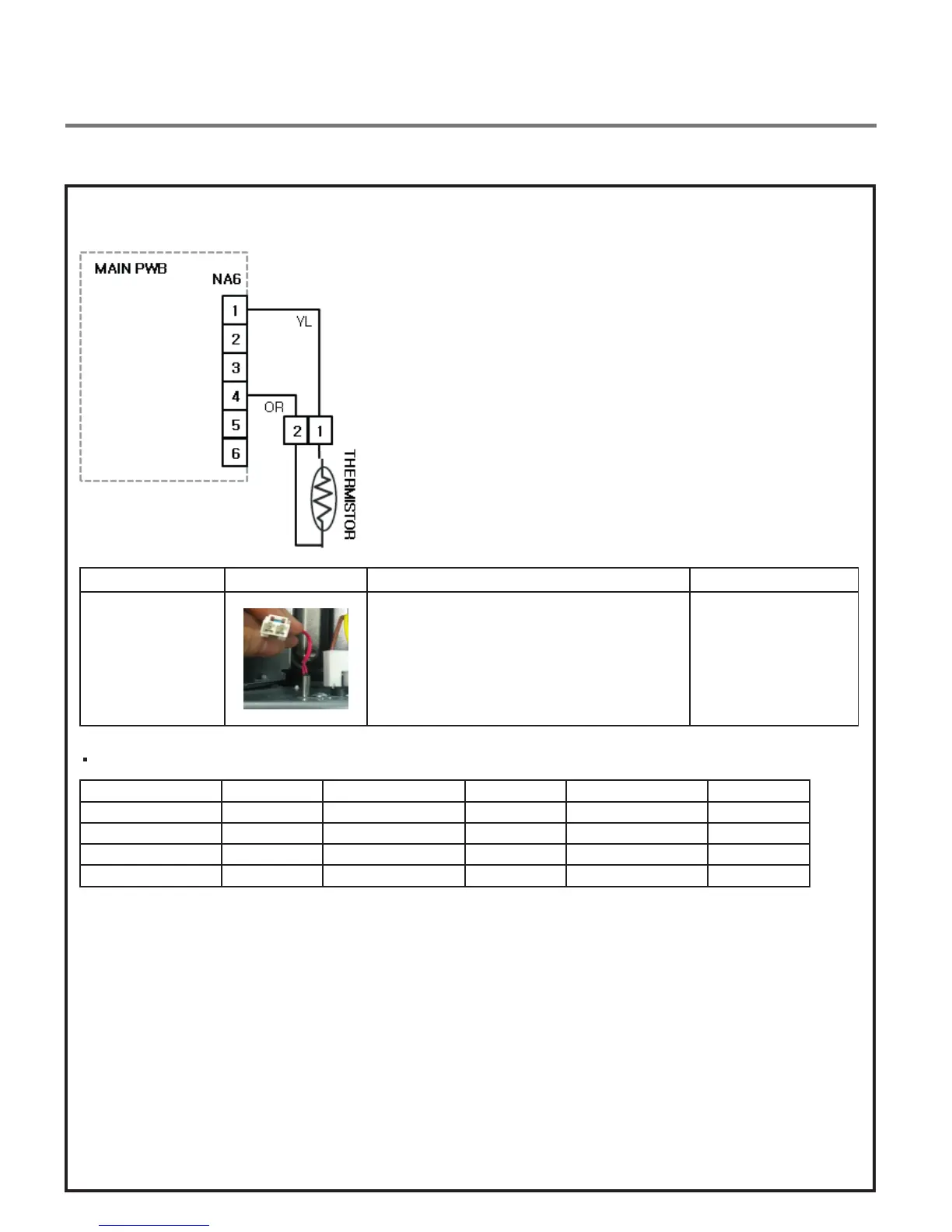

Thermistor
Check if resistance is in the range of
Table 1 when measuring resistance between ter-
minals after separating harness
from thermistor assembly connector.
Refer to Table 1
Table 1. Resistance for Thermistor Temperature.
Air TEMP. [°F( ℃)] RES. [KΩ] Air TEMP. [°F(℃))] RES. [KΩ] Air TEMP. [°F(℃))] RES. [KΩ]
50°F (10℃) 18.0 90°F (32°C) 7.7 130°F (54℃) 2.9
60°F (16℃) 14.2 100°F (38°C) 6.2 140°F (60℃) 3.0
80°F (21℃) 11.7 110°F (43°C) 5.2 150°F (66℃) 2.5
70°F (27℃) 9.3 120°F (49°C) 4.3 160°F (71℃) 2.2
To Next Page
