LG DLEX5000 series User Manual

18
5PPMT/FFEFE flat blade screwdriver, Phillips screwdriver
#FGPSF4UBSUJOH
1. Unplug the machine or turn off the power supply at
the main circuit before reversing the door. Open the
dryer door.
W
WARNING
#FTVSFUPTVQQPSUUIFXFJHIUPGUIFEPPSCFGPSF
removing the hinge screws.
3FNPWJOHUIF%PPS
1. While supporting the door, remove the four hinge
screws.
2. Carefully pull the door away from the cabinet to reveal
the wire harness behind the hinge at the top. Depress
the side lock tab to disconnect the wire harness
connector. The twist tie and cap should prevent the
wire harness from pulling back into the cabinet.
3. Remove the door from the cabinet cover. Set the door
face down on a protected work surface.
Cap R

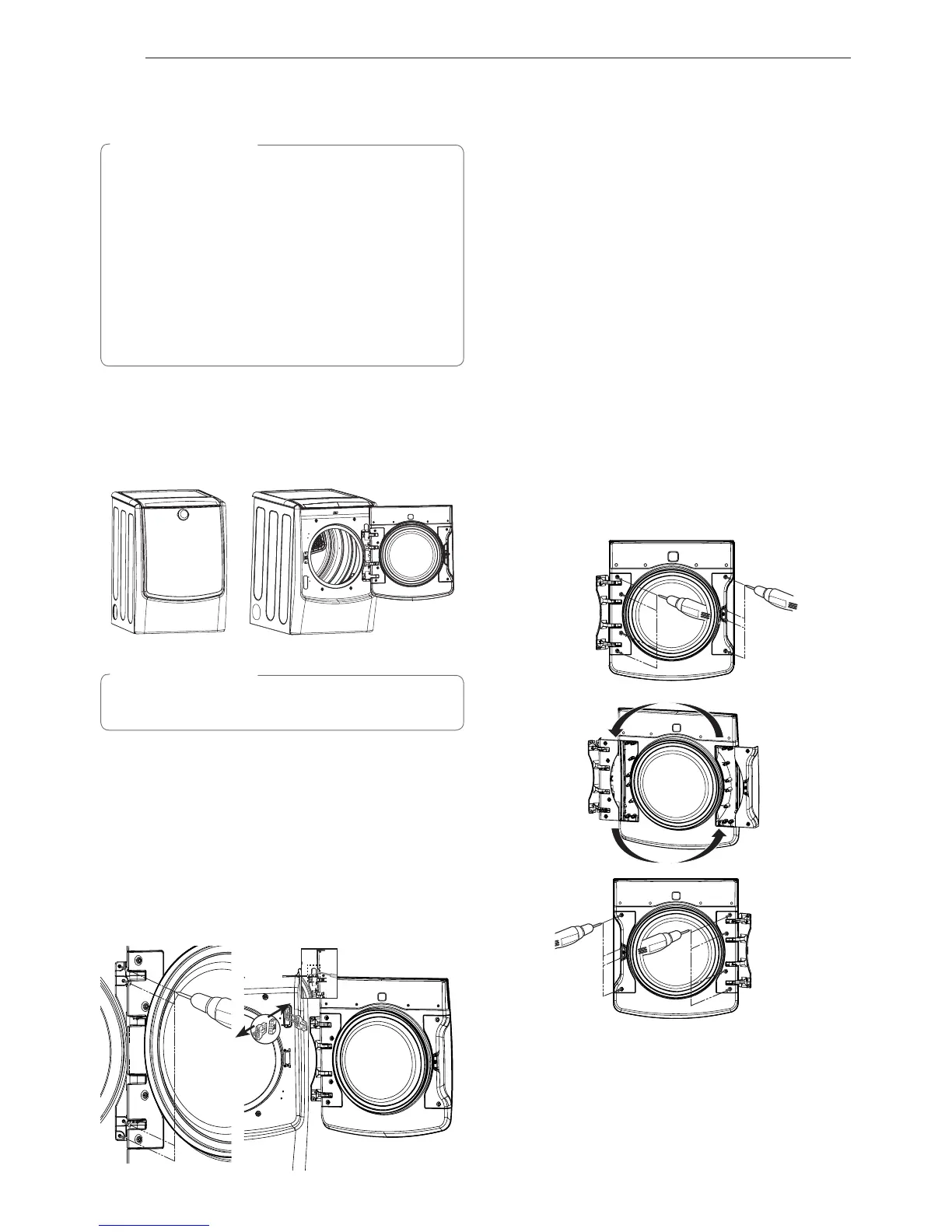

Reversing the Door
W
WARNING
THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure
to follow the instructions below can result in damage
to the dryer, property damage or injury to persons.
t5PBWPJEEBNBHFUPUIFESZFSPSUIFEPPSTVQQPSU
UIFEPPSXJUIBTUPPMPSCPYUIBUGJUTVOEFSUIF
EPPSPSIBWFBOBTTJTUBOUTVQQPSUUIFXFJHIUPG
the door.
t"MXBZTSFWFSTFUIFEPPS#&'03&TUBDLJOHUIF
ESZFSPOUPQPGUIFXBTIFS
t"WPJEESPQQJOHUIFEPPSUPBWPJEEBNBHFUPUIF
EPPSPSUIFGMPPS
INSTALLATION
3FWFSTJOHUIF%PPST)JOHFBOE4USJLF
1. Remove the four screws on the right door frame
(handle and strike), lift it off, and set the parts aside.
(The two center strike screws are longer.)
2. Remove the four screws on the left door frame (hinge
assembly).
3. Carefully lift out the hinge assembly, revealing the
wire harness connector at the top of the hinge.
Depress the side lock tab to disconnect the wire
harness connector.
4. Rotate the hinge assembly 180 degrees and connect
the wire harness to the connector in the bottom right
side of the door.
5. Install the hinge assembly in the recess on the right
side of the door, tucking the wire harness in the corner
to make room. Insert and tighten the four screws.
6. Rotate the handle removed in step one 180 degrees
and install it on the left side of the door using the two
shorter screws. Use the longer screws to mount the
door strike in the center.
Frame L Frame R
