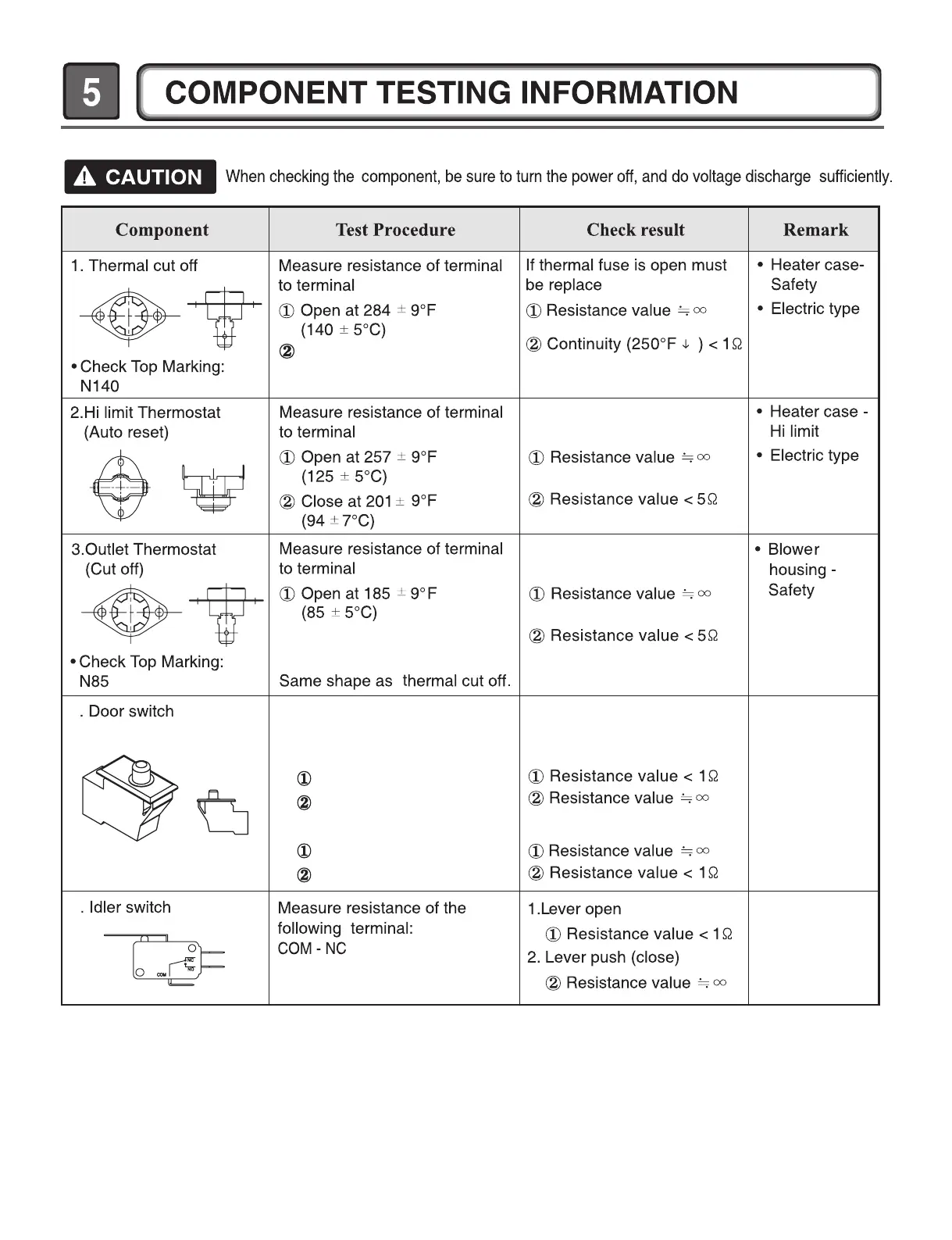

LG DLG7001 Series - 5 Component Testing Informaiton

11
Auto reset -31°F (-35°C)
Same shape as outlet thermostat.
Measure resistance of the
following terminal
1) Door open
4
5
Terminal: COM - NC (1-3)
Terminal: COM - NO (1-2)
2) Door closed
Terminal: COM - NC (1-3)
Terminal: COM - NO (1-2)
