4. Remove the 4 screws securing the hinges to the door
frame. Remove the two plastic cover caps. Reinstall
the hinges and cover caps on the opposite sides from
which they were removed
.
5. With the hinges and cover caps in the new locations,
remount the inner door frame onto the outer door
frame with the screws removed in step 3 above.
6. Reinstall the door with the screws from steps 1,2.
6. Test the swing of the door to make sure the hinges
and latch are properly aligned and that the door
closes and latches correctly
.
WARNING
THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure
to follow the instructions below can result in damage to
the dryer, property damage or injury to persons.
• To avoid damage to the dryer or the door, support
the door with a stool or box that ts under the
door, or have an assistant support the weight of the
door.
• Avoid dropping the door to avoid damage to the
door or the oor.
1. Open the door and remove the two plastic hole caps
on the catch side by gently prying up with a at blade
screwdriver. Save these for step 6.
2. While supporting the door, remove the 4 screws, two
from each hinge. Set the door aside face down on a
protected surface to prevent damage to the door or
the work surface.
3. With the door on a protected surface, remove the 12
screws on each side of the door and lift o the inner
door frame using a at blade screwdriver. Remove the
latch hook and blank and move them to the opposite
side.

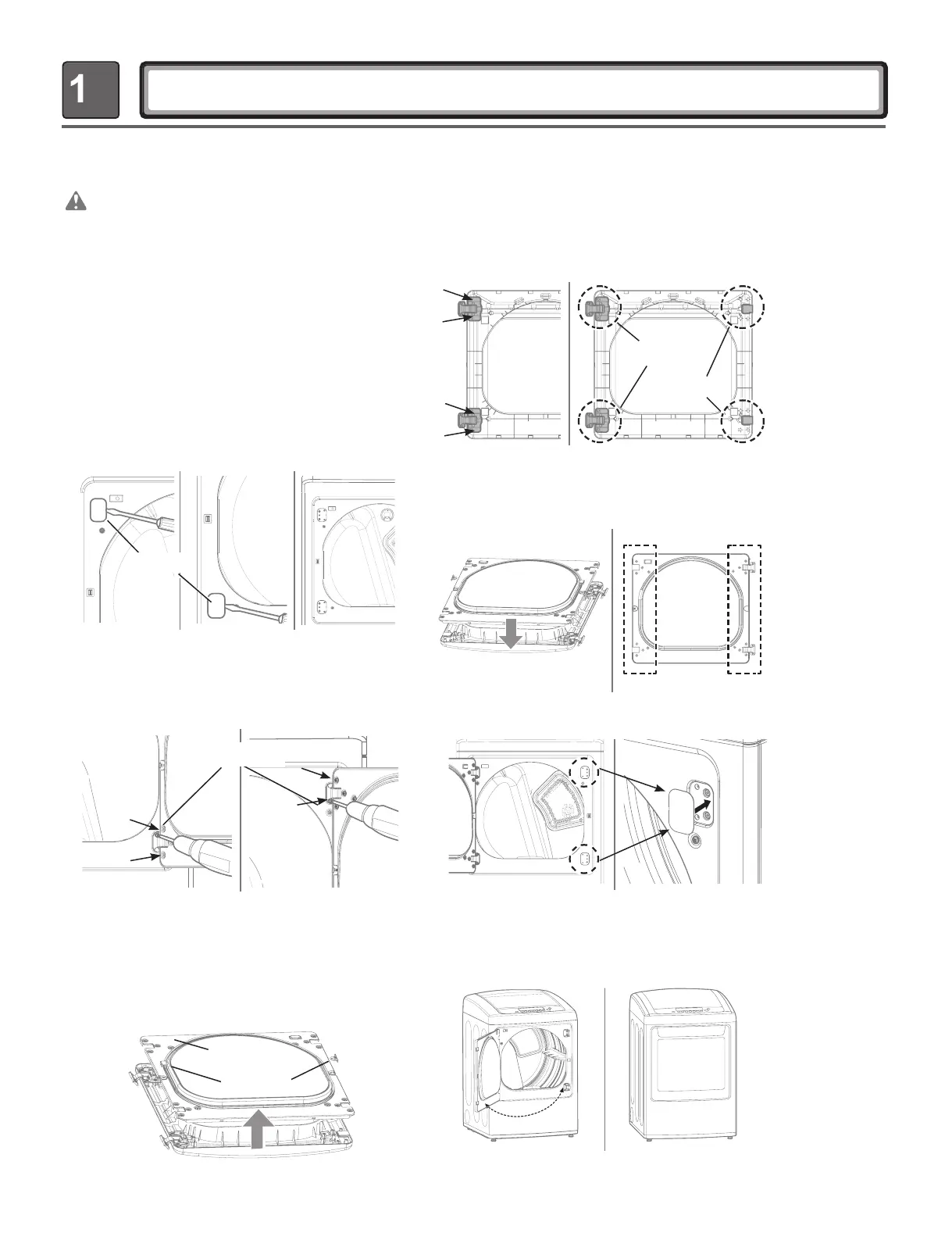

Reversing the Door
Hole cap
Hinge screw
Inner door
frame
Latch hook
Hinge
assembly
Cover cap
Swing Door
To Next Page
