DRYER

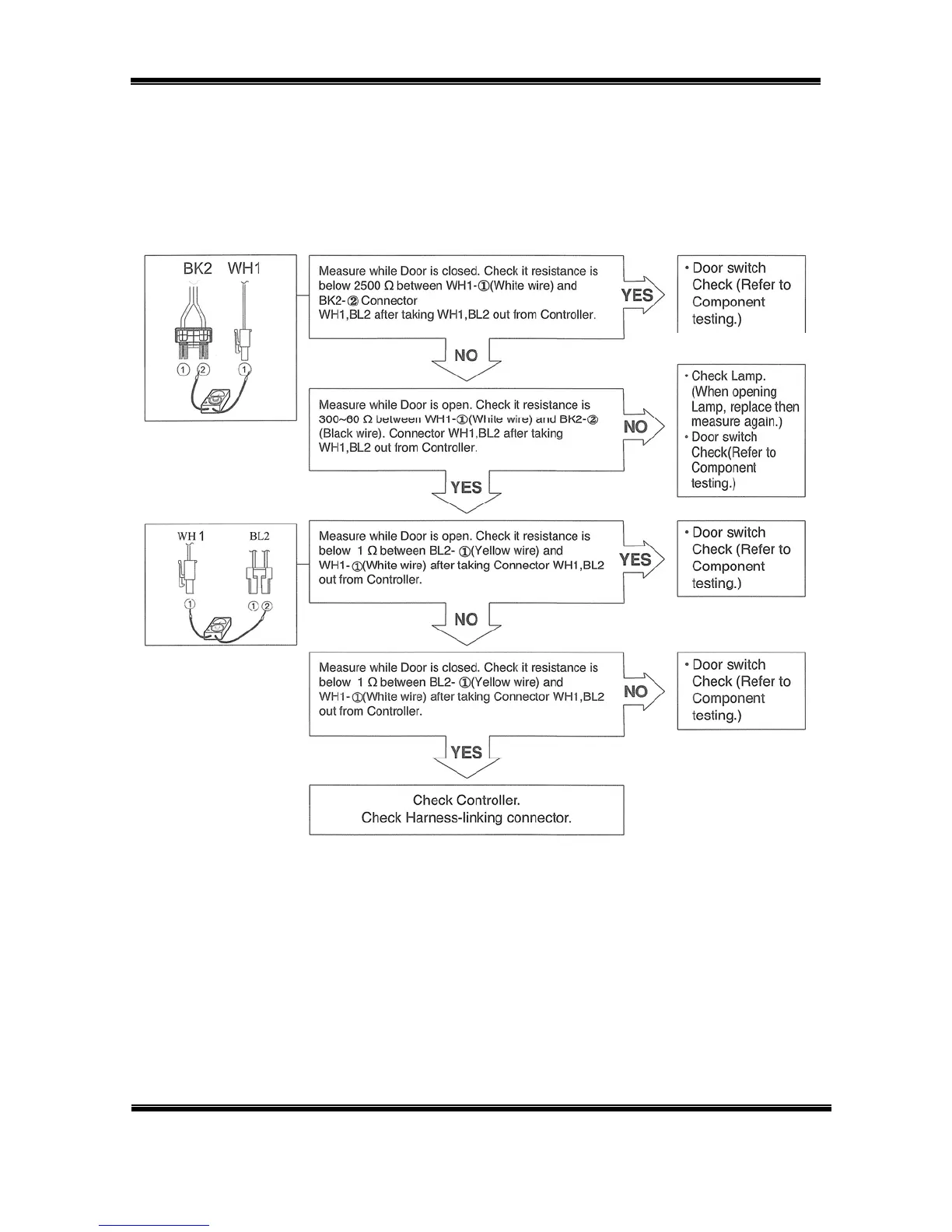

TEST 5 – Door Switch Test
WARNING!
Discharge
before
m
easuring resistance.
SYMPTOM!
Door opening not sensed
(dryer runs with door open).
CONDITION!
Turn dryer off, unplug,
discharge, and measure resistance.
DLE8377xM/DLG8388xM
DLE7177WM/DLE7188WM
Page 36 of 60
TRAINING MANUAL
35
37
Table of Contents
Regulatory Notices
3
Table of Contents
4
Contents
4
Introduction
6
Sensor Dry
7
Manual Dry
7
Specifications
9
Accessories
10
Installation (of Accessories)
10
Rack
10
Stacking Kit
11
Pedestal
13
Modem and Monitor
15
Electric Dryer
16
Pigtail
16
4-Wire Connection
16
3-Wire Connection
17
Electrical Connection
18
Gas Dryer
19
Piping
19
Dryer Cycle Chart
20
Component Testing Procedures
21
Motor Diagram and Schematic
24
Safety Switches
25
Display Pwb
26
Control and PCB Layout
26
Wiring Diagram
28
Diagnostic Test
29
Test 1 - 120 V AC Electrical Supply
30
Test 2 - Thermistor Test (Power Off)
33
Test 3 - Motor Test
34
Test 4 - Moisture Sensor Test
35
Test 5 - Door Switch Test
36
Test 6 - Heater Switch Test (Electric Dryer)
37
Test 7 - Gas Valve Test (Gas Dryer)
38
Test 8 - Semiconductor Test
39
Gas Conversion (Natural to Propane)
40
Safety Warning
40
Orifice
41
Gas Valve Operation
42
Flow Chart
42
Ignition Sequence
42
Disassembly/Repair
43
Top Cover
43
Control Panel
44
Front Cover and Door
45
Door Reversal
45
Tub Front
46
Drum Assembly and Belt
46
Lamp
47
Vent Replacement (Rear to Side Exhaust)
48
Filter Assembly and Moisture Sensor
49
Back Cover
49
Air Duct
50
Rollers
51
Blower and Housing
52
Exploded Views
53
Top Cover and Control Panel
53
Cabinet and Door
54
Drum and Motor (Electric Dryer)
55
Exploded View
55
Drum and Motor (Gas Dryer)
56
Parts List
57
