DRYER
VENT REPLACEMENT

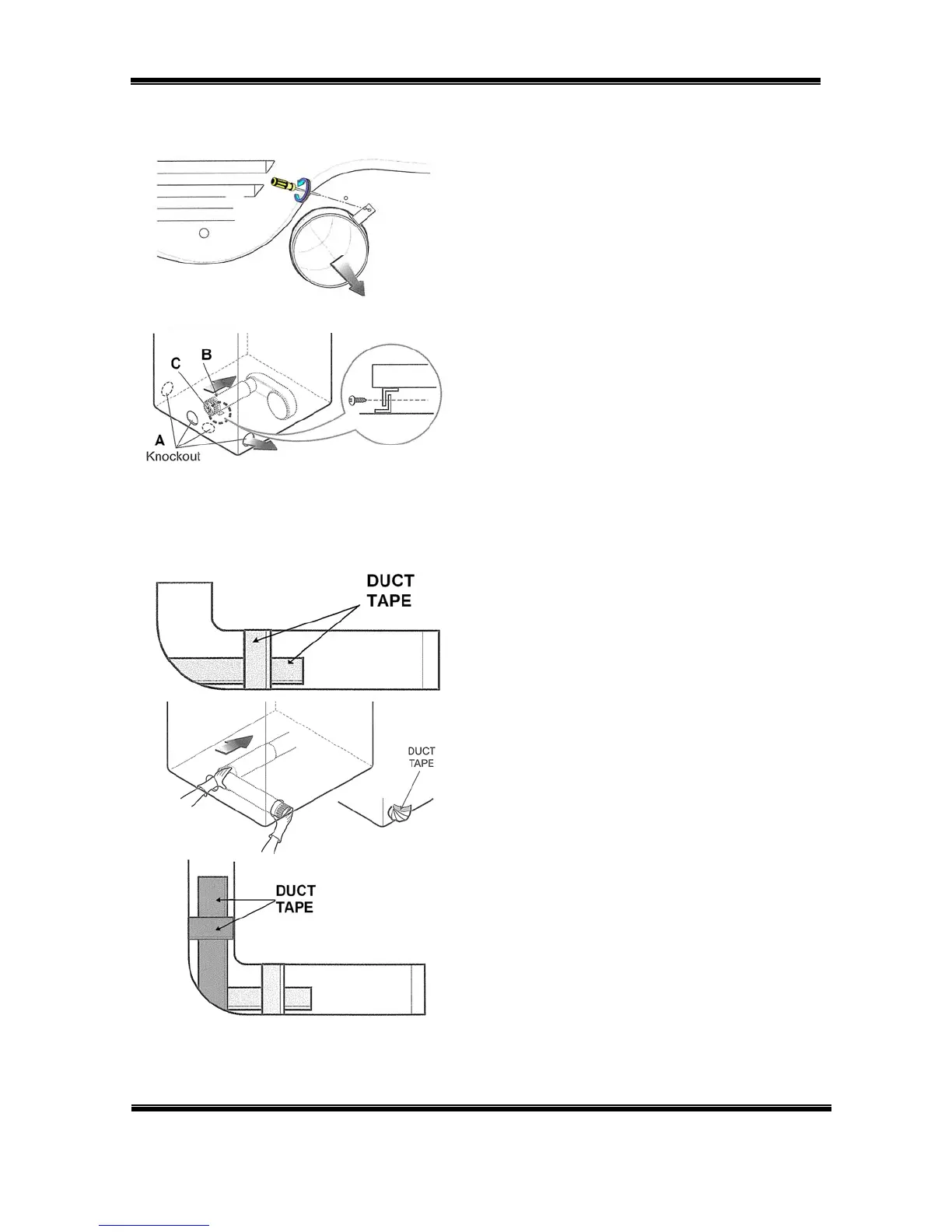

1. Use the VENT KIT to change
the exhaust direction.
(Part # 383EEL9001B)
On the back of the dryer,
remove the screw securing the
exhaust duct.
2. (A) Remove the knockout on the
left, right*, or bottom, as
necessary.
* Right vent option not available
on gas dryers due to internal
piping interference.
(B) Insert the replacement pipe.
(C) Attach the pipe with a screw.
3. Pre-assemble the elbow and a
replacement duct and secure
the joint with duct tape.
4. Insert the pre-assembled elbow
into the dryer through the vent
hole and connect it to the
internal pipe.
5. Tear off some pieces of duct
tape and secure that joint as
well.
6. Connect the pipe to the exhaust
duct.
DLE8377xM/DLG8388xM
DLE7177WM/DLE7188WM Page 48 of 60 TRAINING MANUAL
