2 Connecting
Connecting
14
Connecting
2
Connecting to
speakers

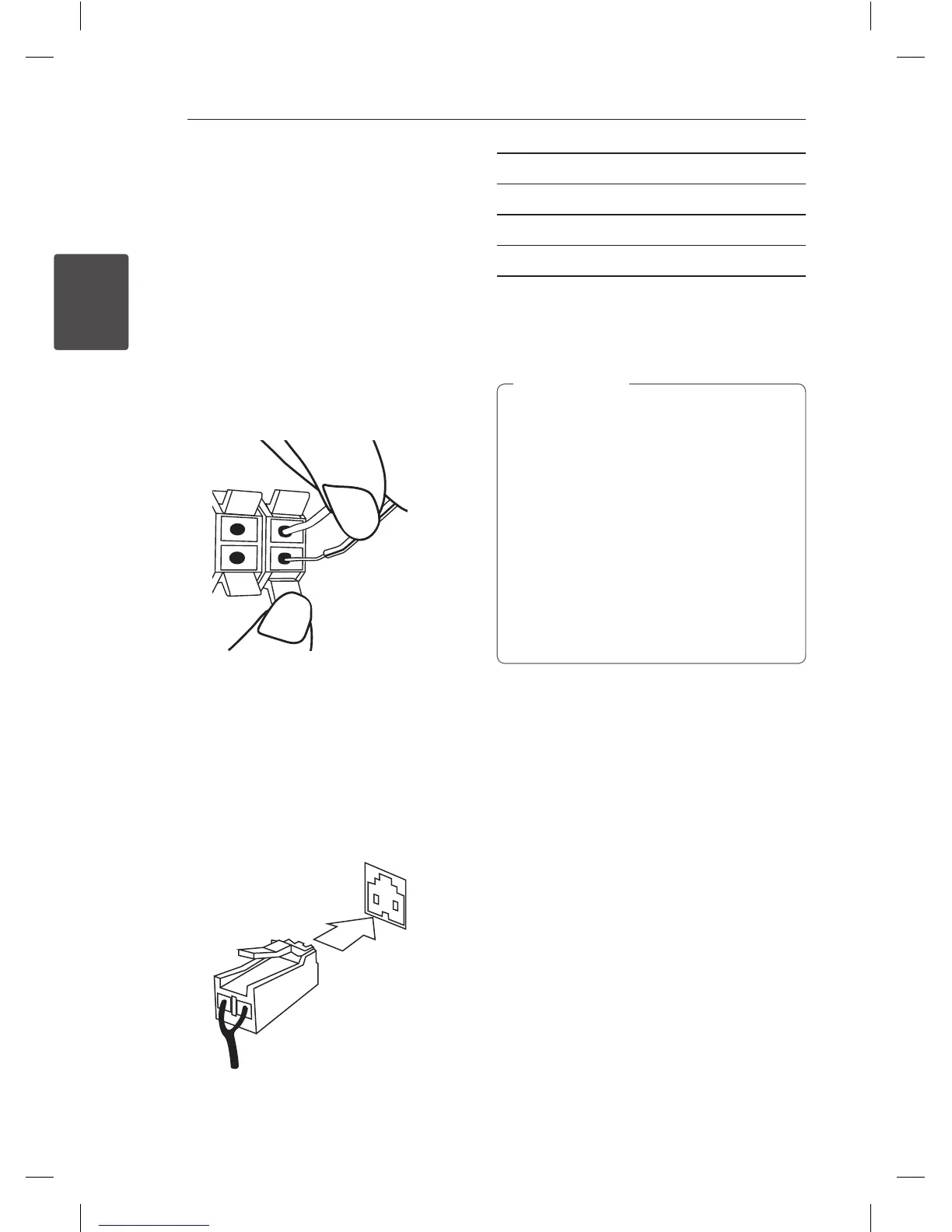

Attaching the speakers to the
unit
Connect the wires to the unit. Match each wire’s
colored band to the same colored connection ter-
minal on the rear of the unit. To connect the cable
to the unit, press each plastic nger pad to open the
connection terminal. Inset the wire and release the
nger pad.
Attaching the subwoofer to
the unit.
Connect the black stripe of each wire to the termi-
nals marked -(minus) and the other end to the ter-
minals marked + (plus).
Color Speaker Position
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
To connect the cable to the speakers, press each
plastic nger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the nger pad.
y
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
• Do not connect any other speaker except
sub woofer speaker to the sub woofer
connection terminal on the rear of the unit.
>
Caution
SPK type changed_DM5540-FU_DPHLLLK_2013.12.07.indd 14 2013-12-19  6:56:02
