ELECTRICAL CONNECTION
ENGLISH

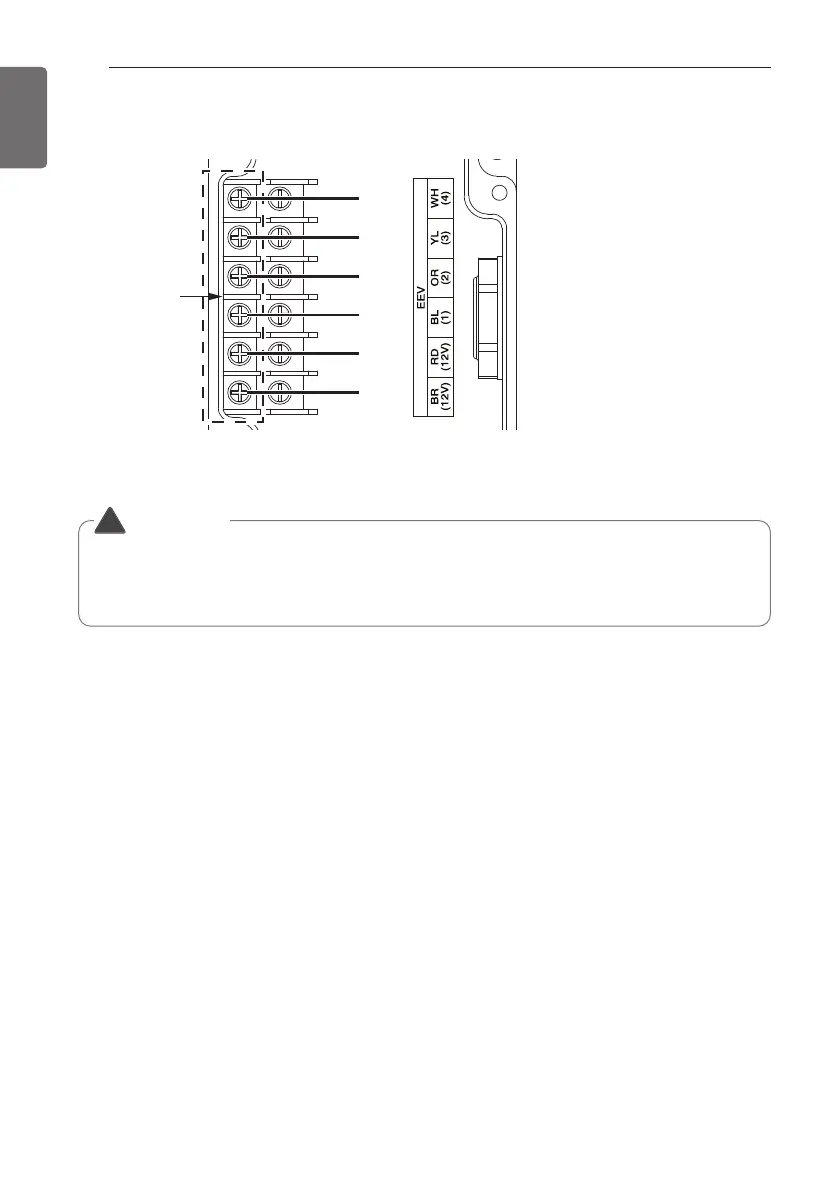

3 Use the screwdriver (+) to connect the EEV wires to the terminal block (E) according to the
displayed instructions.
E
Field Wiring Part
Note
BR : Brown
RD : Red
BL : Blue
OR : Orange
YL : Yellow
WH : White
WARNING
• Before installation, check the color on the label and connect it to the terminal block.
• It may result in malfunction.
• Use a ring type terminal (P4) to connect to the terminal block.
!
4 Close the cover of the EEV KIT terminal box (B).
