EEV KIT INSTALLATION
7
EEV KIT INSTALLATION
ENGLISH

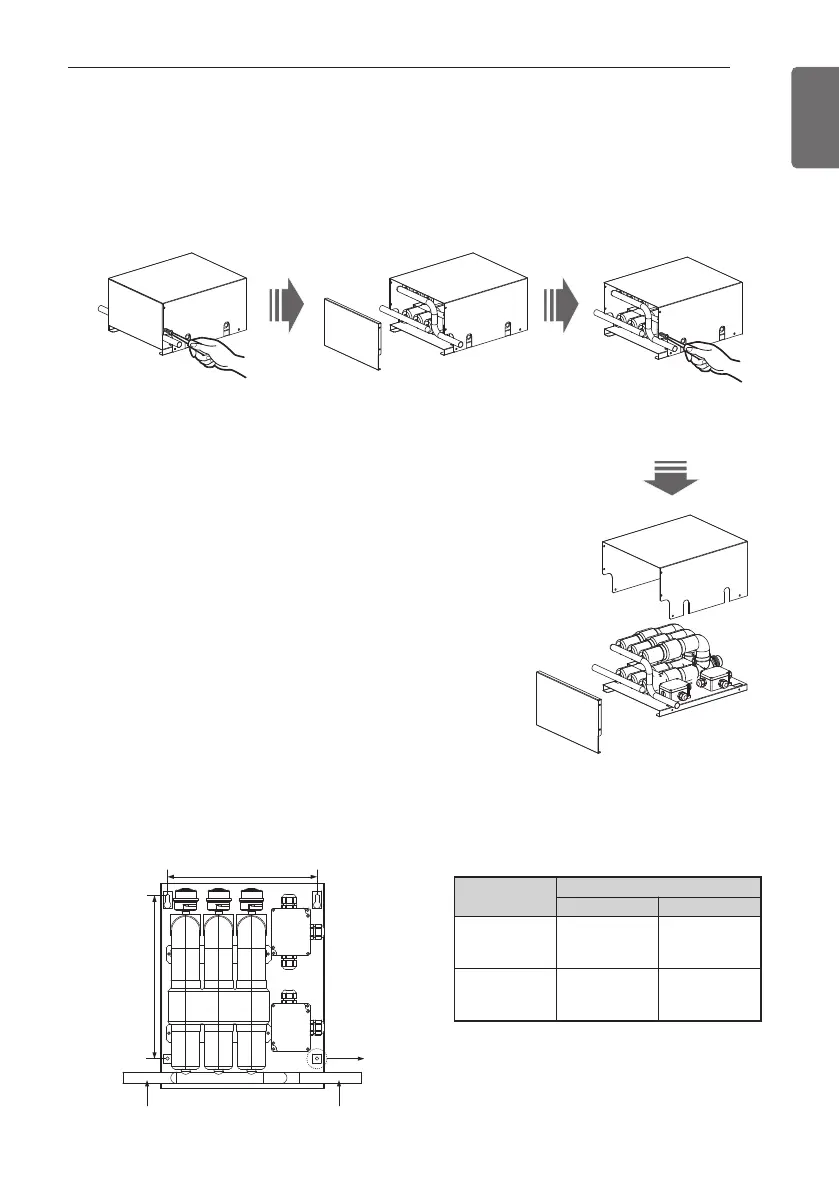

Product installation
1) Remove the two screws
from the EEV KIT's base
plate. Move the screws to
separate the cover plate and
base plate of the EEV KIT.
2) Remove the base plate. 3) Remove the four
screws from the
cover plate
4) Remove the cover
plate.
2
Drill holes in the correct locations and use 4 screws (M5, not provided) to affix the EEV KIT.
1 Remove the screws to separate the cover plate and base plate of the EEV KIT.
A
Pipe diameter
Ø19.05 mm (5/8")
B
Hole size
Ø6 mm (1/4")
Pipe diameter
Ø19.05 mm (5/8")
Model name
length
A B
PRLK594A0
273 mm
(10-3/4")
250.3 mm
(9-6/7")
PRLK396A0
273 mm
(10-3/4")
190.3 mm
(7-1/2")
