32

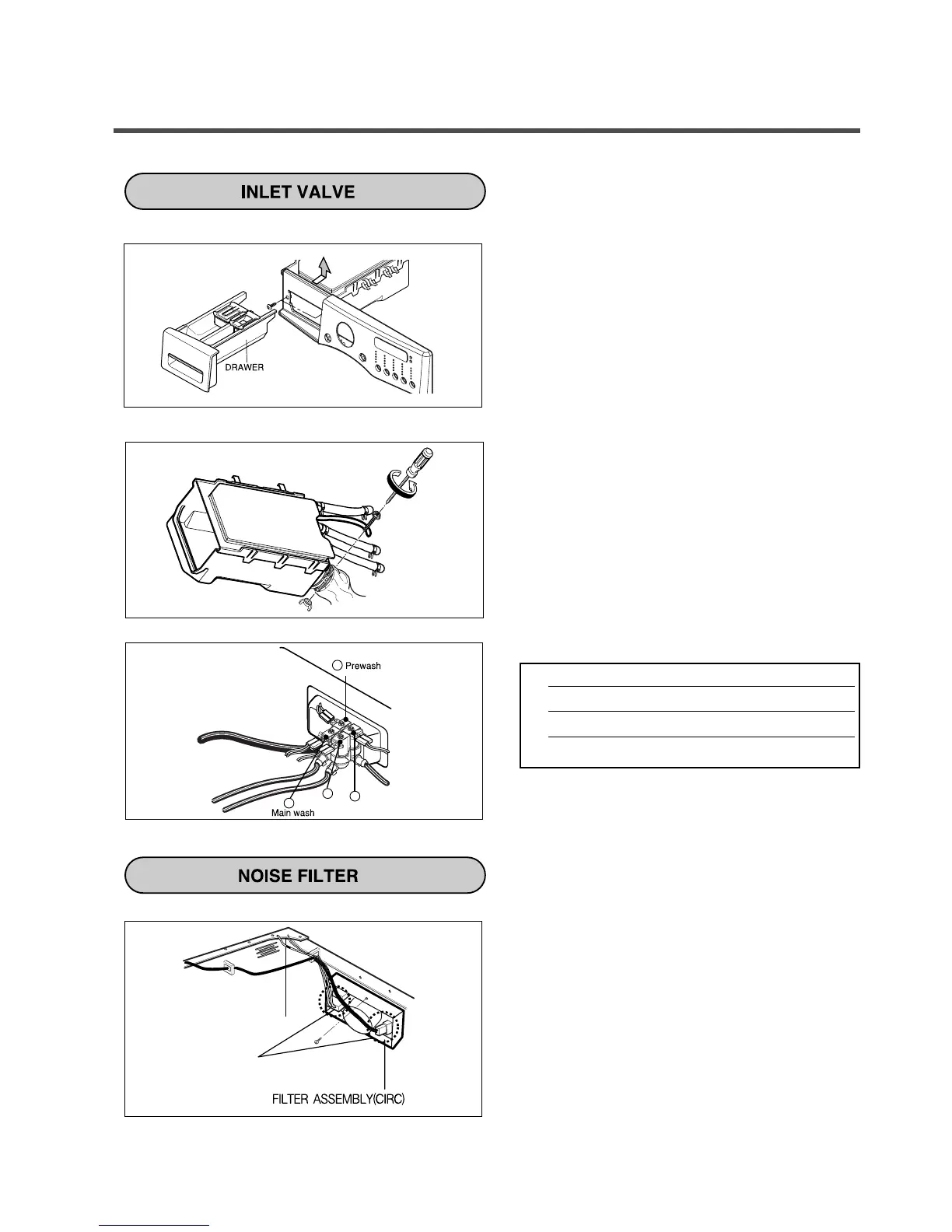

① Disassemble the top plate assembly.
② Pull out the drawer.
③ Push out the DISPENSER ASSEMBLY
after unscrew 2 screws.
① Unscrew the nut at the lower part of the
dispenser.
① Disassemble the 4 or 5 connectors from
the valves.
① Unscrew 1 screw from the top bracket.
② Disassemble 2 connectors.
① White Housing(BK-WH/BK)
② Red Housing(BK-VI/BK)
③ Blue Housing(BK-YL/BK)
④ Blue Housing(BK-GY/BK)
② Unscrew 2 or 4 screws from the back of
the cabinet.
To Next Page
