NO
Are the resistance of the Hall Sensor5~15k?

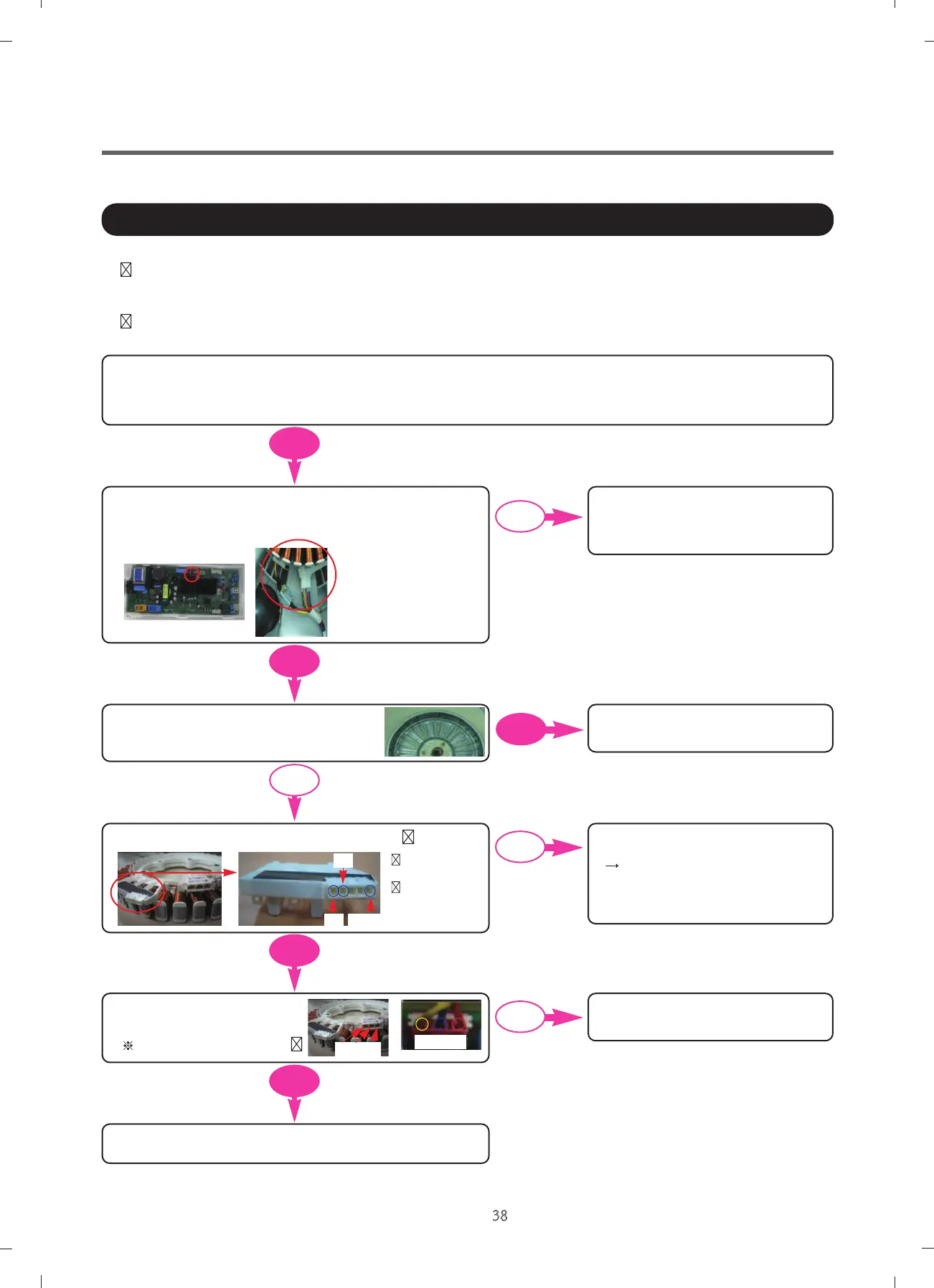

Motor Locked Error (LE)
[Pre Check]
Gentle wash cycles, such as Perm Press, Delicates, Hand Wash, and Wool/Silk should only be used for smaller loads.
Because these cycles are more gentle in tumbling and spinning, putting too much in the drum can register an issue
with the motor. Remove items, reset unit and test with a Rinse/Spin cycle.
Don’t replace the PCB, when the hall sensor is replaced.
Replace the PCB, when the LE is displayed after replacing the hall sensor.
Is the Connectorconnected correctly to
theMain PCBand the Motor?
Is the Harnessalright ?
YES
NO
YES
YES
YES
YES
NO
Disassemble the Rotor.
Is the Magnetof rotor crackedor broken?
Ha ~ Common
: 5 ~ 15 k
Hb ~ Common
: 5 ~ 15 k
Replace the Main PCB.
Press the Powerbutton & Start / Pausebutton.
Does theDrumstopwhen the start/pause button is pressed to start the cycle ?
Or Sometimes does the Drumrotateweakly(under 15rpm)?
Magnet
Ha
Hb
Common
Is the resistance the same
betweenStatorpoints?
V~U / U~W / W~V : 8~11
V U W
V U W
Reconnect or repair the Connector.
Or replace the Harness.
Replace the Rotor.
Replace the Hall Sensor.
Disassemble
hall sensorcarefully.
(Next page)
NO
Replace the Stator.
To Next Page
