LG F14A8RDS Series Service Manual

55
1

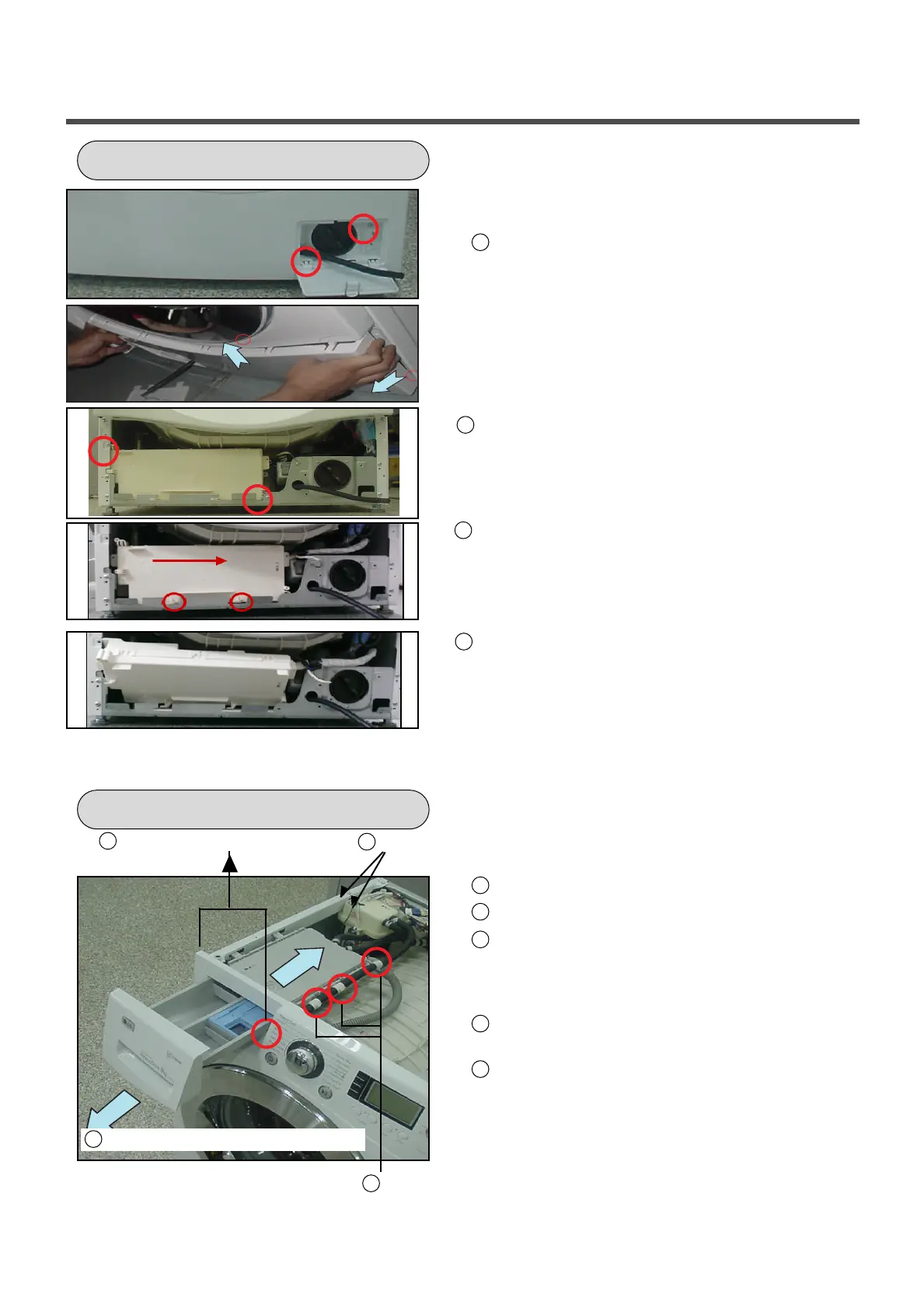

Disassembly lower cover assembly.
2
Two screws are unscrewed.
3
Pull the PWB assembly in direstion of red
arrow.
4
Disassembly PWB like the picture.
PWB ASSEMBLY(MAIN)
1
The plate assembly(Top) are disassembled.
3
Two screws are unscrewed.
3
Two screws are unscrewed.
2
Pull the drawer to arrow direction.
4
Clamp
4
Clamp
5
Cutting cable ties and the ventillation hose
are disassembly on the dispenser
5
Cutting cable ties and the ventillation hose
are disassembly on the dispenser
DISPENSER ASSEMBLY
2
Pull the drawer to arrow direction.
2
1
