31
YES
Is the resistance of the Thermistor out of range 44 ~
53 KΩ at 25°C? (Page 23)
Replace the Main PCB.
Is the Connector connected correctly to
the Main PCB and the Thermistor and the Heater?
Is the Harness alright ?
Reconnect or repair the Connector.
Or replace the Harness.
Replace the Thermistor.
YES
Replace the Heater.
YES
NO
Is the resistance of the Heater out of range 24.5 ~
28.5Ω (for Washing) or 42.5 ~ 49.5Ω (for Steam) ?
(Page 25)
[Note] Thermistor Spec
NO
NO

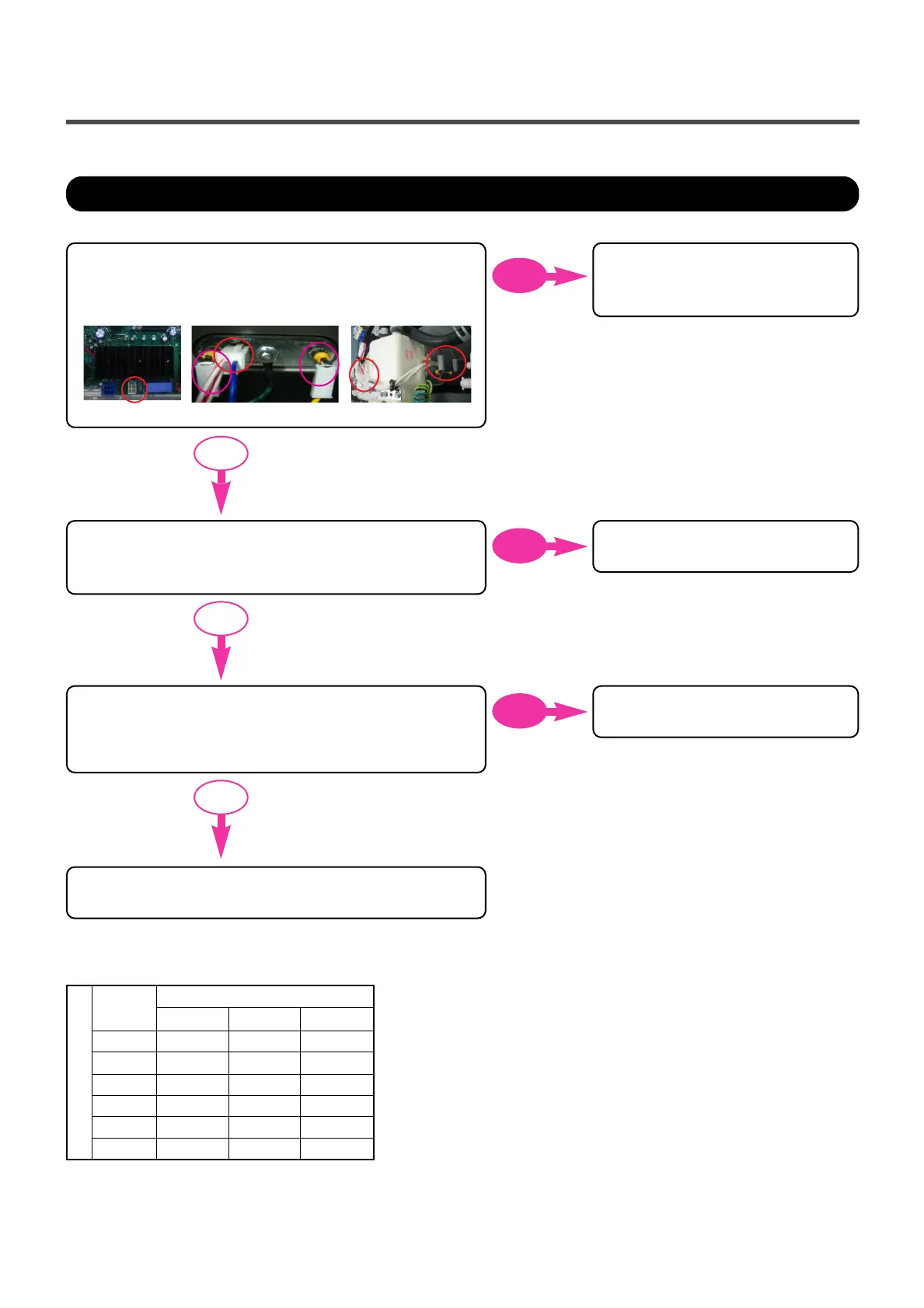

Thermistor (Heating) Error (tE)
S
P
E
C
Temp
30 °C
40 °C
60 °C
70 °C
95 °C
105 °C
Resistance (kΩ)
MIN
36.35 39.45 42.72
24.20 26.05 27.97
11.43 12.12 12.82
8.088 8.514 8.940
3.544 3.791 4.045
2.617 2.816 3.023
STD MAX
Heater for Washing Heater for Steam
To Next Page
