LG F14A8YD series Service Manual

52
1

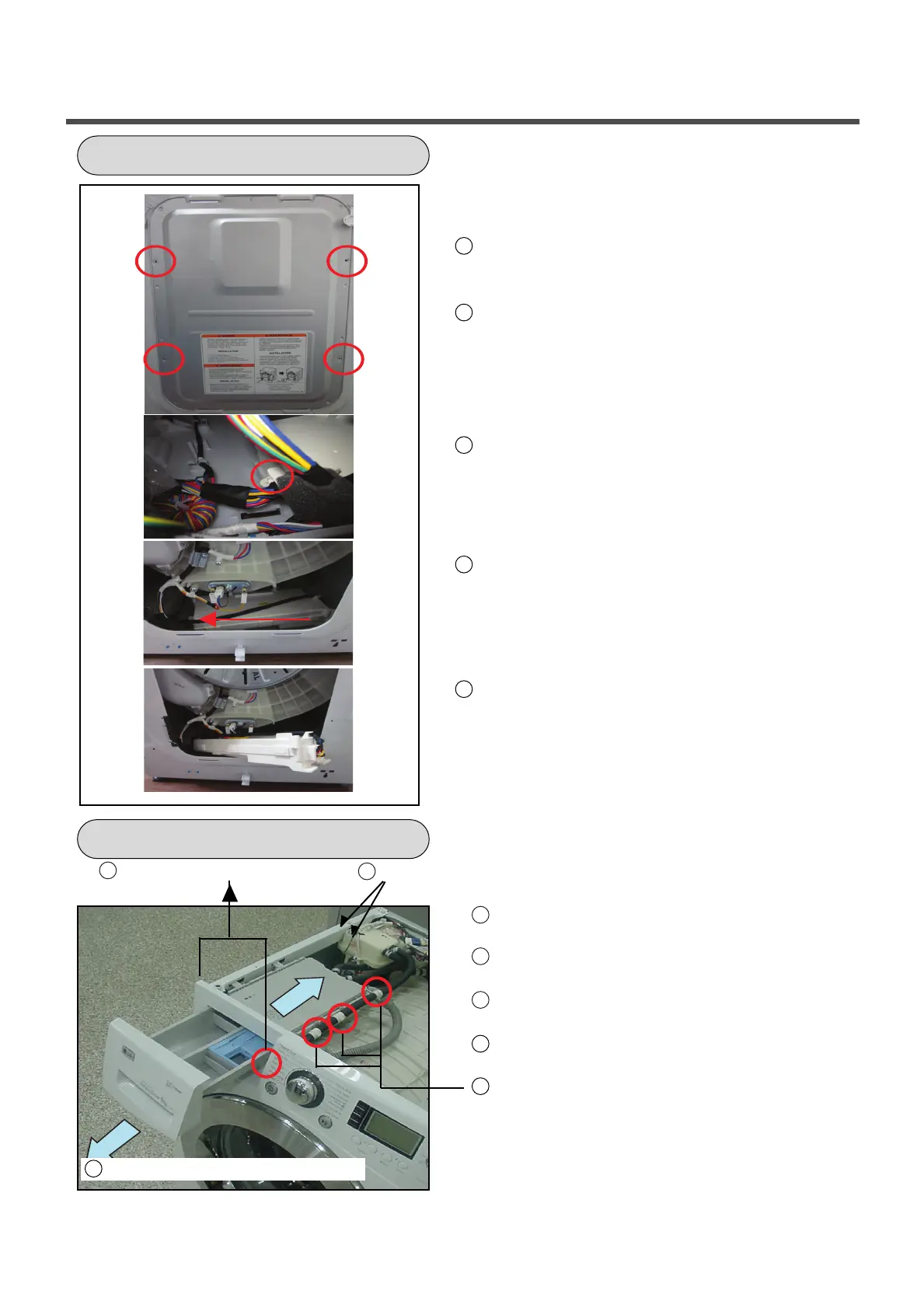

The plate assembly(Top) are disassembled.
3
Two screws are unscrewed.
3
Two screws are unscrewed.
2
Pull the drawer to arrow direction.
4
Clamp
4
Clamp
5
Cutting cable ties and the ventillation hose
are disassembly on the dispenser
DISPENSER ASSEMBLY
2
Pull the drawer to arrow direction.
1
Unscrew four screws.
2
Disassembly back cover assembly.
3
Unscrew the screw.
4
Pull the PWB assembly in direction of red
arrow.
5
Disassembly PWB like the picture.
PWB ASSEMBLY(MAIN)
