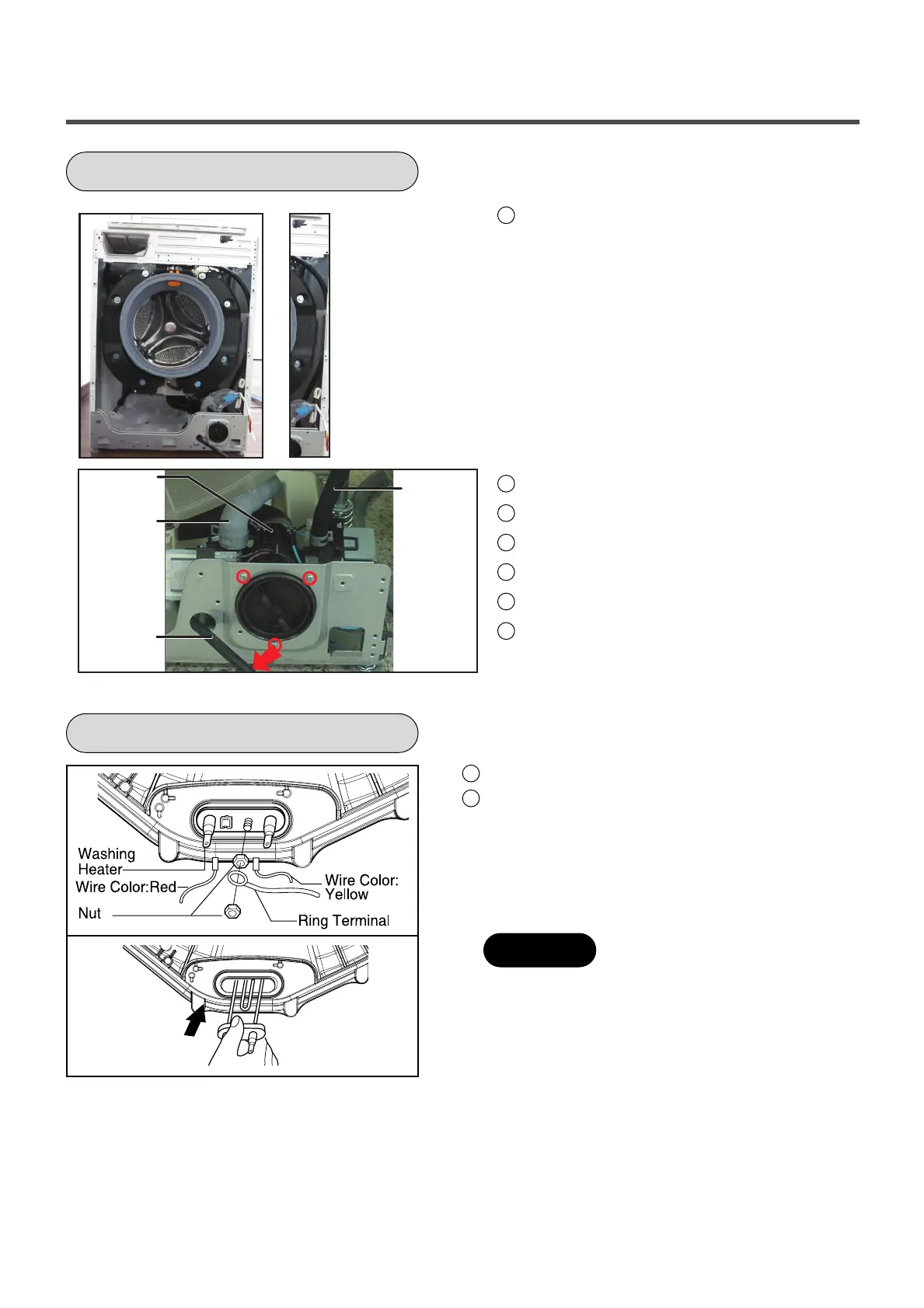

Loosen the nut.
2
Remove washing heater by pulling out.
When assembling the washing heater, insert
the heater to heater clip on the bottom of tub
and check the position of wire color.
HEATER
< Heater for Washing>
• Rating : 230V 2000W
• Resistant : 24.5~28.5Ω
CAUTION
1
Disassembly Top Plate, Control Panel
Assembly, Drawer Panel Assembly,
Cabinet Cover Assembly, Lower Cover
Assembly.
2
Remove pump outlet hose.
3
Remove tub pump bellows.
4
Remove cap (remaining Hose).
5
Disconnect the wiring.
6
Unscrew three screws from the cabinet.
7
Remove the pump to arrow direction.
• Ration : 220V 50 Hz
• Resistant : 162~176Ω
PUMP
Bellows
Pump
Hose
Circulation
Hose
Remaining
Hose
To Next Page
