LG FFH-717A - Operating Elements Overview; Front Panel Controls; Rear Panel Connections

5
30
31
32
34 33
OPTION

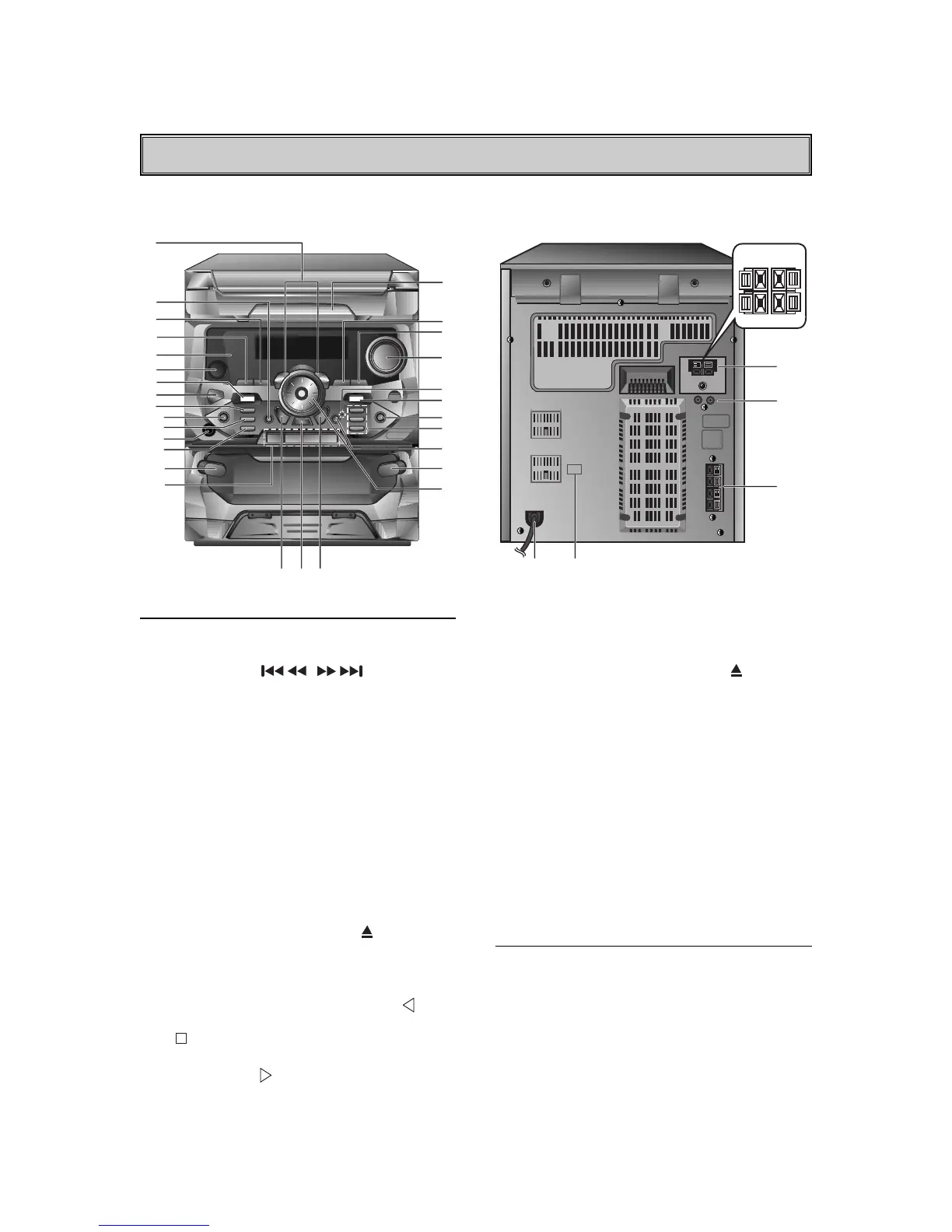

OPERATING ELEMENTS
FRONT VIEW
1. TUNING DOWN/UP(TUNER), TAPE REWIND /
FAST FORWARD(TAPE), TRACK SKIP /
SEARCH(CD) ( / ) buttons
2. RECORD / RECORD PAUSE buttons
3. MEMORY / PROGRAM button
4. MODE / RIF button
5. REMOTE SENSOR
6. MDSS indicator
7. MDSS button
8. POWER button
9. DEMOSTRATION button (DEMO)
PLAY MODE button (OPTIONAL)
10. UBB (Ultra Bass Booster) / Hi-TONE button
11. NORMAL DUBBING / CD SYNCHRO
RECORDING button
12. HEADPHONE socket (PHONES)
13. HI-SPEED DUBBING button
14. TAPE DECK 1 EJECT position ( EJECT)
15. FUNCTION SELECT buttons (TUNER BAND,
CD, TAPE 1/2, AUX)
16. PRESET DOWN / BACKWARD PLAY
(OPTIONAL) button (PRESET DOWN / )
17. TAPE STOP / CD STOP / CLEAR button
( / CLEAR)
18. PRESET UP / FORWARD PLAY button
(PRESET UP / )
19. JOG DIAL
¥ PRESET DOWN/UP (TUNER)
¥ ADJUST DOWN/UP (CLOCK/TIMER)
¥ SKIP DOWN/UP (CD TRACK)
20. TAPE DECK 2 EJECT POSITION ( EJECT)
21. CD PAUSE / SET(CLOCK / TIMER) / COUNTER
RESET (TAPE) button (CD II / SET / COUNTER
RESET) / RDS (TUNER) : OPTIONAL
22. DISC DIRECT PLAY buttons (DISC1, DISC2,
DISC3)
23. DISC SKIP button
24. CD OPEN/CLOSE button
25. CD PAUSE / SET indicator
26. VOLUME knob
27. TIMER button
28. CLOCK button
29. CD DOOR
BACK VIEW
30. ANTENNA (AERIAL) terminal
31. AUXILIARY / PHONO (OPTIONAL) INPUT
SOCKET
32. SPEAKER terminal
33. VOLTAGE SELECTOR (OPTIONAL)
34. POWER CORD
1
2
3
4
5
6
14
15
16
8
9
10
7
11
12
13
17 18
20
19
22
23
24
26
27
29
28
25
21
FRONT VIEW BACK VIEW
