LG FFH-717A - Function Display and Remote; Function Display Indicators; Remote Control Functions

6
POWER
SLEEP
TAPE 1
TAPE 2
REC II
D.SKIP
REPEAT
EQ.PATT
DIS.MODE
MUTE
AUX
TUNER/BAND
PRESET
VOLUME
1
2
3
4
5
6
7
8
9
10
11
OPTIONAL

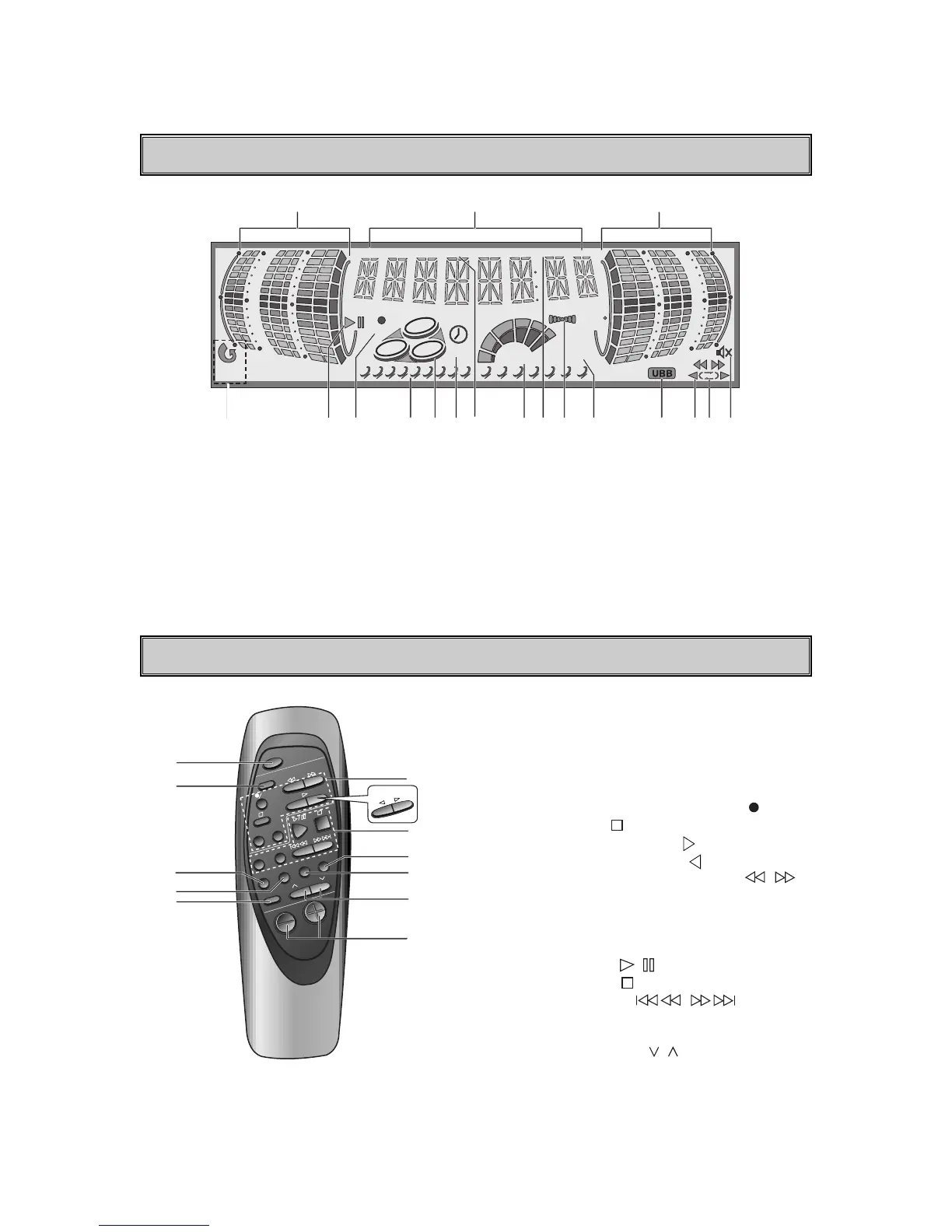

FUNCTION DISPLAY
REMOTE CONTROL
1. LEVEL indicator
2. FUNCTION, VOLUME LEVEL, CLOCK,
FREQUENCY, TAPE COUNTER, CD PLAYING
TIME display
3. MUTE indicator
4. PLAY MODE indicator
(Use only auto reverse deck)
5. TAPE DIRECTION indicator
6. UBB indicator
7. CD MUSIC CALENDAR OVER indicator
8. FM STEREO indicator
9. FM MONO indicator
10. VOLUME indicator
11. RDS function indicator (OPTIONAL)
12. TIMER indicator
13. DISC NO. indicator
14. CD MUSIC CALENDAR
15. RECORD indicator
16. PLAY / PAUSE indicator
17. CD REPEAT indicator
1. POWER button
2. SLEEP button
3. DISPLAY MODE button
4. EQ PATTERN button
5. MUTE button
6. TAPE FUNCTIONS
¥ RECORD / RECORD PAUSE button( /REC II)
¥ STOP button( )
¥ FORWARD PLAY button ( )
¥ BACKWARD PLAY button ( ) : OPTIONAL
¥ REWIND / FAST FORWARD button ( / )
¥ TAPE 1 / TAPE 2 button
7. CD FUNCTIONS
¥ DISK SKIP (D.SKIP) button
¥ REPEAT button
¥ PLAY/PAUSE ( / ) button
¥ STOP/CLEAR ( ) button
¥ SKIP / SEARCH ( / )button
8. TUNER / BAND button
9. AUX button
10. PRESET DOWN/UP ( / ) button
11. VOLUME CONTROL (+/-) buttons
