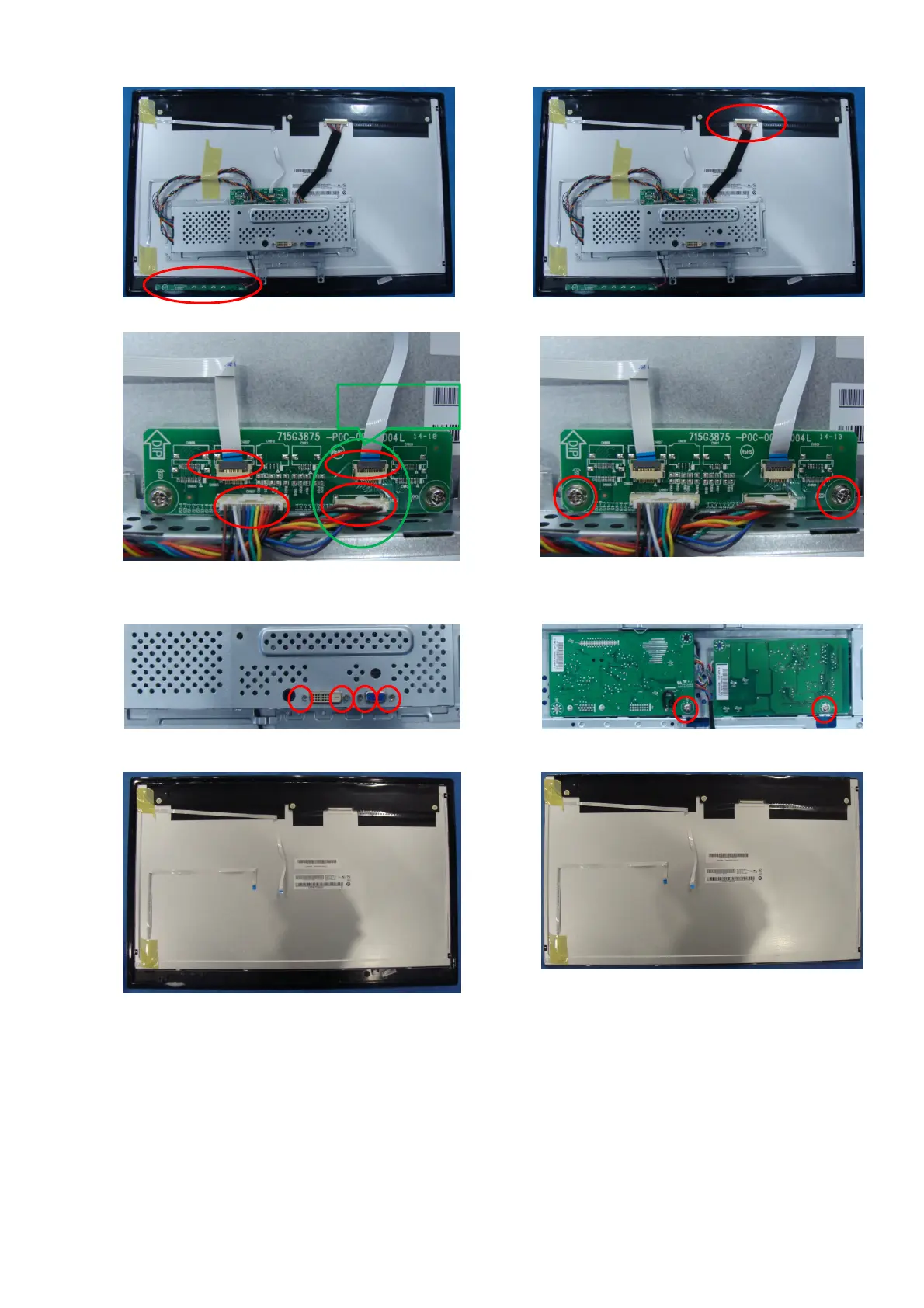

#7
Pull the key board out of bezel.
#8
Disassembly the LVDS cable.
#9
Disassemble the FFC cable and converter board
to converter board cables.
#10
Unscrew the 2 screws on the converter board.
#11
Unscrew the 4 screws on the main board.
#12
Remove the main board and the power board.
#13
Removethebezel.
#14
Thepanel.
CMO PANEL
To Next Page
