8

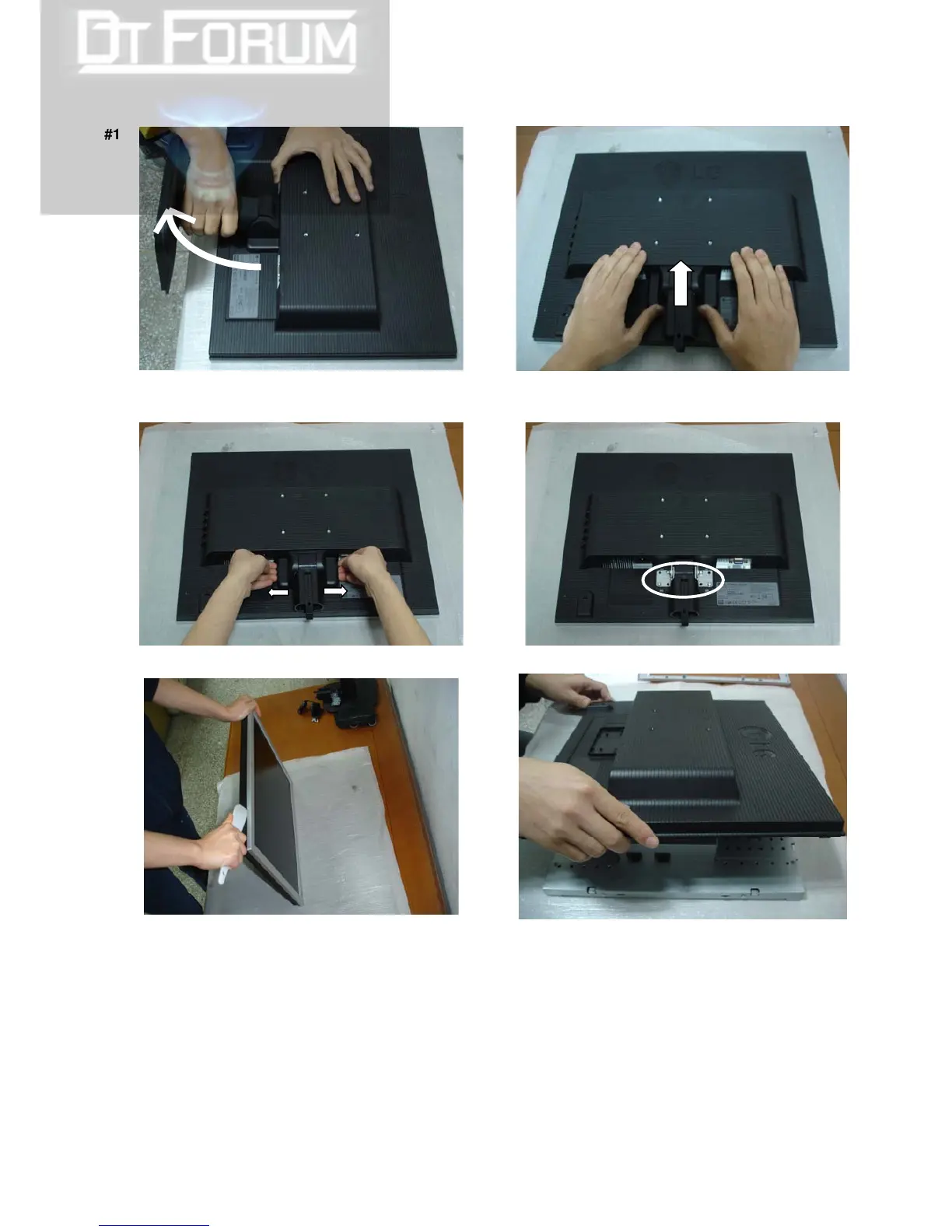

DISASSEMBLY-Set
#1
Hold the head & stand base and then twist Stand
until "Click”. After then pull down the stand.
#2
Push the hinge cover as arrow direction.
#3
Disassemble the hinge cover as arrow direction.
#4
Remove the four screws.
#5
Disassemble the bezel from the bottom with a thin
card. There are two clips on the button.
#6
Disassembly Back Cover.
