A15
Connecting to External Devices
Audio
RL
PrPb
Y

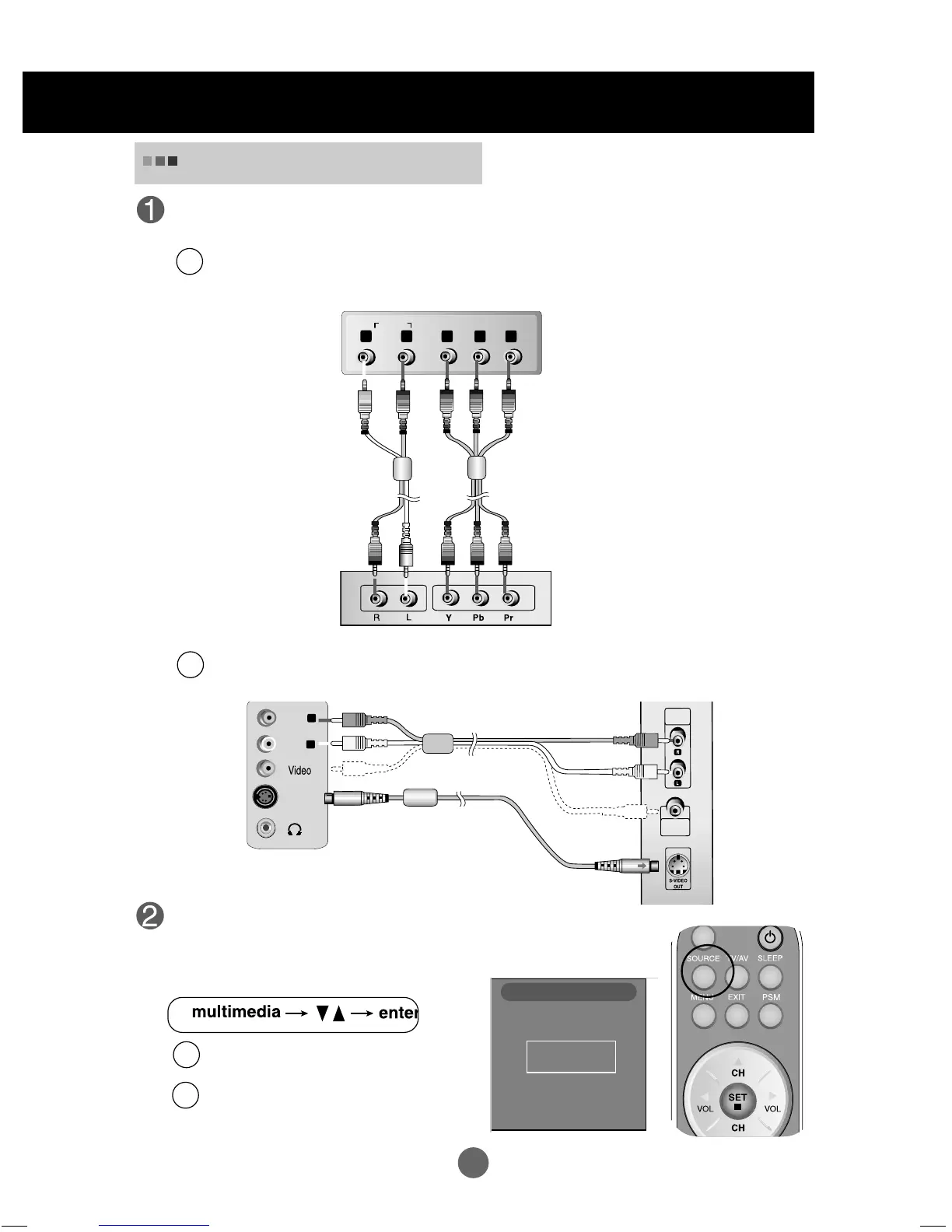

When watching DVD
When connecting with an Comonent cable.
•
Connect the input terminal with a proper color match.
A
Back of the Product
DVD
Connect the video/audio cable as shown in the below figure and then, connect the power
cord (See page A12).
When connecting with an S-Video cable.
•
Connect to the S-Video input terminal to watch high image quality movies.
Audio
R
Audio
L
S-Video
AUDIO
OUT
VIDEO
OUT
Red
White
RCA Cable
(Not included)
S-Video Cable
(Not included)
DVD
Side of the Product
B
R
W
When connecting with a Component cable.
•
Select Component
When connecting with a S-Video cable.
•
Select S-Video
Select an input signal.
Press the SOURCE button on the remote controller to select the input
signal. Or, press the SOURCE button at the front side of the monitor.
B
A
INPUT SELECT
TV
AV
S-Video
Component
RGB
DVI
Audio Cable
(optional)
Video Cable
(optional)
Red
White
Red
Blue
Green
To Next Page
