A14
ENGLISH
Audio
R
Audio
L
S-Video
AUDIO
OUT
VIDEO
OUT
When watching VCR
When connecting with an RCA cable.
•

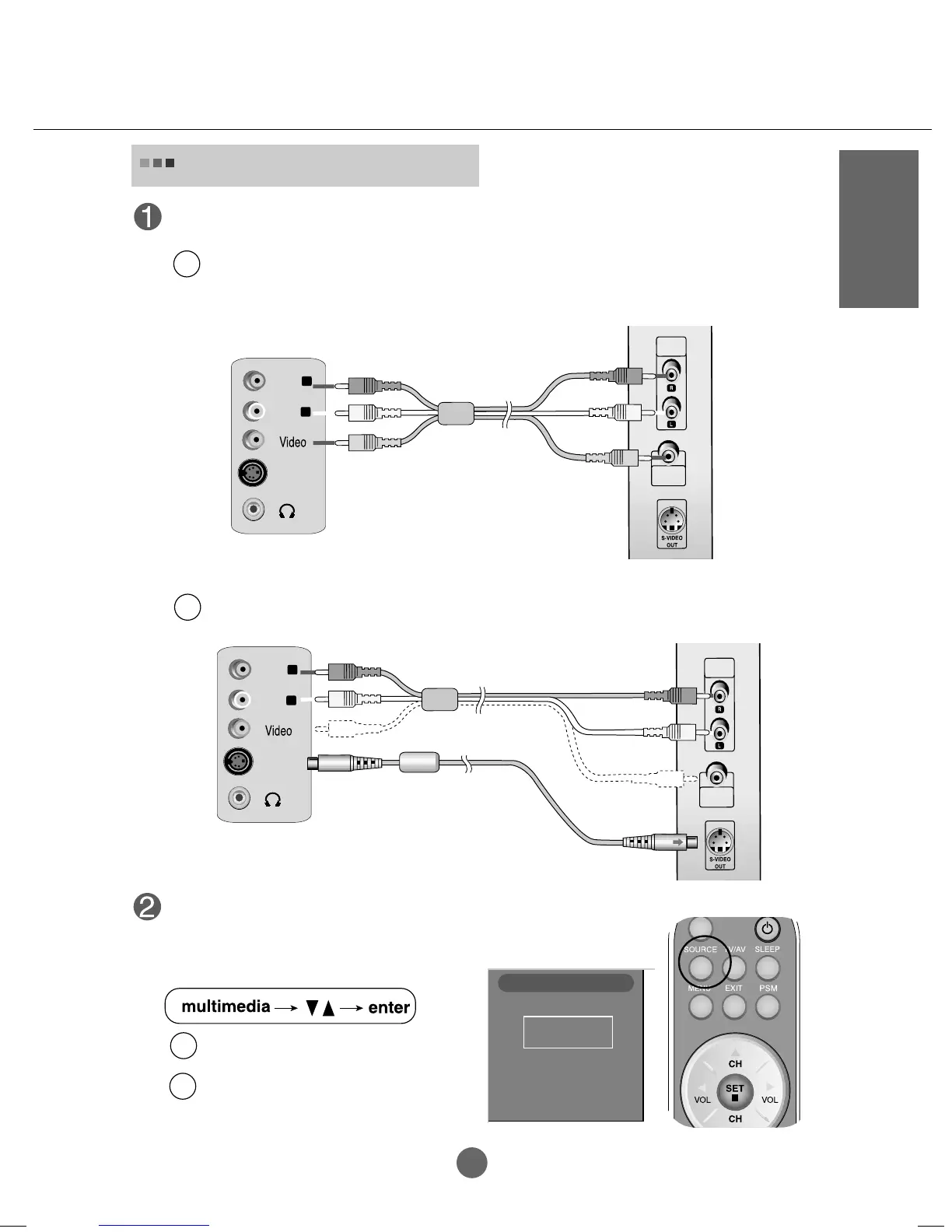

Connect the input terminal with a proper color match. (Video – Yellow, Sound (left) –
White, Sound (right) – Red)
A
Red
White
Yellow
RCA Cable
(Not included)
R
W
Y
Side of the Product
VCR
Connect the video cable as shown in the below figure and then connect the power cord
(See page A12).
When connecting with an S-Video cable.
•
Connect to the S-Video input terminal to watch high image quality movies.
Audio
R
Audio
L
S-Video
AUDIO
OUT
VIDEO
OUT
Red
White
RCA Cable
(Not included)
S-Video Cable
(Not included)
VCR
Side of the Product
B
R
W
When connecting with a RCA cable.
•
Select AV
When connecting with a S-Video cable.
•
Select S-Video
Select an input signal.
Press the SOURCE button on the remote controller to select the input
signal. Or, press the SOURCE button at the front side of the monitor.
B
A
INPUT SELECT
TV
AV
S-Video
Component
RGB
DVI
To Next Page
