Chapter 2. SPECIFICATIONS
2 - 5

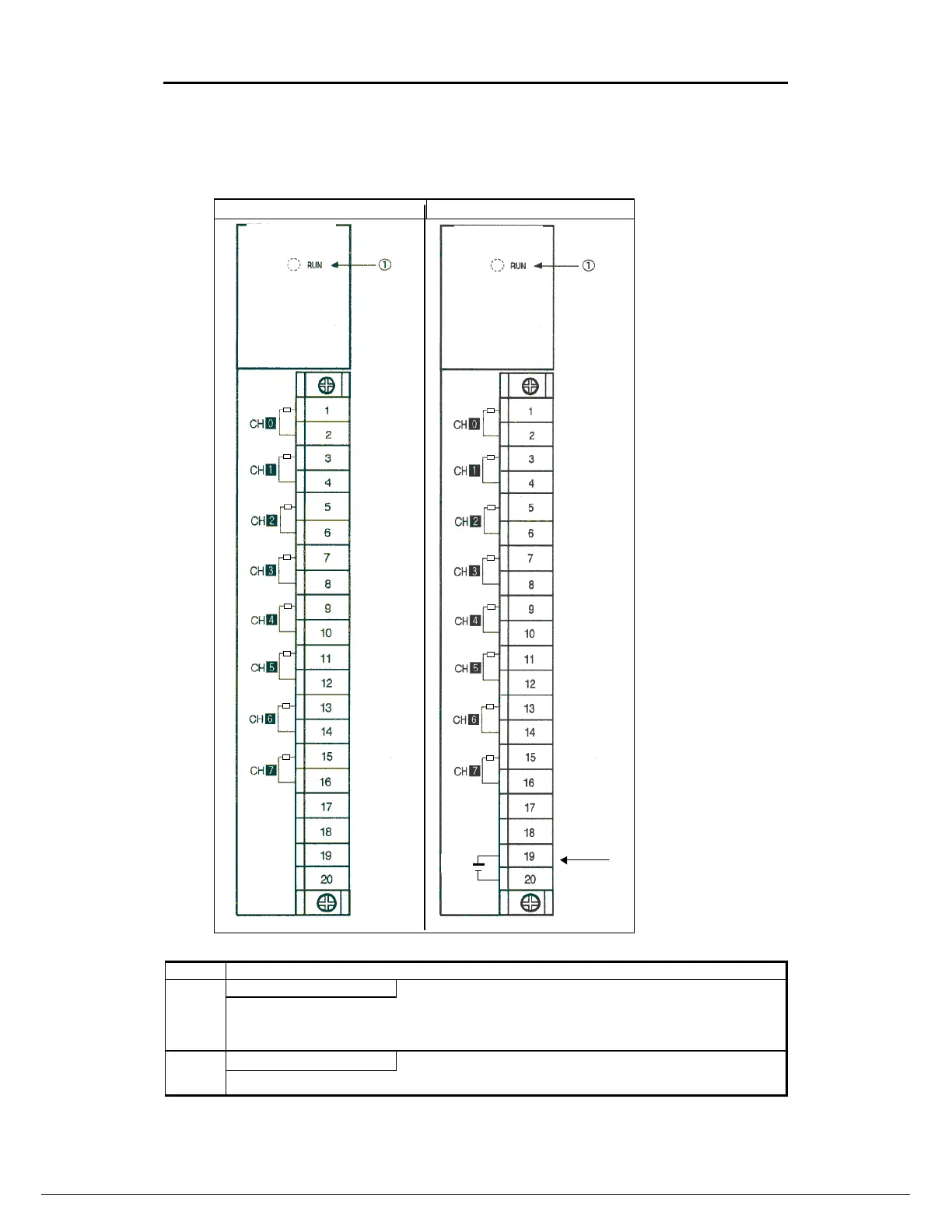

2) G3F-DA3V/G3F-DA3I
G3F -DA3V
G3F -DA3I
No Descriptions
RUN LED
①
Indicates the operating condition of the D/A conversion module
* On: Normal operation
* Off : 5 VDC power off or D/A conversion module fault
External input terminal block ②
External voltage 24VDC input terminal (No.19 ~ 20) : only G3F-DA3I
G3F-DA3V
G3F-DA3I
DC24V
②
