Chapter 5. GM PROGRAMMING
5 - 4
5.2 Programming for Displaying D/A Conversions which is Set by Digital Switch

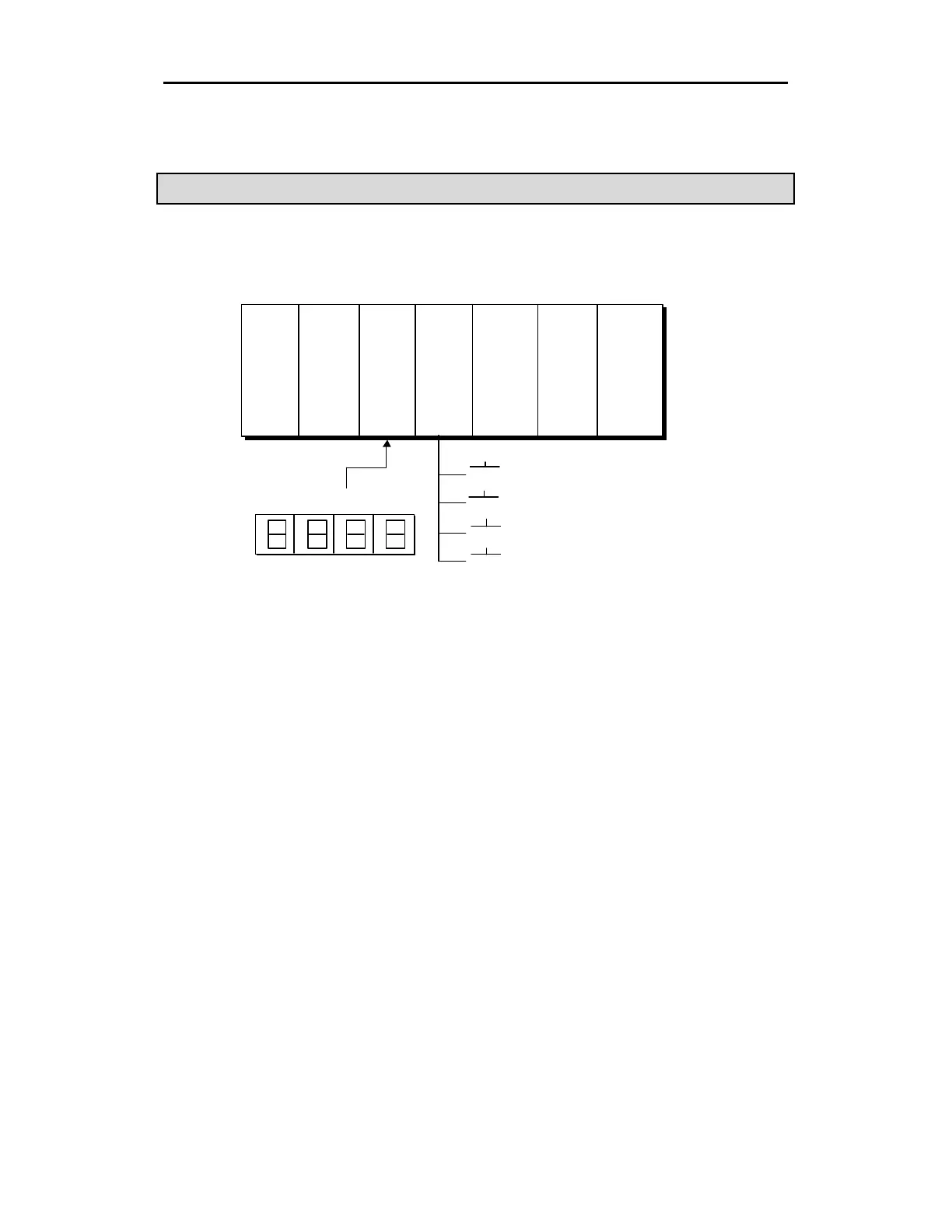

1) System Configuration
2) Initial Settings
(1) Enabled channel : channel 0, 1
3) Descriptions of the Program
(1) %I0.1.0 turning On leads to write the digital value to D/A conversion module.
(2) %I0.1.1 turning On leads to output of the values by digital switch on channel 0 of D/A module.
(3) %I0.1.2 turning On leads to output on channel 1.
(4) %I0.1.3 turning On leads to initialization of digital input value to "0" on channel 0 and channel 1.
о о
(%I0.1.0)
о о
(%I0.1.1)
о о
(%I0.1.2)
о о
(%I0.1.3)
(%I0.0.0~%I0.0.15)
GM4 –
PA1A
GM4 –
CPUA
G4I –
D22A
G4I –
D22A
G4F –
DA3I
BCD digital switch
Initial Setting of the D/A Conversion module
Input the digital value of channel 0
Input the digital value of channel 1
Input the digital value “0” of channel 0 and 1
