3
2

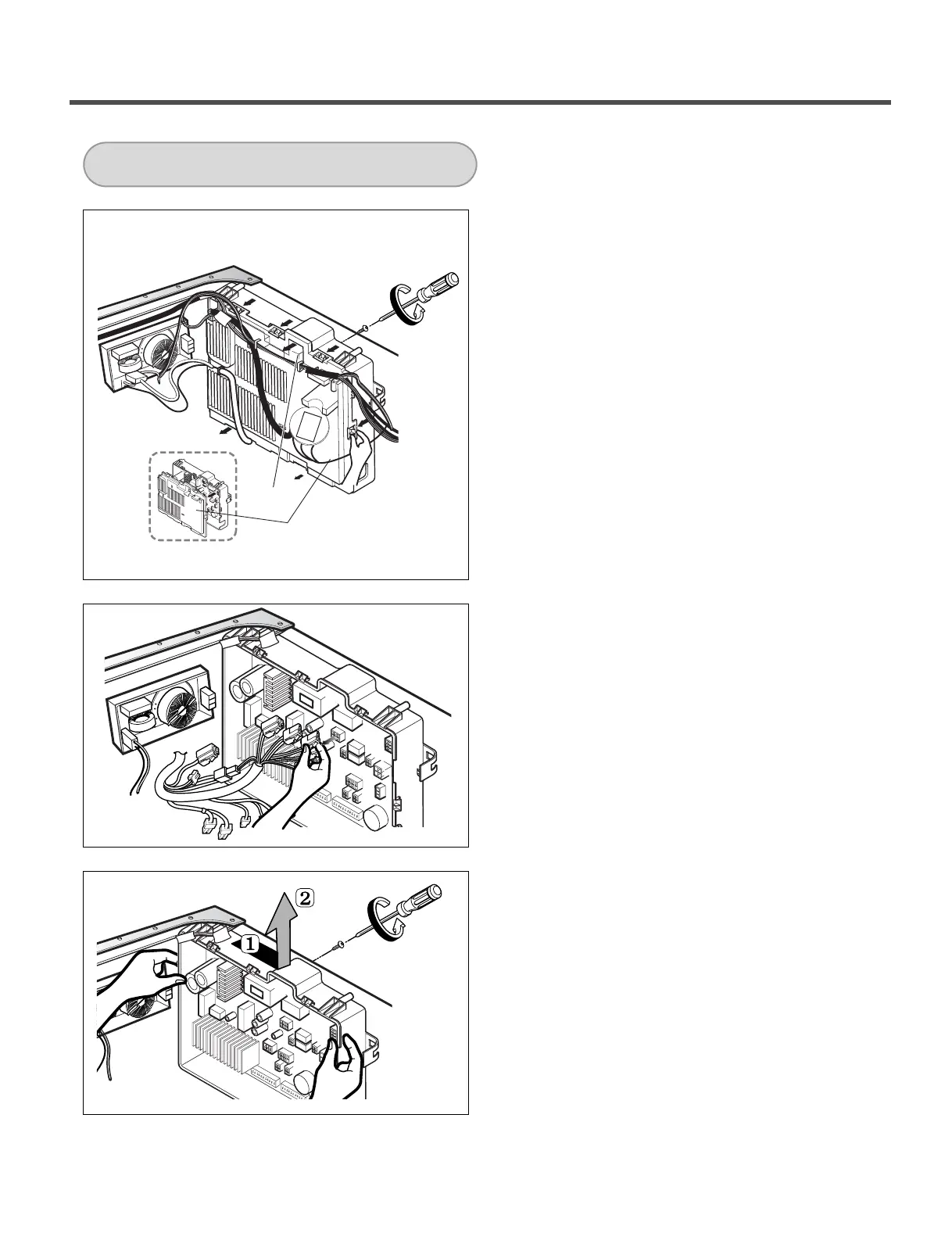

1. Disassemble the CONTROL P
ANEL ASSEMBL
Y
(refer to page 29).
2. Disassemble the
TOP PLA
TE
ASSEMBL
Y
(refer to page 30).
3. Unscrew a screw on PRESSURE SWITCH
ASSEMBL
Y
4. Remove all wire from hooks.
5. Remove the Protective Cover
.
6. Disconnect the connectors.
7. Unscrew 1 screw on the back.
8. Disassemble the MAIN PWB ASSEMBL
Y
.
CONNECTOR
PROTECT COVER
MAINPWBASSEMBLY
31
33
