LG GCW1069QS Service Manual

33

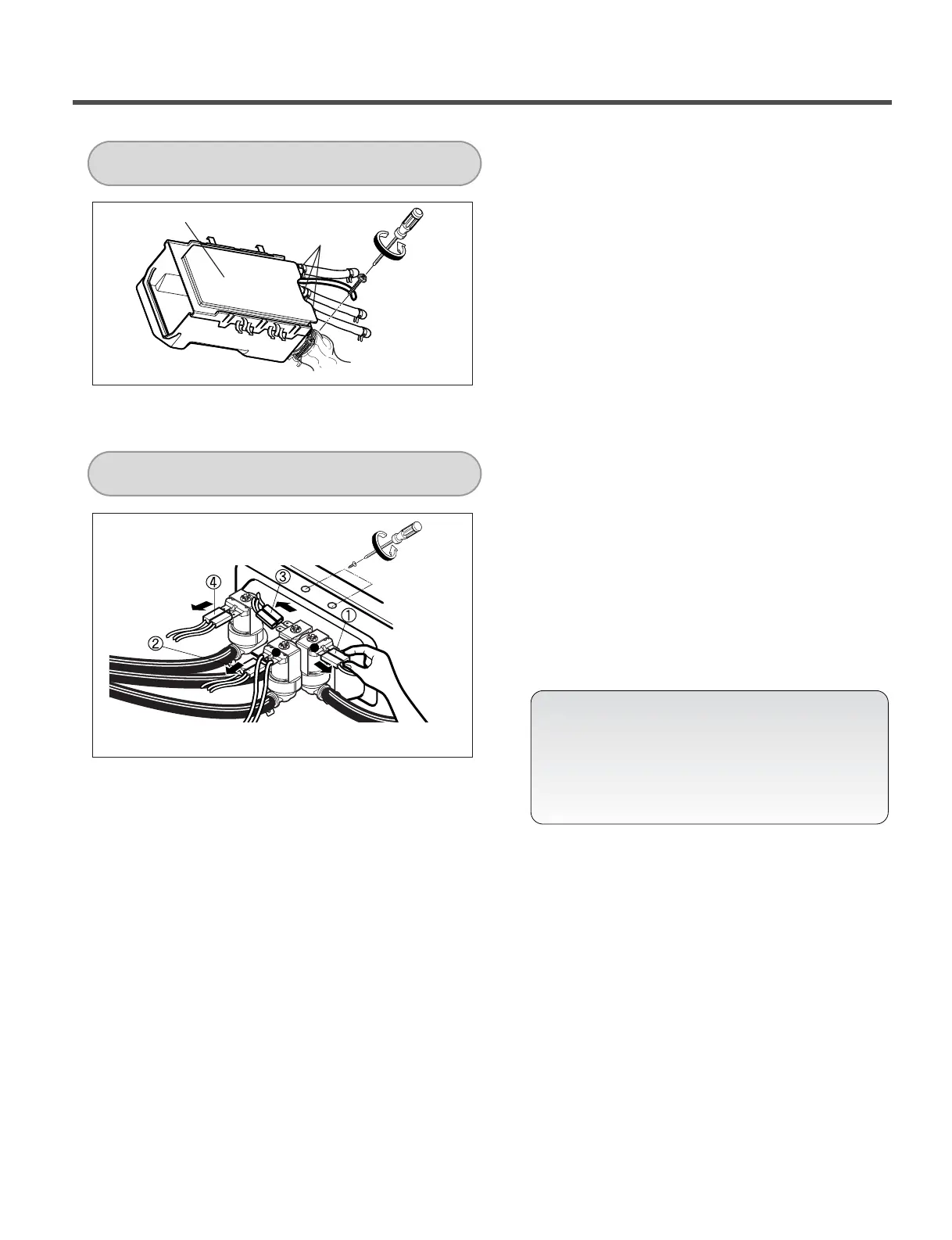

1. Disassemble the CONTROL PANEL ASSEMBLY
(refer to page 29).
2. Disassemble the
TOP PLATE ASSEMBLY
(refer to page 30).
3. Disassemble the clamps and hoses.
4.
Disassemble the bellows at the lower side of DISPENSER
1. Disassemble the CONTROL PANEL ASSEMBLY
(refer to page 29).
2. Disassemble the
TOP PLATE ASSEMBLY
(refer to page 30).
3.
Disassemble the 4 connectors from the VALVES.
4. Disassemble the clamps and hoses.
5. Unscrew the 2 screws in the back.
Connector Color
①①
Blue Housing (OR-BK)
②②
White Housing (WH-BK)
③③
Blue Housing (GY-BK)
④④
Red Housing (BL-BK)
DISPENSER ASSEMBLY
Clamp
DISPENSERASSEMBLY
INLETVALVEASSEMBLY
