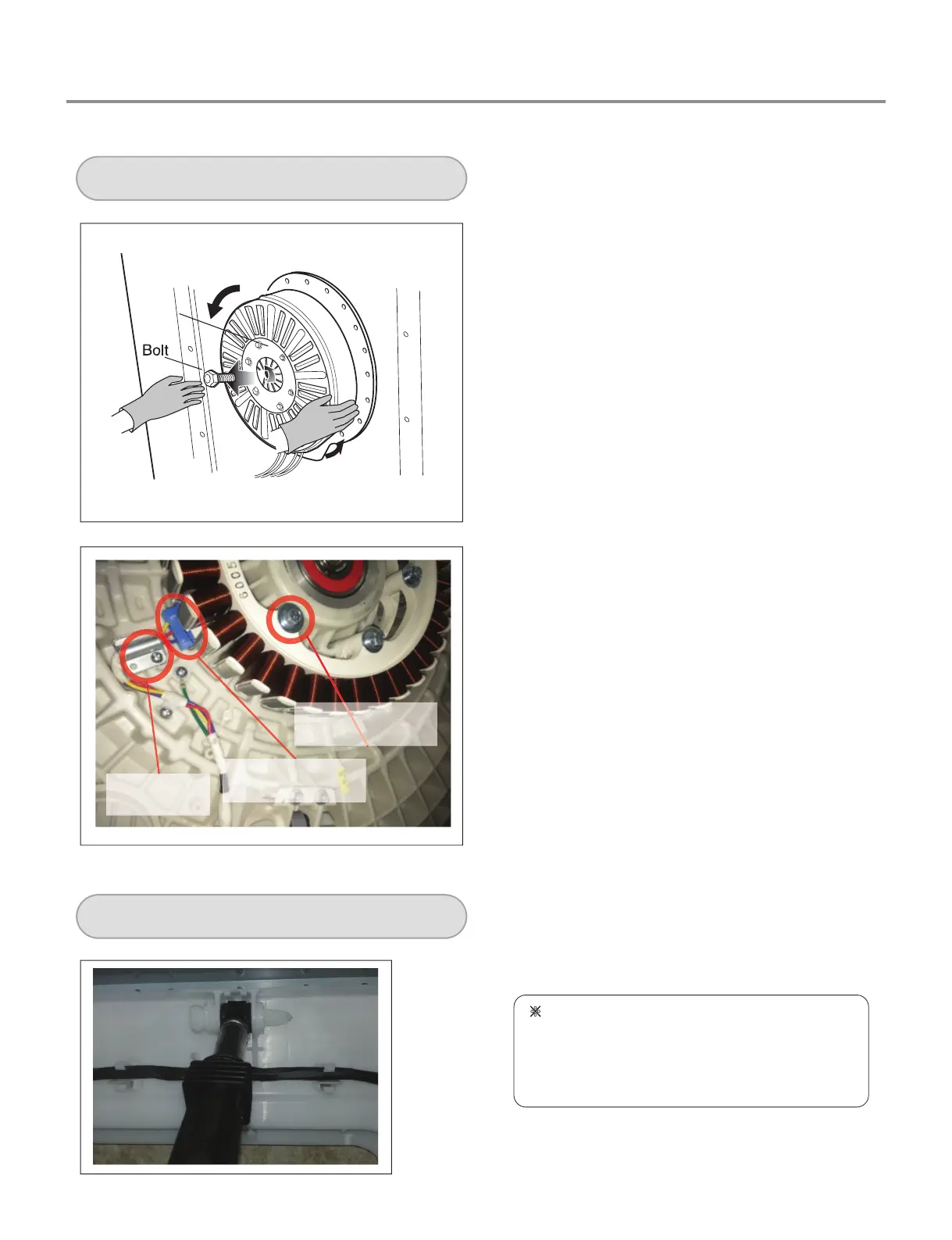

ROTOR
MOTOR ASSEMBLY
DAMPER
1.
Disassemble the BACK COVER.
2.
Remove the bolt.
3.
Pull out the ROTOR.
4.
Unscrew a screw from the bracket.
5.
Remove the 6 bolts on the stator.
6.
Unplug the connector from the STATOR.
1.
Disassemble the damper hinges from the tub and base.
NOTE
When replacing dampers, replace them as a set
rather than individually.
There are several iterations of dampers available.
Be sure all four in the set are the same class.
6WDWRUEROWV
&RQQHFWRU
%UDFNHW
