22
INSTALLATION
NOTE
The left top hinge, right hinge cap
and left hinge cover are provided for
reversing doors.
14

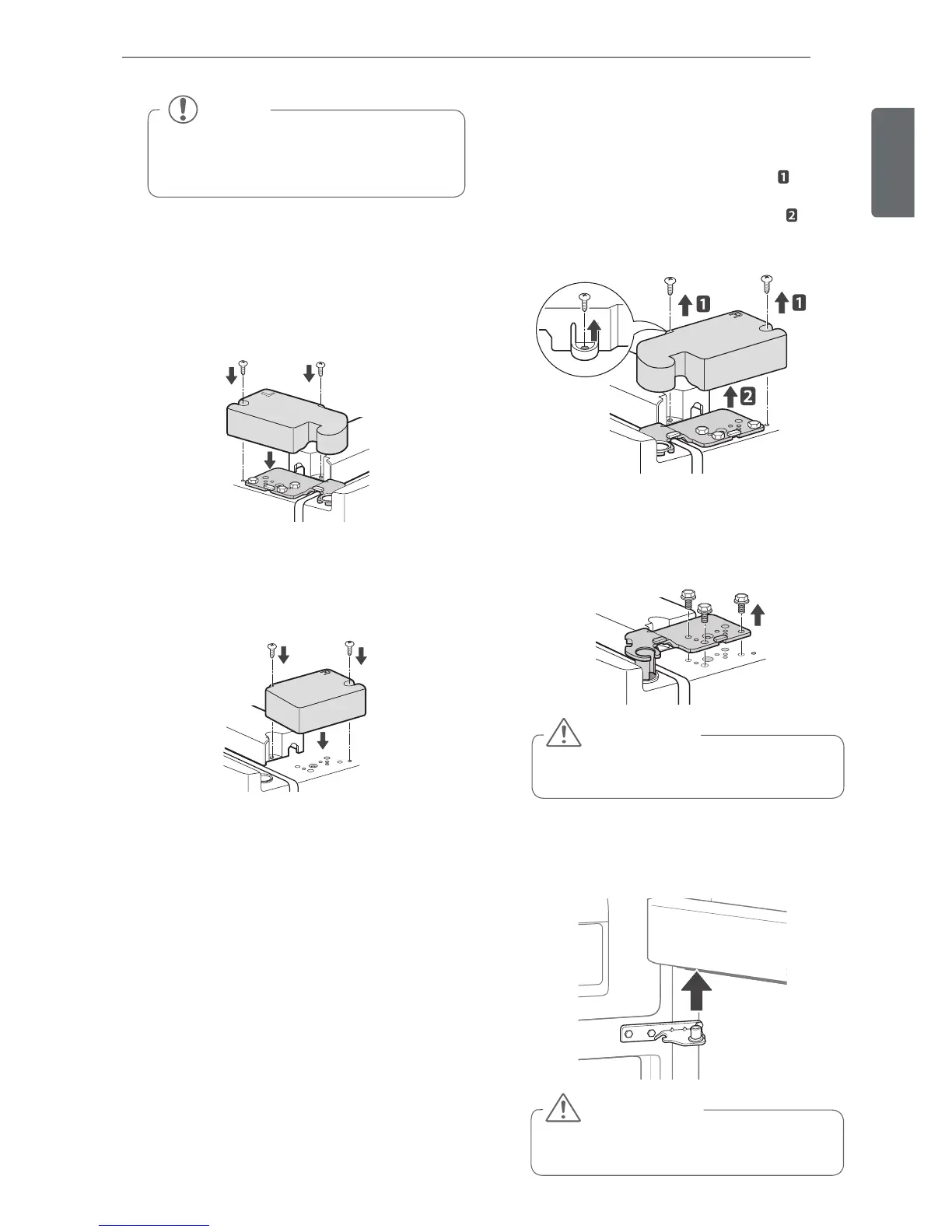

Line up the left top hinge with the holes in
the top of the refrigerator. Use the three
bolts to replace the hinge.
Assemble the left hinge cover with the
two screws.
15
Assemble the right hinge cap with the two
screws.
Reversing the Doors
(On Freezer Swing Models)
1
Remove the top hinge cover screws .
Lift the hook (not visible), located at the
bottom of the front side of the cover
,
with a ๎at-head screwdriver.
2
Using a 10mm or 13/32 in. socket
wrench, remove the three bolts and lift o๎
the top hinge. Set parts aside.
WARNING
When lifting the hinge, be careful that
the door does not fall forward.
3
Lift the door from the middle hinge pin and
remove the door.
WARNING
Place the door, inside facing up, on a
non-scratching surface.
ENGLISH
