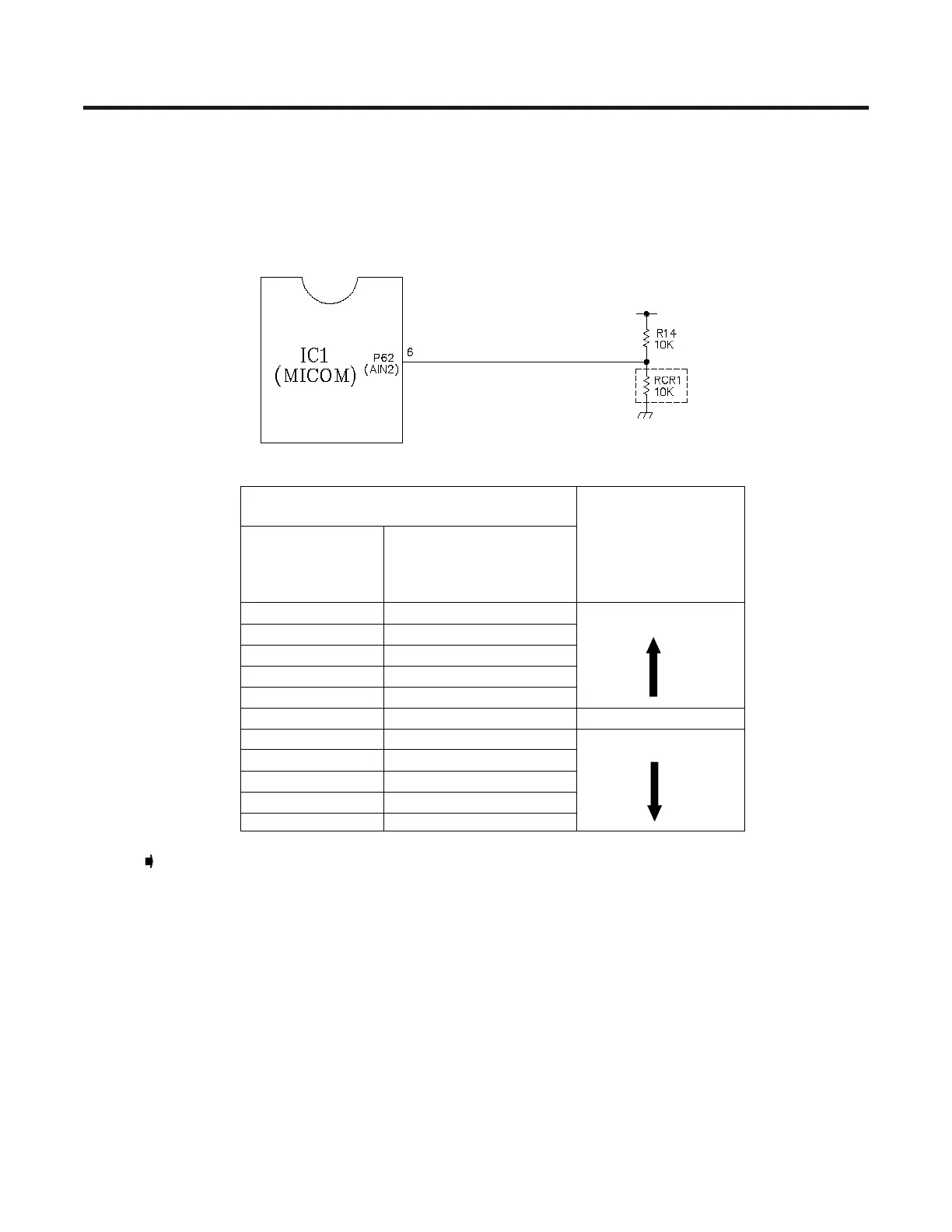

7-2-6 TEMPERATURE COMPENSATION & OVERCOOLING/UNDERCOOLING
COMPENSATION CIRCUIT
1. Refrigerator Temperature Compensation
Refrigerator
Resistance
(RCR1)
Temperature
Compensation
°F (°C)
Remark
180 KW
41 (+5.0)
56 KW
39.2 (+4.0)
33 KW
37.4 (+3.0)
18 KW
35.6 (+2.0)
12 KW
35.24 (+1.8)
Compensation by raising
the temperature
10 KW
32 ( 0 )
Standard Temperature
8.2 KW
30.2 ( -1.0 )
5.6 KW
28.4 ( -2.0 )
3.3 KW
26.6 ( -3.0 )
2 KW
24.8 ( -4.0 )
470 KW
23 ( -5.0 )
Compensation by
lowering the temperature
Table of Temperature Compensation by adjusting the resistance (Difference with the current
temperature).
Example. If the refrigerator compensation resistance (RCR1) is changed from 10 K (the current
resistance) to 18 K (the adjustment resistance) of the refrigerator rises 33.8°F (+1°C).
