7.2.7 KEY BUTTON INPUT & DISPLAY LIGHT ON CIRCUIT

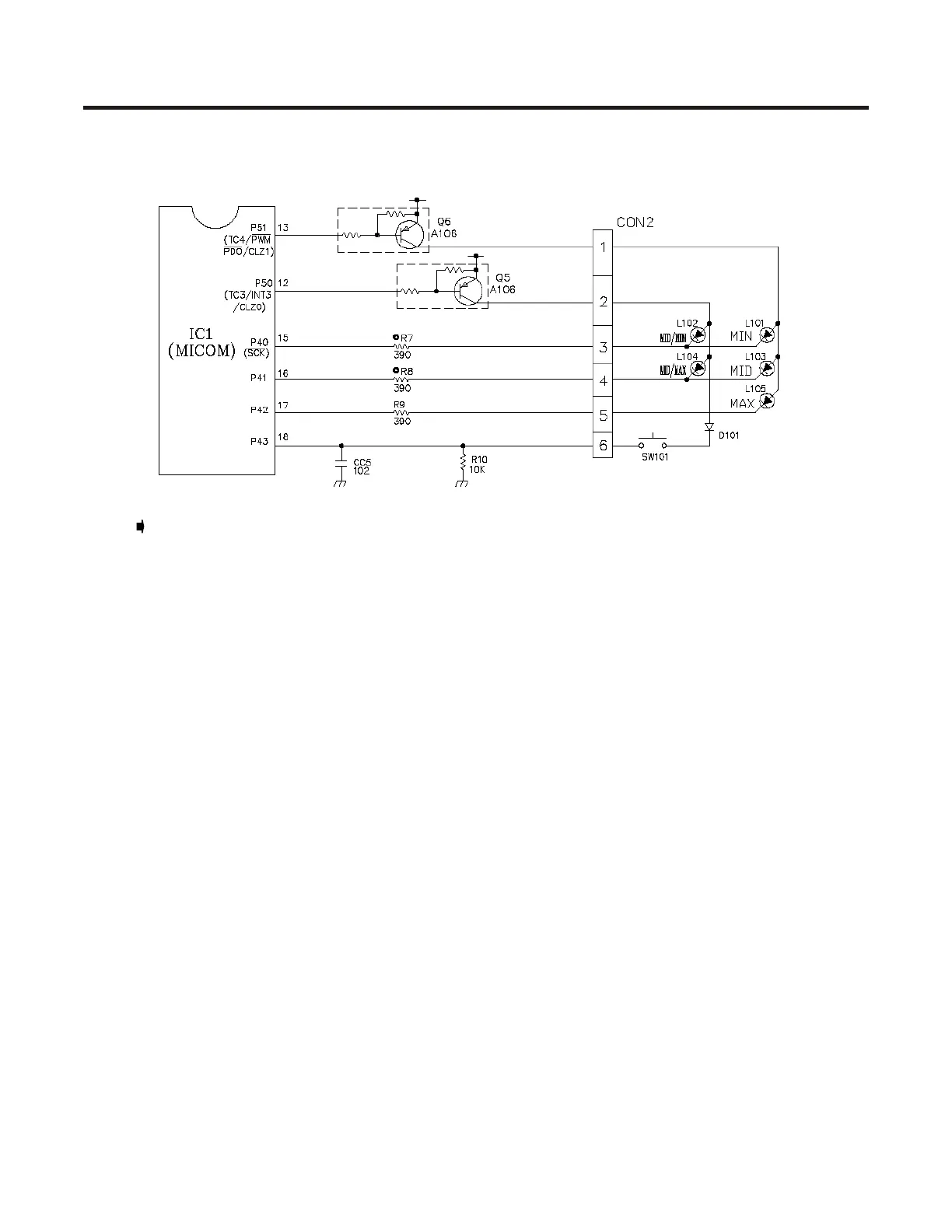

The circuit shown above is to determine whether a function control key on the operation display is
pushed and to turn on the corresponding function indication LED. The drive type is the scan type.
