LG GR-M562Y*X/M602Y*X - Circuit Diagrams

uuu
GR-M562Y*X/M602Y*X,
GR-M562Y*Y/M602Y*Y
GR-B562Y*Y/B602Y*Y
GR-B562Y*Q/B602Y*Q
uuu
GR-B562Y*C/B602Y*C
NOTE
: 1. This is a basic diagram and specifications vary in different localities.

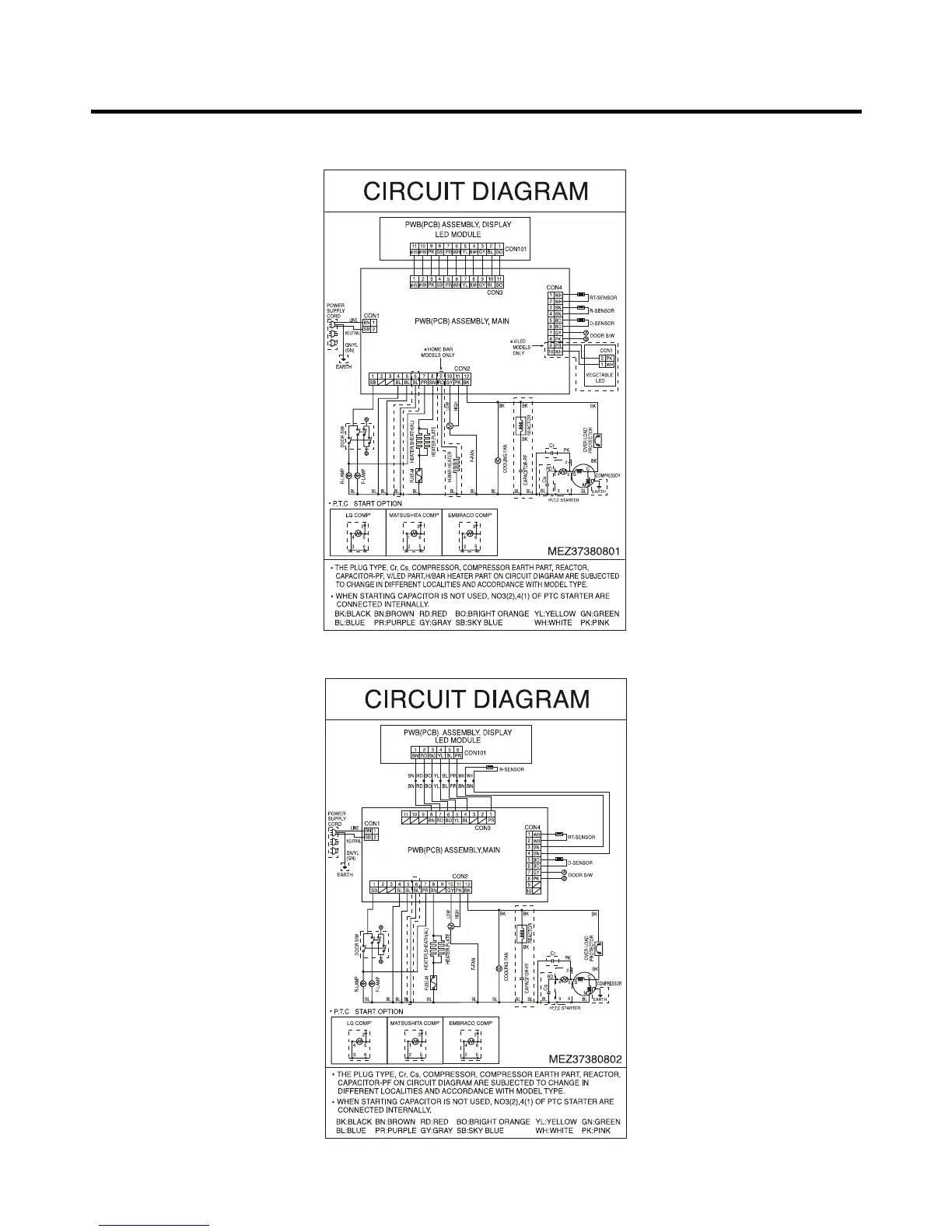

5. CIRCUIT DIAGRAM
