a AC Power Cord
Plug into the power source.
b SPEAKER Connectors
Connect the speakers.
c Cooling Fan
d FM ANTENNA Connector
Connect the FM antenna.
e DIGITAL AUDIO IN (COAXIAL)
Connect to digital (coaxial) audio equipment.
f VIDEO OUT
Connect to a TV with video inputs.
g AUX (L/R) INPUT
Connect to an external source with 2 channel audio outputs.
h AM ANTENNA Connector
Connect the AM antenna.
i DIGITAL AUDIO IN (OPTICAL)
Connect to digital (optical) audio equipment.
j PORT. IN
Connect to a portable player with audio outputs.
k COMPONENT VIDEO (Y PB PR)
OUTPUT (PROGRESSIVE SCAN)
Connect to a TV with Y Pb Pr inputs.
l LAN port
Connect a network with an always-on broadband connection.
m HDMI IN (Type A) 1/2
Connect to an external source with HDMI outputs.
(HDMI IN 1/2: HB954PB only)
n HDMI OUT (Type A)
Connect to TV with HDMI inputs. (Interface for digital audio and video)

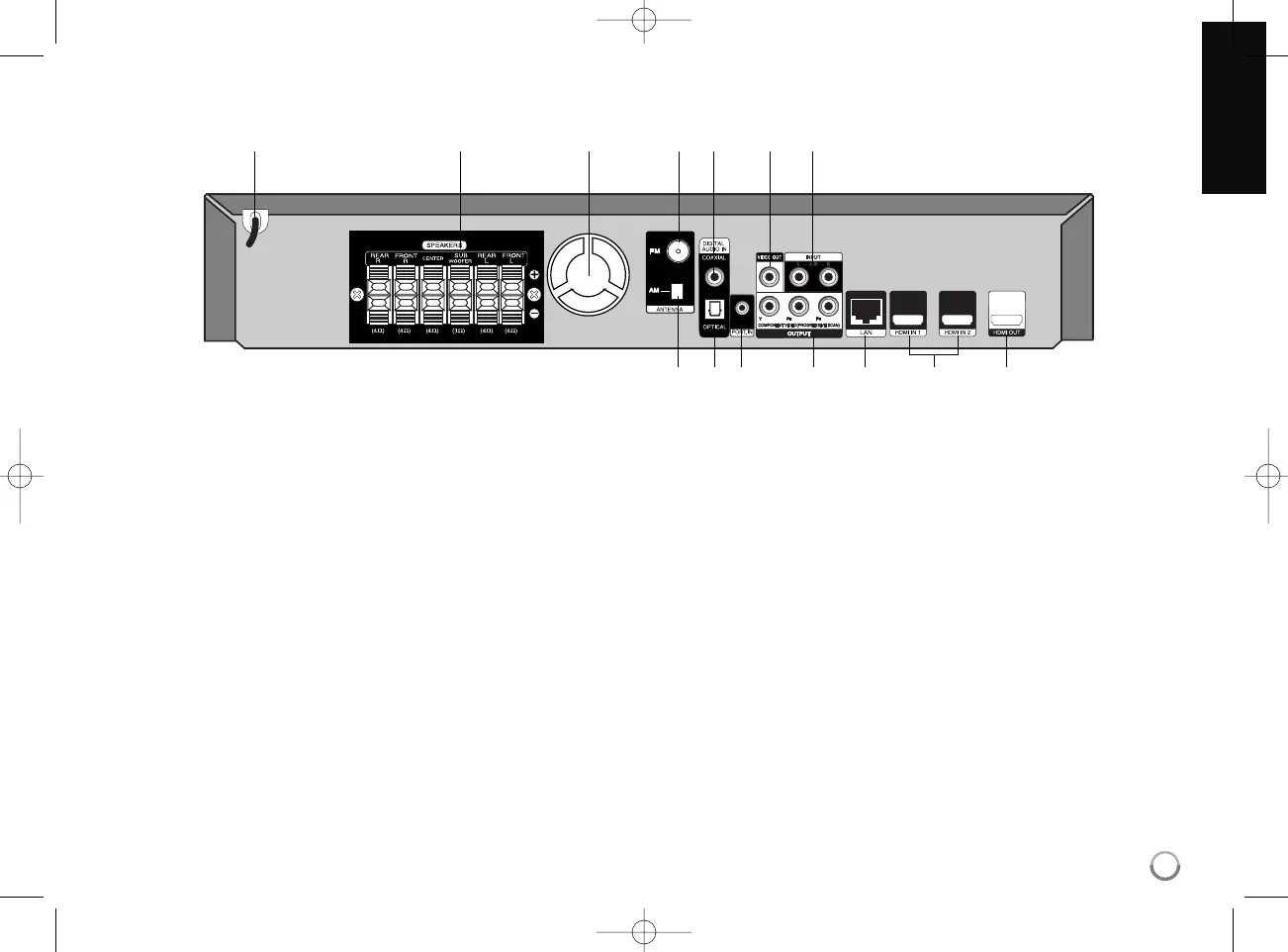

Rear panel
abcdefg
hij k l m n
