12
Speaker Connection
Connect the black end of each wire to
the terminals marked -(minus) and the
other end to the terminals marked +
(plus).
cc
Connect the wires to the speakers.
Connect the other end of each wire to the correct speaker according to
the colour coding
:
Attaching the speakers to the player
aa
You will have received six speaker cables.
Each one is colour-coded by a band near each end and connects one of
the six speakers to the player.
bb
Connect the wires to the player.
Match each wire’s coloured band to the same coloured connection
terminal on the rear of the player. To connect the cable to the player,
press each plastic finger pad to open the connection terminal. Insert the
wire and release the finger pad.

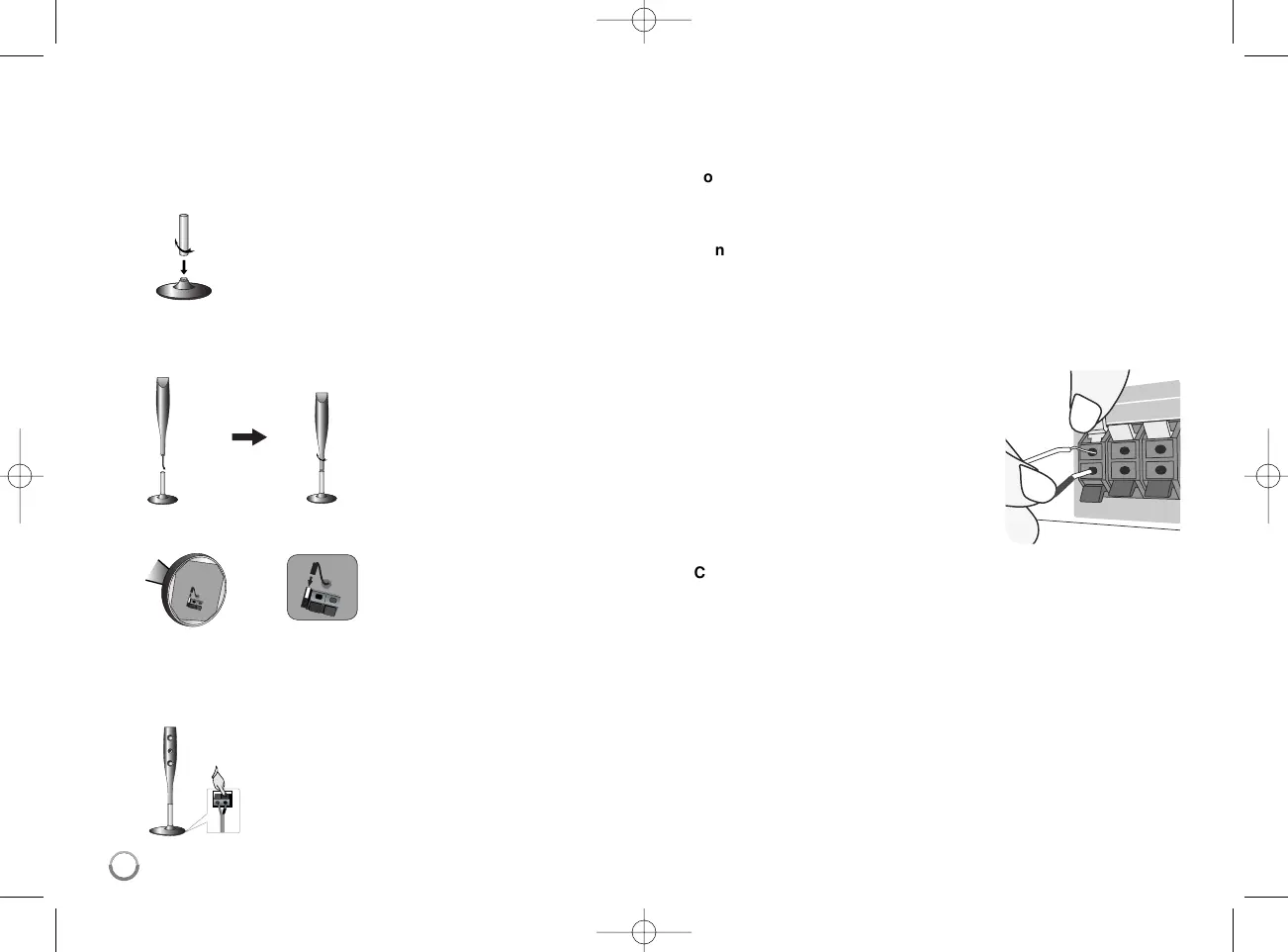

Assembling the Speakers (HB954PB only)
Before connecting the speakers, assemble the speakers.
(The illustrations in the following steps are for the front speakers.)
aa
Fix the post to the base by rotating the post.
bb
Draw the connector cable through the hole on the stand.
Fix the speaker to the stand by rotating the speaker.
c Connect the connector cable between the speaker and base.
d
Connect the speaker cables to the speaker.
Use the speaker cable of the red and white tube. Connect the black
end of each wire to the terminal marked - (minus) and the other end to
the terminal marked + (plus).
