LG HF85LA User Manual

- 10 -
Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

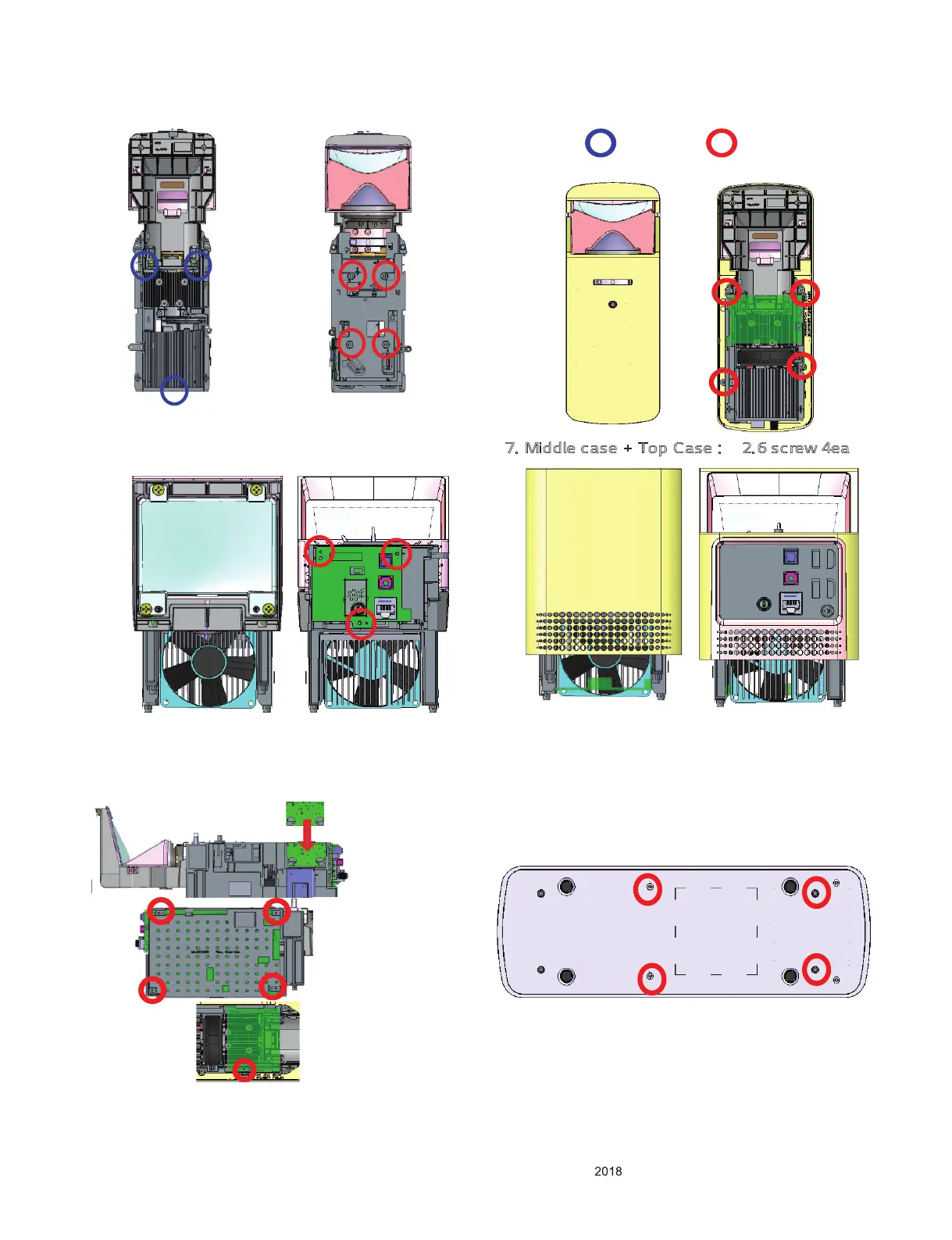

ASSEMBLY GUIDE
1.Middle case + Engine : Φ3 screw 4ea
2. Joystick + Middle case : Φ2 screw 2ea
3. Jack B/D+ Middle case : Φ2.6 Screw 3ea
4. Middle case + Fan + Speaker
5. Middle Case + Combo Assemble
6. Main B/D+ Middle case : Φ2.6 Screw 5ea
Bottom side
Right side
Left side
Combo module
 .JEEMFDBTF5PQ$BTF Φ TDSFXFB
)PPL 4DSFX 
8. Rear Bracket + Top Case
9. Bottom Assy : Φ2.6 Screw 4ea
