- 9 -
Copyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

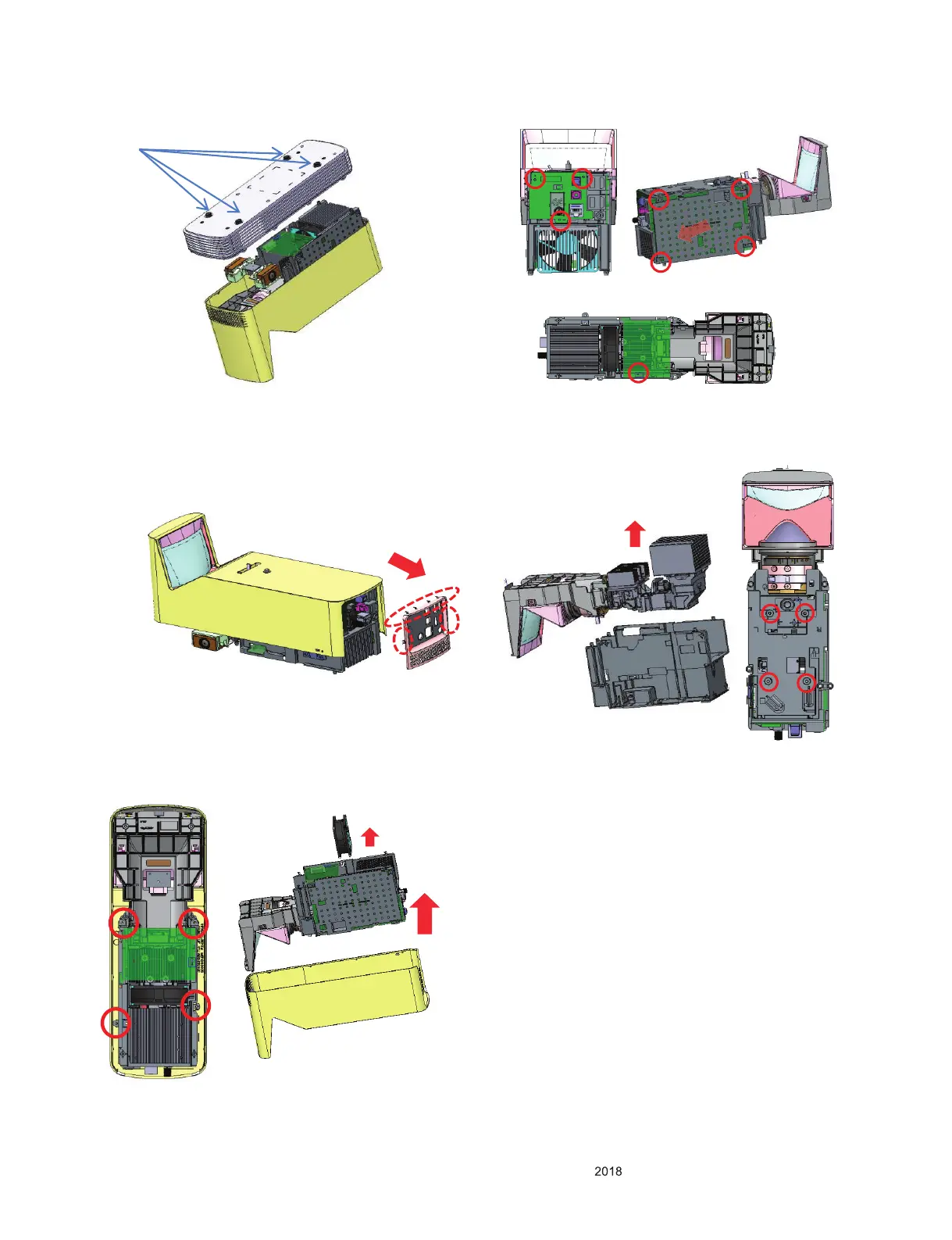

DISASSEMBLY GUIDE
1. Remove the 4pcs screws.
2. Separate out the bottom case by using the jig
(Because of Hook structure)
Screw
3. Separate out the rear case from top case.
Need to spread both sides to prevent the
damage of top case’s hook.
4. Remove the 4 screws from mid-case
5. Separate out the engine from top case
6. Remove the screws, separate out the PCB
7. Remove the top case’s 4 pcs screws
8. Separate out the engine from middle case,
and then disassembly complete.
