1. Place the projector on a sturdy and horizontal surface with the PC or AV source.
2. Place the projector with the desired distance from the screen. The distance between the projector and the screen
determines the actual size of the image.
3. Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right
angle, the screen image will be crooked. Although, slight angles can be counteracted using the Keystone adjuste-
ment. (Refer to page 20.)
4. Connect the power cable to the projector and the wall outlet after placing the projector in its desired location.

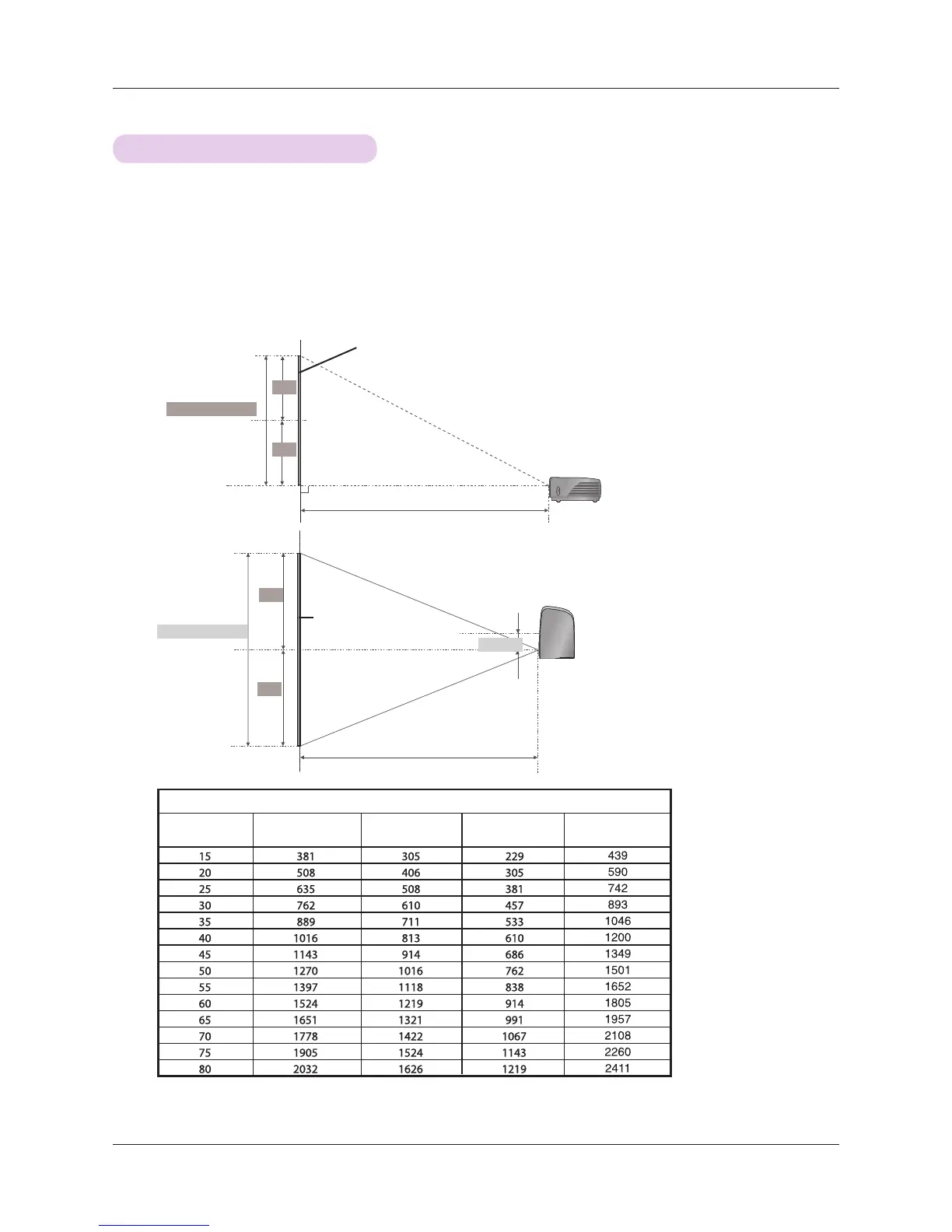

projection distance based on the picture format
Projection distance (D)
Projection offset ratio:100%
58.2mm
Projection distance (D)
Basic Operation of the Projector
Screen
Screen height (X)
X/2
X/2
Y/2
Y/2
Screen
Screen Width (Y)
4 : 3 Scale
Projection Distance(D)
(mm)
Diagonal Size
(inch)
Diagonal Size
(mm)
Horizontal Size
(mm)
Vertical Size
(mm)
