Installation and Setup
Make one of the following connections, depending on
the capabilities of your existing equipment.
Tips:
Depending on your TV and other equipment you
wish to connect, there are various ways you could
connect the
DVD/CD Receiver
. Use one of the
connections described below.
Please refer to the manuals of your TV, VCR,
Stereo System or other devices as necessary to
make the best connections.
Caution:
Make sure the DVD/CD Receiver is connected
directly to the TV. Select the correct AV input on
your TV.
Do not connect your
DVD/CD Receiver
to TV via
your VCR. The DVD image could be distorted by
the copy protection system.

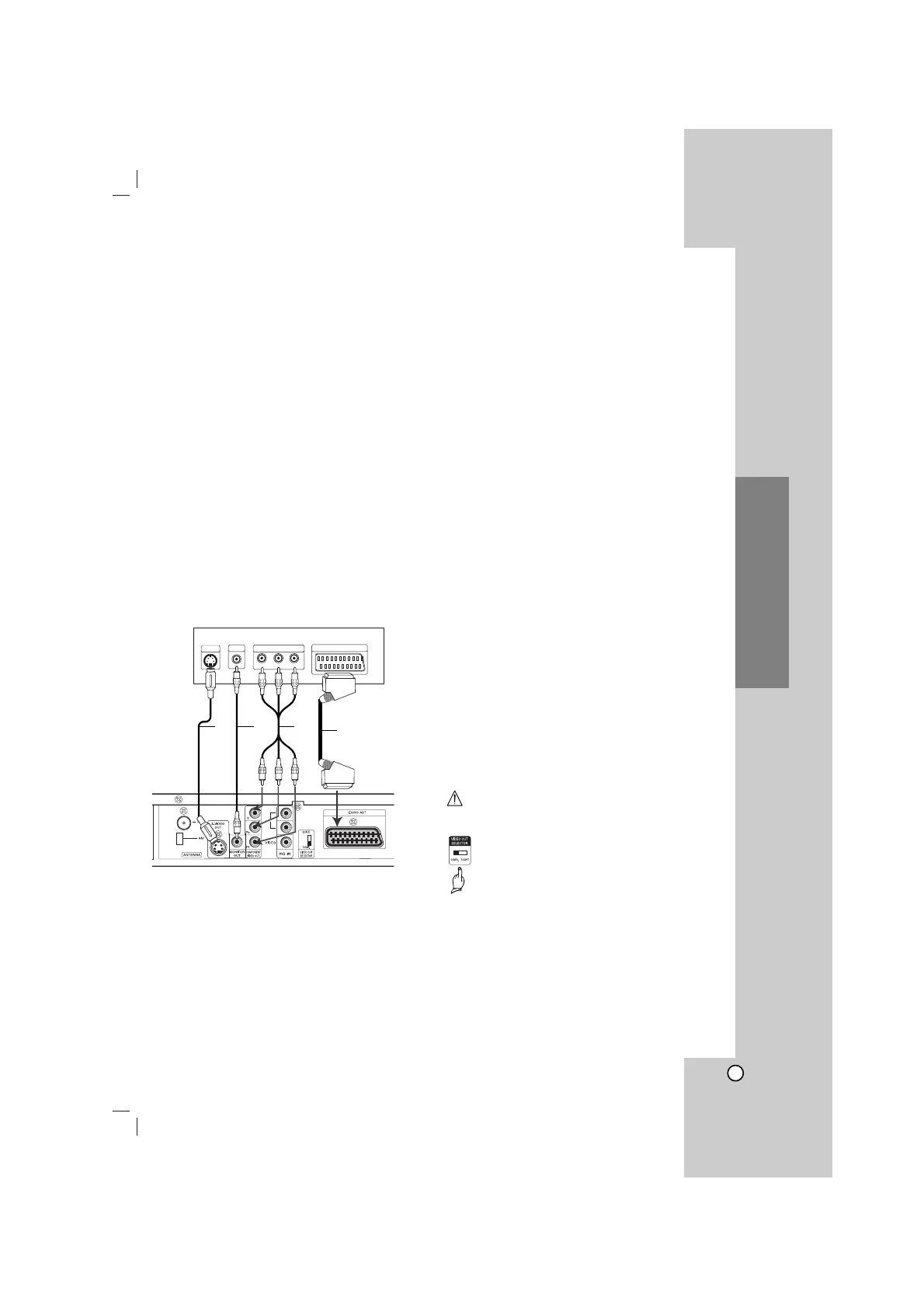

S-Video connection
Connect the S-VIDEO OUT jack on the DVD/CD
Receiver to the S-VIDEO IN jack on the TV using the
S-Video cable (S).
Video connection
Connect the MONITOR OUT jack from the DVD/CD
Receiver to the VIDEO IN jack on the TV using the
video cable supplied (V).
Component Video connection
Connect the COMPONENT VIDEO OUT jacks from
the DVD/CD Receiver to the corresponding jacks on
the TV using an Y Pb Pr cable (C).
SCART connection
Connect the EURO AV OUTPUT (TO TV) socket on
the DVD/CD Receiver to the corresponding jacks on
the TV using the scart cable (T).
If your television is a high-definition or “digital
ready” television, you may take advantage of the
DVD/CD Receiver’s progressive scan output for
higher video resolution.
If your TV does not accept your resolution setting,
abnormal picture appears on the screen. Please
read owner’s manual for TV then set the resolution
that your TV can accept.
Notes:
HDMI mode must be set to OFF for VIDEO OUT
and S-VIDEO OUT and Component video
connections.
A picture via scart input is not supported.
Caution
VIDEO OUT SELECTOR switch
In power-off state, select either
COMPONENT VIDEO OUT
(PROGRESSIVE SCAN) or SCART signal of
EURO AV TO TV terminal depending on how
to connect the unit to the TV.
TV Connections
To Next Page
