20

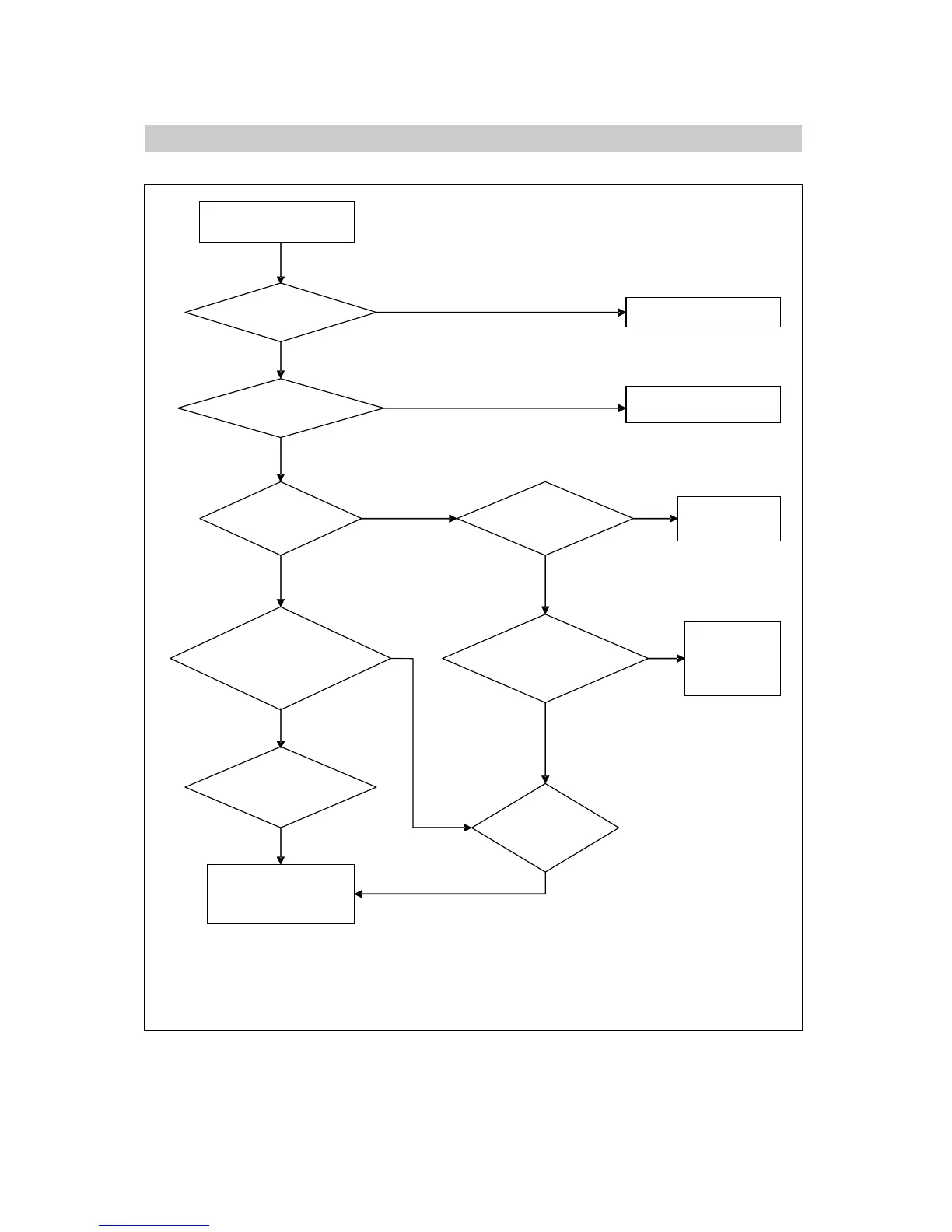

White Screen
LVDS Cable
Reinser
t
Change LVDS
Cable
Check VLCD
Is 5V?
Check Panel
-
Enable
Of U105 (pin48) is High?
Check R168, R105
Q103, Q101
END
Workmanship
LVDS Cable NG
Panel Fail
Check LVDS
Signals
Check the HW Rese
t
Of U105 pin84
Check the pins
Of U105
Check C144
R172
NG
NG
NG
NG
NG
NG
OK
OK
OK OK
O
K
6.White Screen
