50 Multi Type Air Conditioner
Disassembly of the parts (Indoor unit)
Disassembly of the parts (Indoor unit)
Warning :
Disconnect the unit from power supply before making
any checks.
Be sure the power switch is set to “OFF”.

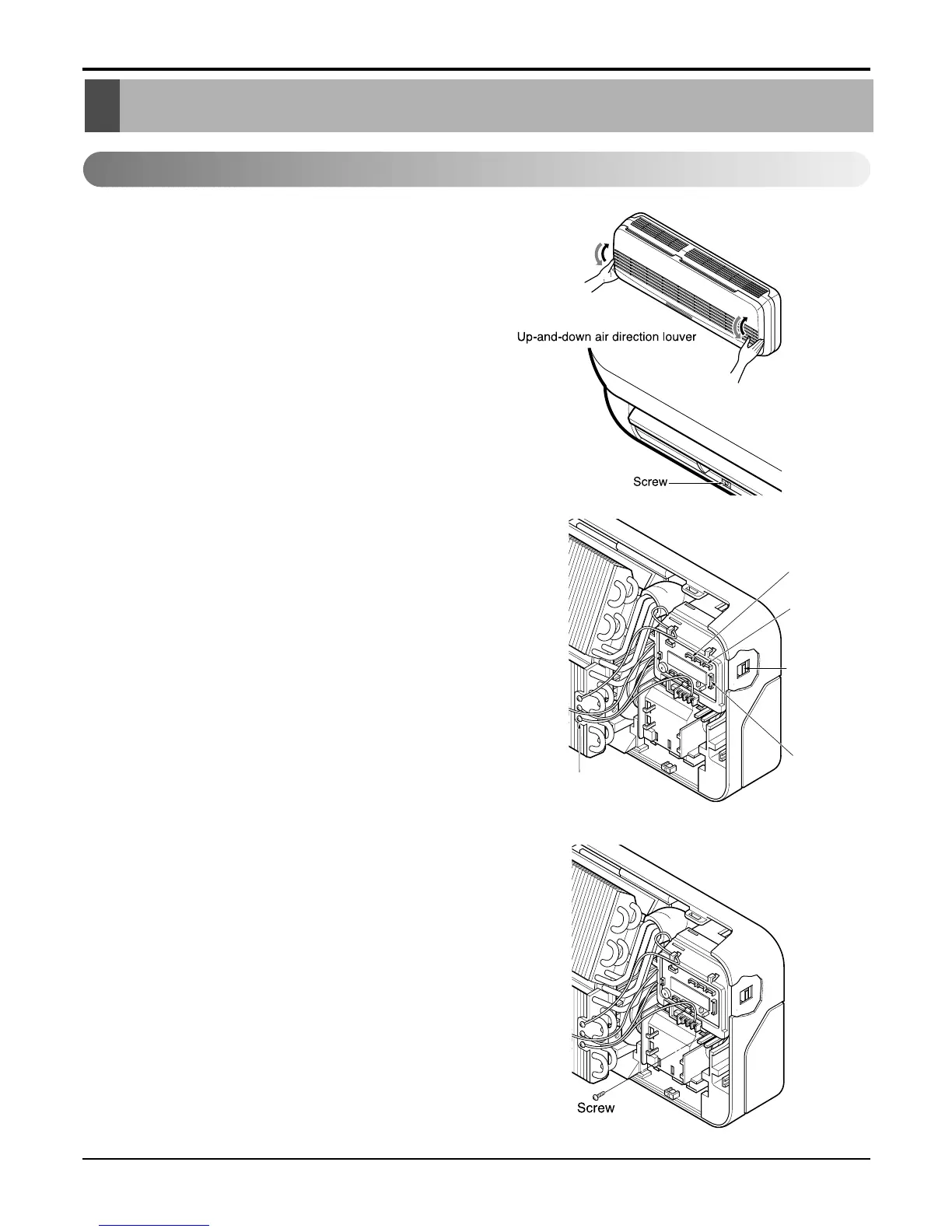

To remove the Grille from the Chassis.
• Set the up-and-down air discharge louver to open
position (horizontally) by finger pressure.
• Remove the securing screws.
• To remove the Grille, pull the lower left and right side
of the grille toward you (slightly tilted) and lift it
straight upward.
1. Before removing the control box, be sure to take
out the wire screwed at the other end.
2. To remove the Control Box.
• Remove securing screws.
• Pull the control box out from the chassis carefully.
