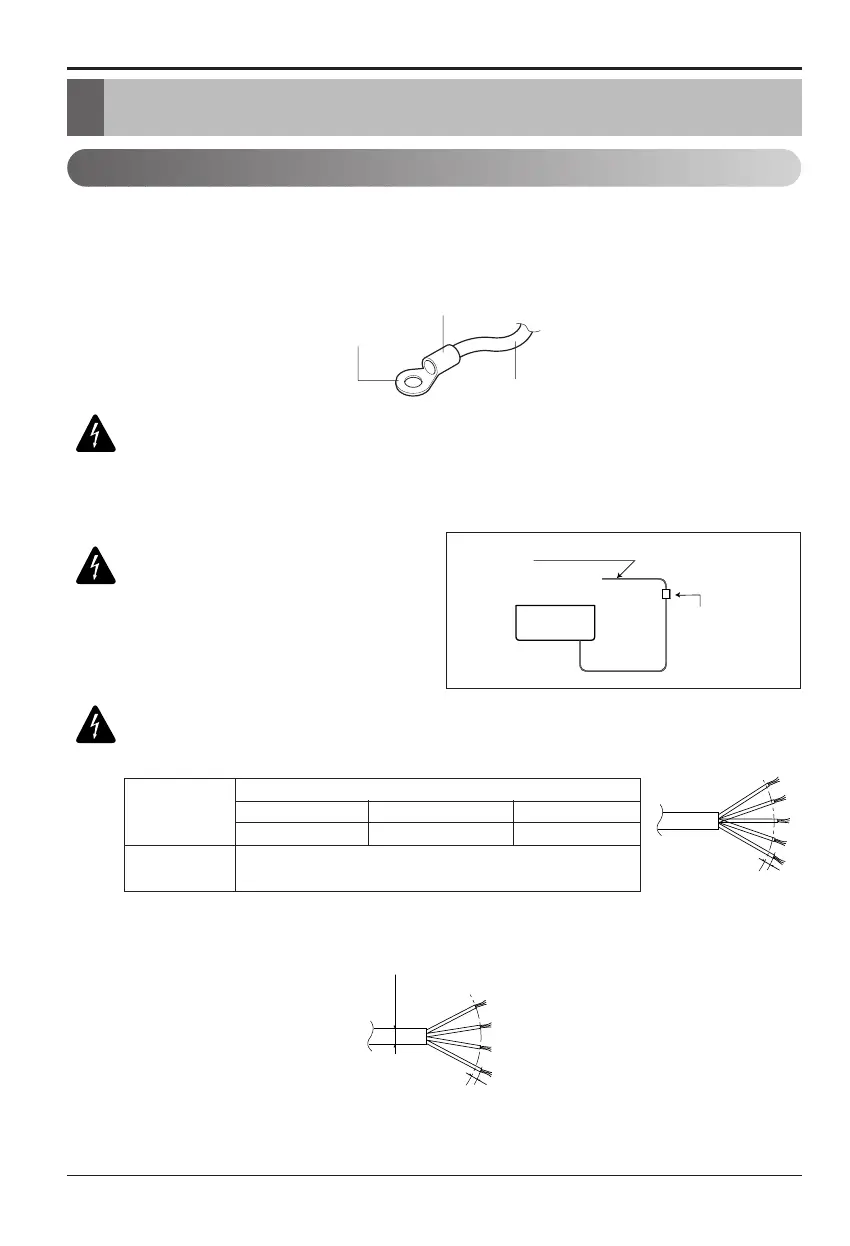

Connecting the Cable between Indoor Unit and Outdoor Unit
Connecting the Cable between Indoor Unit and Outdoor Unit
Connect the cable to the indoor unit by connecting the wires to the terminals on the control
board individually according to the outdoor unit connection. (Ensure that the color of the wires
of the outdoor unit and the terminal No. are the same as those of the indoor unit.)
Use round crimp-style terminals for connecting wires to the terminal block.
Connect the cable to the Indoor unit.
CAUTION:
• The circuit diagram is not subject to change without notice.
• Be sure to connect wires according to the wiring diagram.
• Connect the wires firmly, so that not to be pulled out easily.
• Connect the wires according to color codes by referring the wiring diagram.
CAUTION: Provide a circuit
breaker between power source
and the unit as shown below.
CAUTION:
The power cord connected to the outdoor unit(Main Power Cable)
should be complied with the following specifications (Cable type approved by
HAR or SAA).
The power cord connected to the indoor and outdoor unit should be
complied with the following specifications (Type "B" approved by HAR or
SAA).
To Next Page
