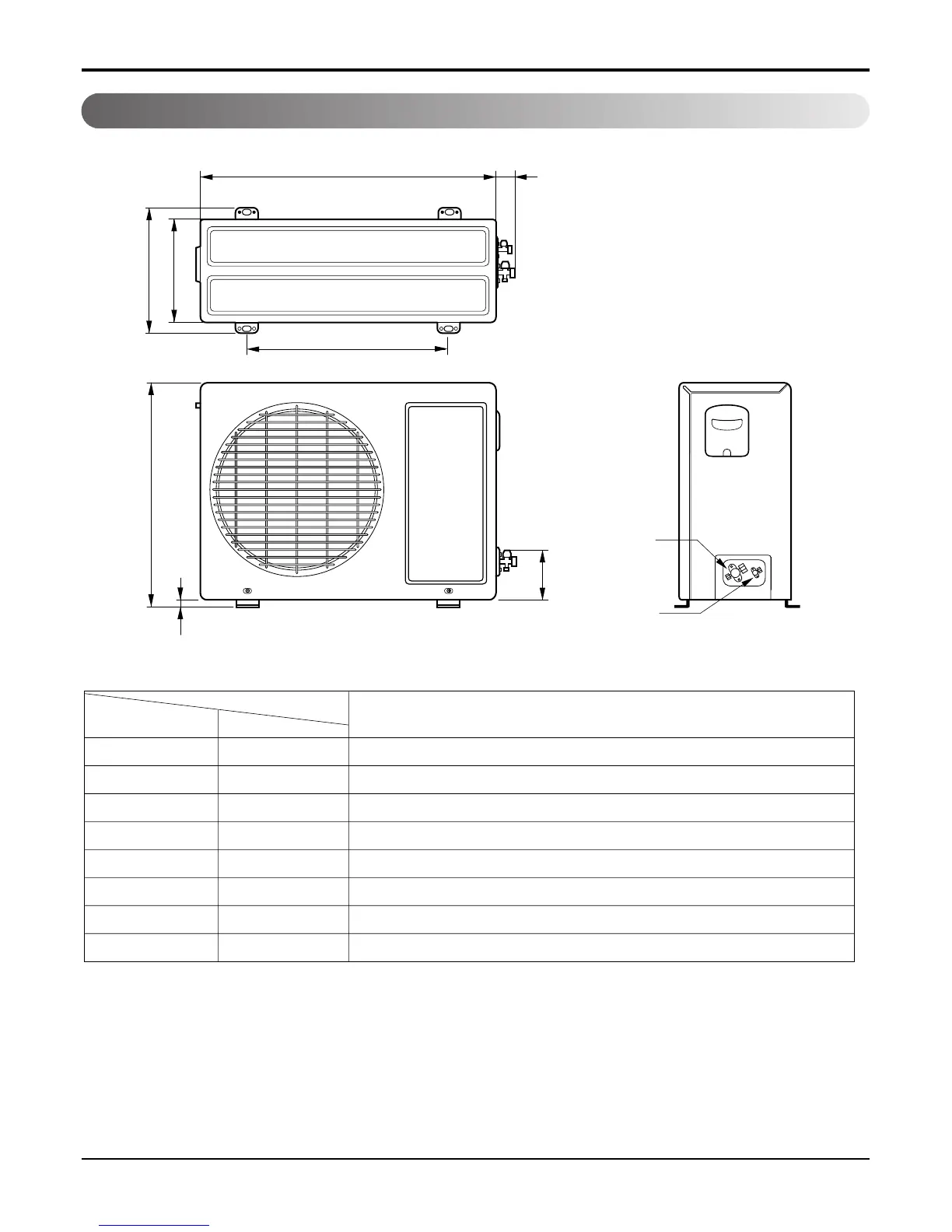

LG LA140CE - Outdoor Unit

Service Manual 9
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
MODEL
14K Btu Series
DIM unit
W mm 770
H mm 540
D mm 245
L1 mm 285
L2 mm 64
L3 mm 518
L4 mm 10
L5 mm 100
Dimensions
Outdoor Unit
