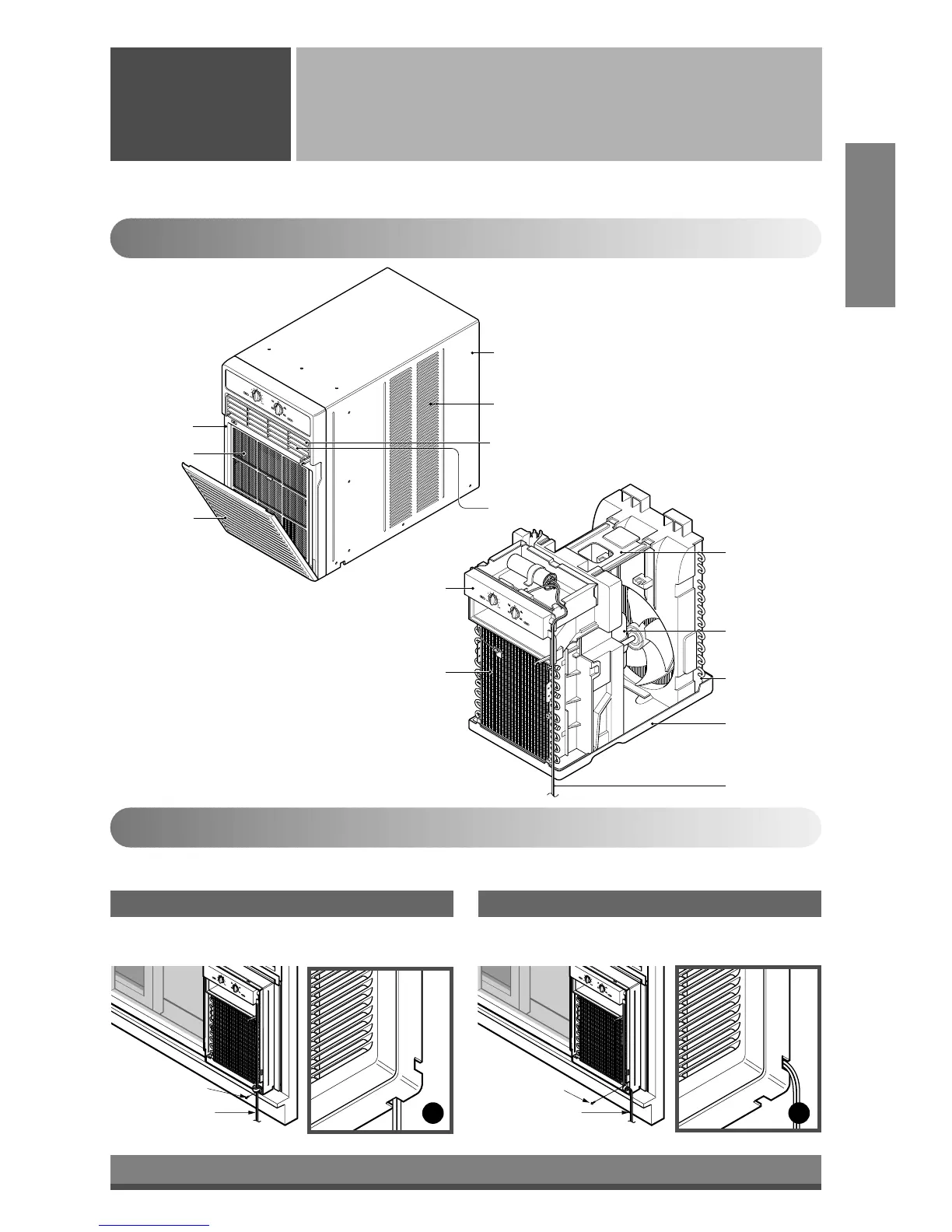

CABINET

AIR DISCHARGE

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

CONTROL BOARD

CONDENSER

COMPRESSOR

EVAPORATOR

POWER CORD

BASE PAN

BRACE

SIDE LOUVER

Power cord

Screw (Type A)

Power cord

FRONT GRILLE

AIR FILTER

AIR INTAKE

(INLET GRILLE)

Screw (Type A)

ENGLISH

Learning parts name prior to installation will help you understand the installation procedure.

Features

Installing the Power cord

You can choose between the two methods below according to your preference and window sill shape.

• Fasten the stopper using Type A screw, and lead

out the power cord aut through slit "A".

• Fasten the stopper using left screw hole, and rotate

properly to lead the power cord out through slit "B".

Using slit "A" Using slit "B"

Hardware Installation

Hardware

Installation
