10. Place Air Conditioner in window opening. It should sit on
Bracket assembly so that Curtain Frame and cabinet Side
Guides are against top and side window jambs. Mate front
of Bracket with Base Guide attached to the bottom of base
pan.
11. Drill 1/8 inch holes in window track through the existing
holes on Base Guide. Screw 4 Type C screws through the
holes. (Fig. 8)
12. If this is a casement window installation, proceed to
Casement Window Installation. If not, slide inner window
sash firmly against side of the cabinet.
13. Drill 1/8 inch hole in window jamb to align with the existing
holes in the Curtain Frame. Attach Curtain Frame to
window frame with 2 Type B screws. (Fig. 8)
NOTE: Check all seals and plug any remaining air gaps with a
suitable weatherproof caulk.
14. If this is a casement window installation, proceed to
Casement Window Installation. If not, stuff the Foam Seal
Strip between the vertical sash and the window glass.
(Fig. 9)
15. Attach the L Bracket with a Type B screw. (Fig. 9)

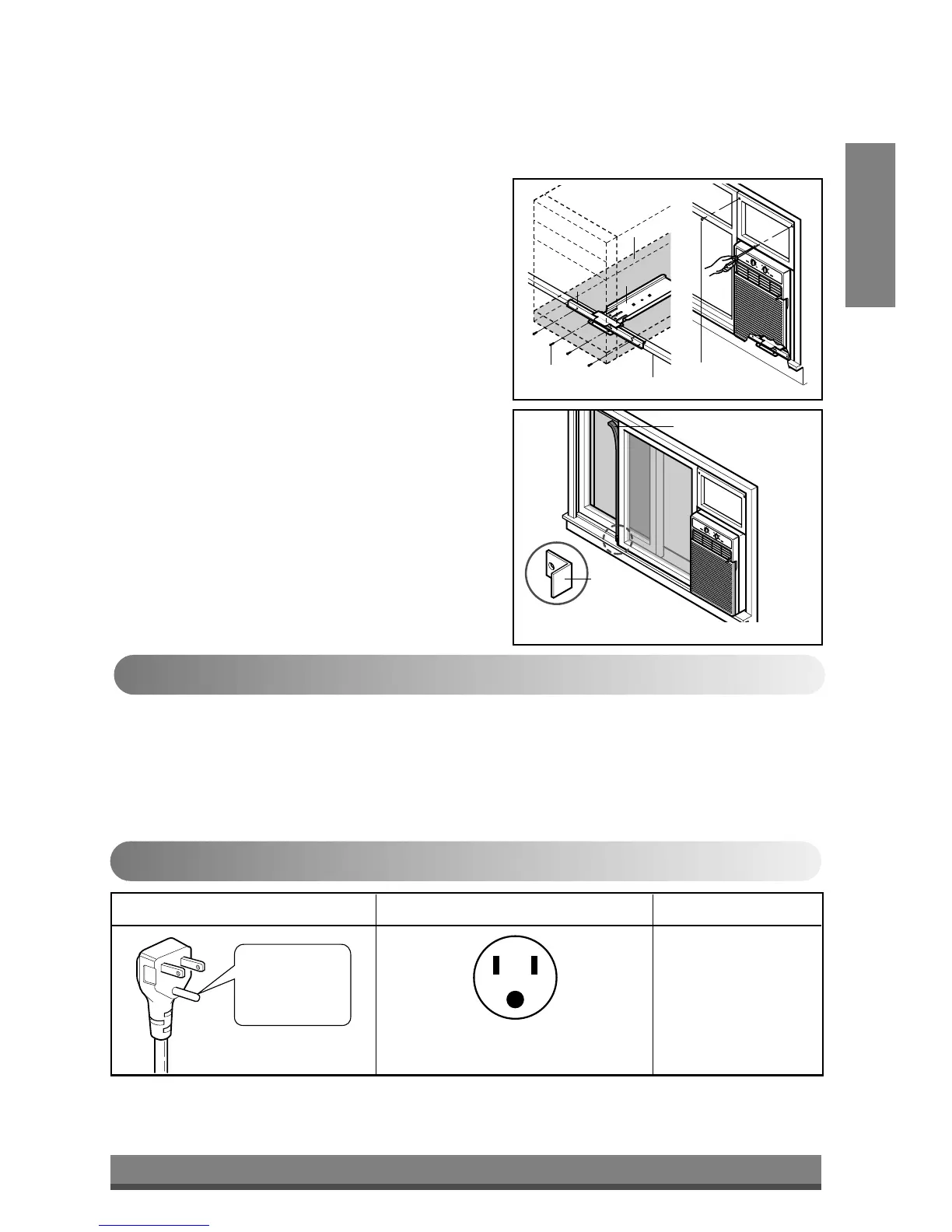

Fig. 8
Fig. 9
Casement Window Installation
Electrical Data
1. Installation procedure is the same as that described in steps 1 through 11 and step 13 of the Horizontal Sliding
Window installation.
2. If the window opening is wider than 15-3/4 inches you will need to install a filler panel. Make this panel from
3/4 inch thick wood and run it the full length of the window.
Attach it securely to the window frame and paint it to protect it from the weather.
3. Since styles and sizes of casement windows vary widely, it is advisable to have the air conditioner installed by
someone skilled in this type of installation.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly discourage the use of an extension cord. However, if you wish
to use an extension cord, use a CSA certified/UL-listed 3-wire (grounding) extension cord, rated 15A, 125V.
