Frame Curtain
Curtain
Fastening Side Guides
Upper Guide
Side Guide
Apply weather seal
to side guides
just below edge of
Curtain Frame .
12

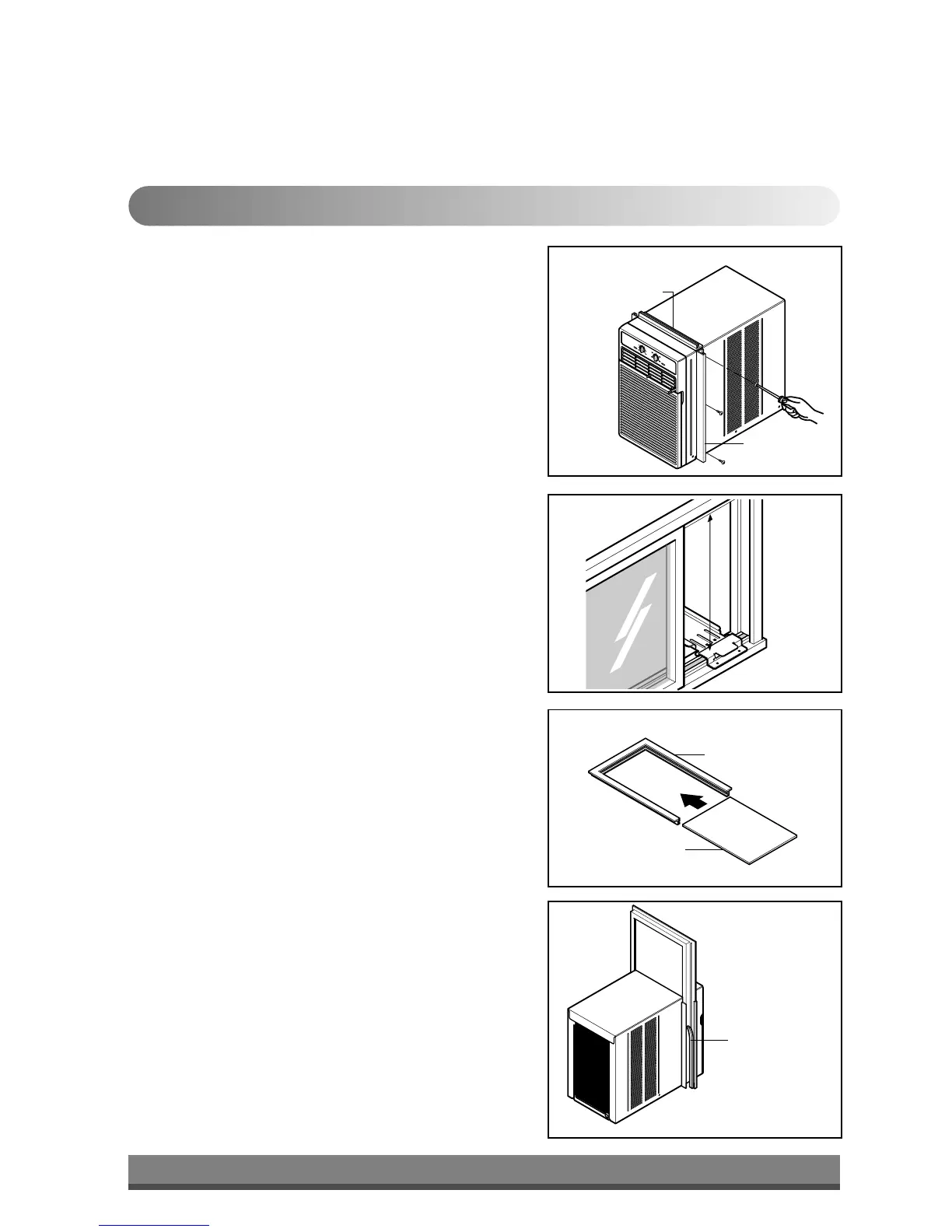

Horizontal Sliding Window Installation
5. Fasten Side Guides to the sides of the Air Conditioner
using 3 Type A screws per Guide. Start with first screw at
middle of Guide. (Fig. 4)
6. Fasten Upper Guide on the top of the Air Conditioner using
3 Type A screws. (Fig. 4)
7. Measure height of window opening from top of Bracket
assembly as shown Fig. 5. Subtract 20-3/4 inches. Mark
this measurement on Curtain and cut the Curtain. (Fig. 5)
8. Slide Curtain into Curtain Frame. Slide Curtain Frame
assembly into side Guides of the Air Conditioner cabinet.
Make sure Curtain is firmly enclosed on all sides by the
Frame. (Fig. 6)
9. Cut side Guide seal into 2 equal lengths. Remove
protective backing and apply it to the rear side of cabinet
Side Guides, starting just below Curtain Frame assembly.
Pinch off excess length so seal is even with the bottom of
side Guide. (Fig. 7)
Fig. 4
Fig. 5
Fig. 6
Fig. 7
