11

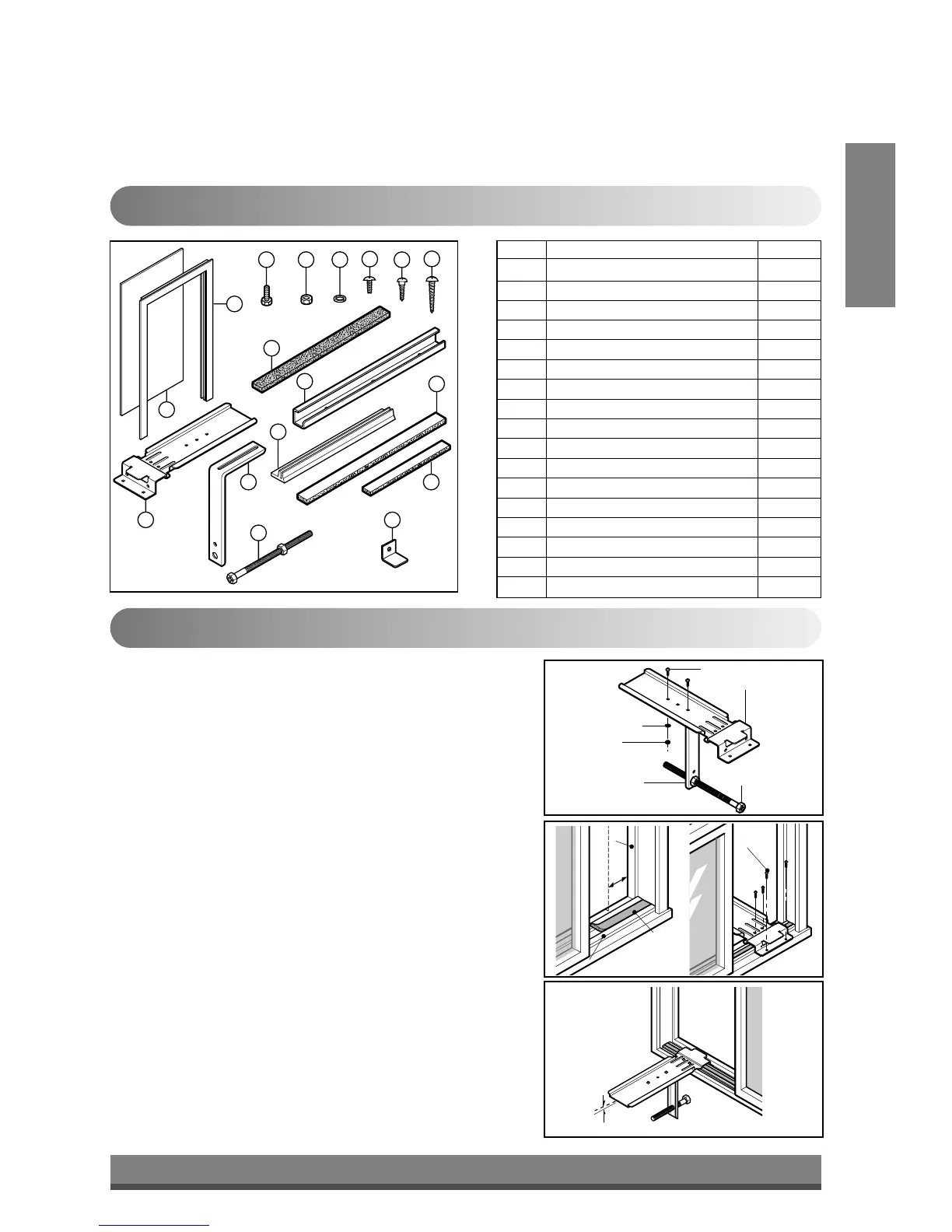

Installation Kits Contents
Horizontal Sliding Window Installation
1. Loosely attach the Support Bracket to the bottom of Bracket
using Bolts, Washer, and Nuts. Attach the Leveling bolt and
nut. (Fig. 1)
2. Remove protective backing from Window Track Seal and apply
seal to window track. (Fig.2)
3. Measure and lightly mark a line 8-1/4 inches from window
jamb. Center the Support Bracket assembly on the window
track and fasten with 4 Type C screws.(Fig. 2)
4.
Put the Support Bracket against the outside wall and tighten the
Bolts on top of the Bracket. Adjust the Leveling Bolt so that the
air conditioner will be installed with a very slight tilt (about 1/4")
downward toward the outside for proper drainage.
Tighten the nut.
(Fig. 3)
NOTE: DO NOT drill a hole in the bottom of the base pan. The air
conditioner is designed to operate with the bottom of the
base pan approximately half-full of water.
NO. NAME OF PARTS Q'TY
1 Curtain 1
2 Curtain Frame 1
3 Upper Guide 1
4 Side Guide 2
5 Support Bracket 1
6 Bracket 1
7 Leveling bolt & nut 1
8 Bolt 2
9 Nut 2
10 Washer 2
11 Side Guide seal 1
12 Foam Seal Strip 1
13 Window Track Seal 1
14 Window Locking Bracket 1
15 Screw (Type A) 9
16 Screw (Type B) 3
17 Screw (Type C) 8
Fig. 1
Fig. 2
Fig. 3
