10 Room Air Conditioner

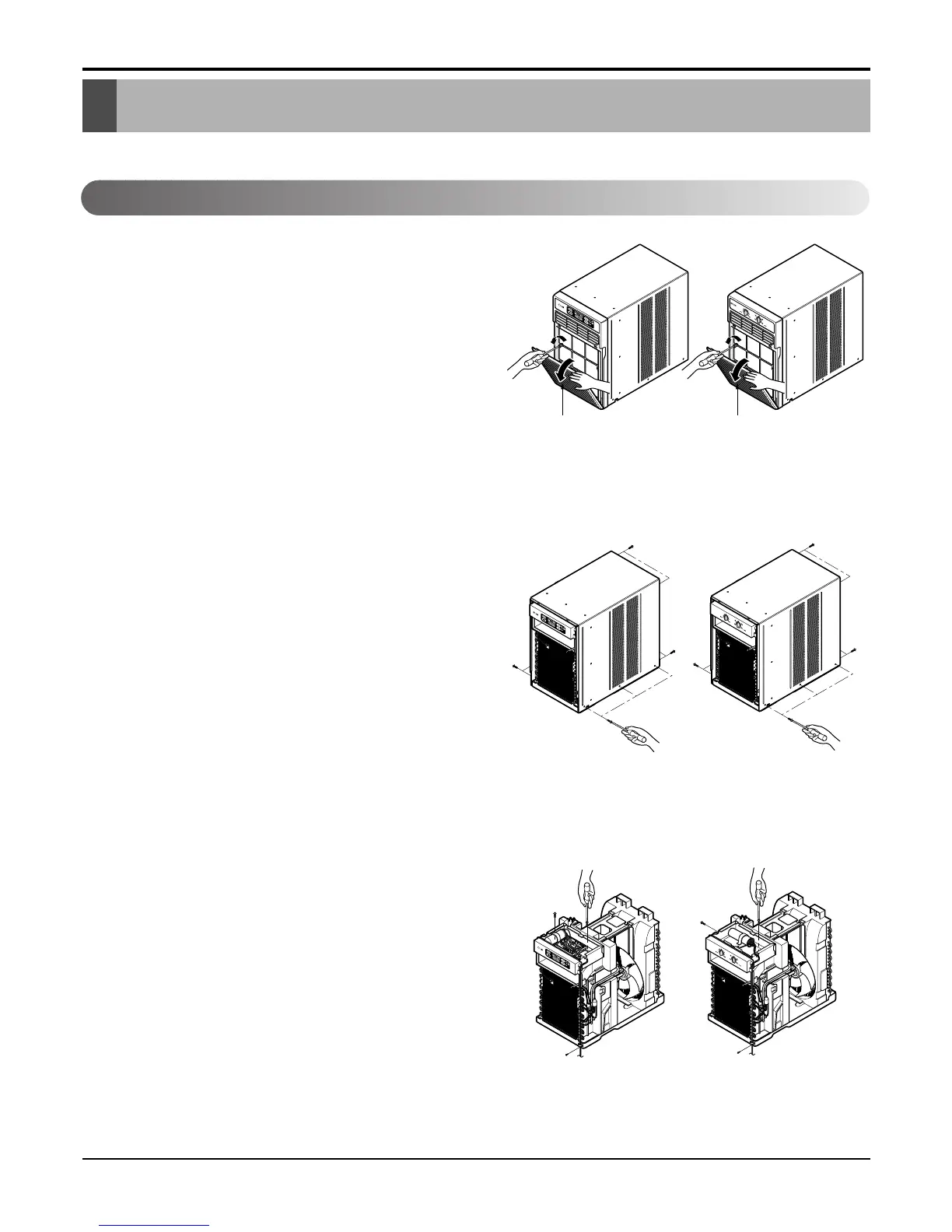

Disassembly Instructions
Disassembly Instructins
FRONT GRILLE
1. Open the inlet grille downward and remove the air
filter.
2. Remove the screws which fasten the front
grille.(See Figure 1)
3. Pull the front grille from the right side.
4. Remove the front grille.(There are 4 hooks.)
5. Re-install the components by referring to the
removal procedure, above.
CABINET
1. After disassembling the FRONT GRILLE, remove
the 6 screws which fasten the cabinet at both
sides.(See Figure 2)
2. Remove the 4 screws which fasten the cabinet at
back.
3. Remove the cabinet.
4. Re-install the components by referring to the
removal procedure, above.
CONTROL BOX
1. Remove the front grille. (Refer to section 2.1.1)
2. Remove the cabinet. (Refer to section 2.1.2)
3. Remove the 1 screw which fasten the power cord.
(See Figure 3)
4. Disconnect the grounding screw from the evapo-
rator channel.
5. Remove the 2 screws which fasten the control
box.(See Figure 3)
6. Remove the housing which connects motor wire
in the control box.
7. Remove three leads which connect compressor.
8. Discharge the capacitor by placing a 20,000 ohm
resistor across the capacitor terminals.
9. Raise the control box upward completely.
10. Re-install the components by referring to the
removal procedure, above.
(Refer to the circuit diagram found on pages
29~32 in this manual and on the control box.)
Inlet GrilleInlet Grille
— Before the following disassembly, set POWER SWITCH to OFF and disconnect the power cord.
Figure 1
Figure 3
Figure 2
Mechanical Parts
