20 Room Air Conditioner
Installation

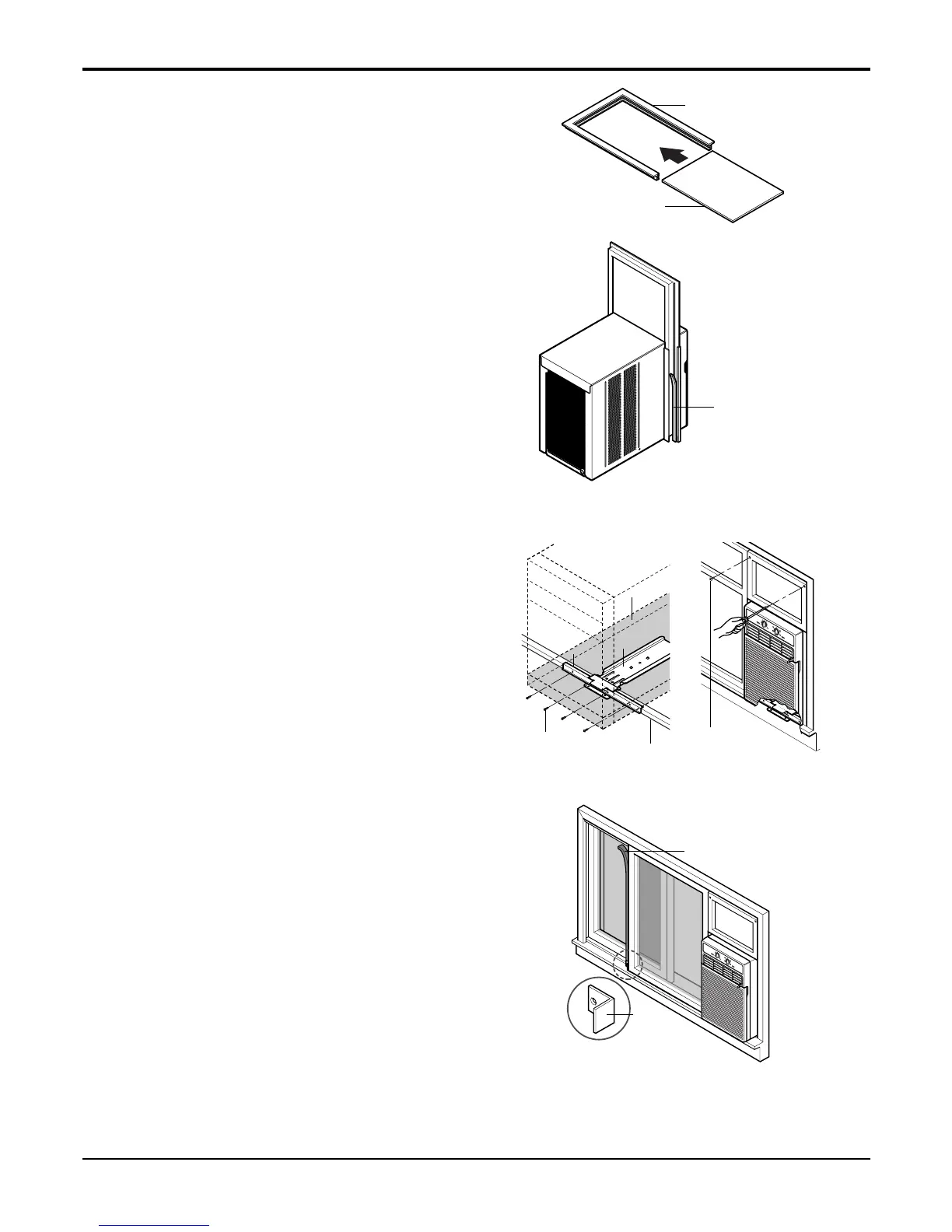

8. Slide Curtain into Curtain Frame. Slide Curtain Frame
assembly into side Guides of the Air Conditioner cabi-
net. Make sure Curtain is firmly enclosed on all sides
by the Frame. (See Figure 27)
9. Cut side Guide seal into 2 equal lengths. Remove pro-
tective backing and apply it to the rear side of cabinet
Side Guides, starting just below Curtain Frame
assembly. Pinch off excess length so seal is even with
the bottom of side Guide. (See Figure 28)
10. Place Air Conditioner in window opening. It should sit
on Bracket assembly so that Curtain Frame and cab-
inet Side Guides are against top and side window
jambs. Mate front of Bracket with Base Guide
attached to the bottom of base pan.
11. Drill 1/8 inch holes in window track through the exist-
ing holes on Base Guide. Screw 4 Type C screws
through the holes. (See Figure 29)
12. If this is a casement window installation, proceed to
Casement Window Installation. If not, slide inner win-
dow sash firmly against side of the cabinet.
13.
Drill 1/8 inch hole in window jamb to align with the
existing holes in the Curtain Frame. Attach Curtain
Frame to window frame with 2 Type B screws.
(See
Figure 29)
NOTE: Check all seals and plug any remaining air gaps
with a suitable weatherproof caulk.
14. If this is a casement window installation, proceed to
Casement Window Installation. If not, stuff the Foam
Seal Strip between the vertical sash and the window
glass.
(See Figure 30)
15. Attach the Window Locking Bracket with a Type B
screw.
(See Figure 30)
CASEMENT WINDOW INSTALLATION
Installation procedure is the same as that described in
steps 1 through 11 and step 13 of the Horizontal
Sliding Window installation.
If the window opening is wider than 15-3/4 inches you
will need to install a filler panel. Make this panel from
3/4 inch thick wood and run it the full length of the win-
dow. Attach it securely to the window frame and paint it
to protect it from the weather.
Since styles and sizes of casement windows vary wide-
ly, it is advisable to have the air conditioner installed by
someone skilled in this type of installation.
Curtain Frame
Curtain
Window
locking
bracket
Foam seal strip
Apply weather seal
to side guides
just below edge of
Curtain Frame.
Type B screwType B screw
Type C screw
Base panBase pan
BracketBracket
Window TrackWindow Track
Base GuideBase Guide
Figure 27
Figure 28
Figure 29
Figure 30
