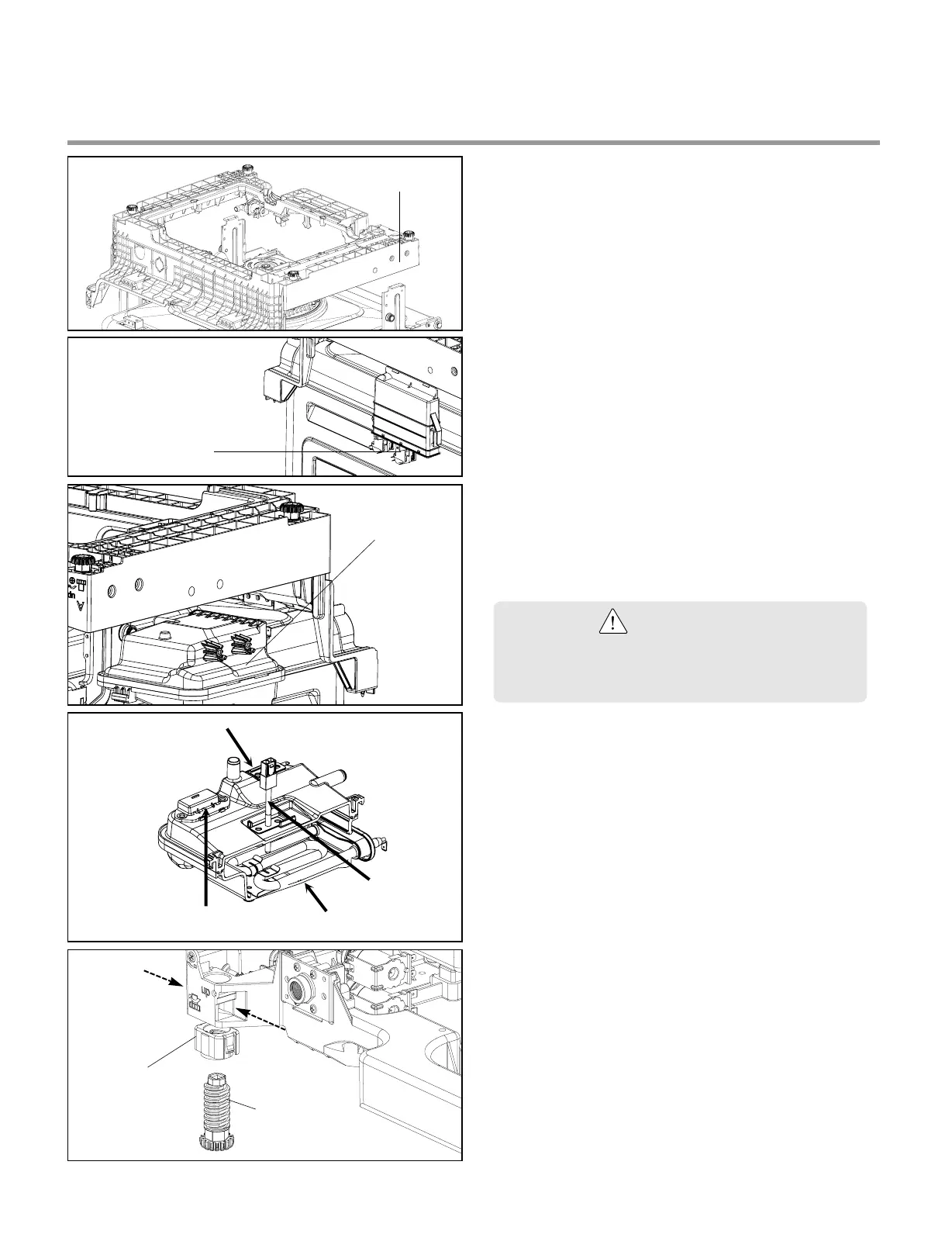

9. Cabinet Base
1) Remove 8 screws.
2) Lift it upward.
12. Foot & Nut
1) Pull the Foot twisting
2) Pull the Nut pushing the hook.
Cabinet Base
Float Assembly
WaterLevel
Sensor (High)
Thermistor
Heater
Water Level
Sensor (Low)
10. Float Assembly
1) Press the Float hook.
2) Pull the Float Assembly
11. Steam Generator
1) Disconnect the 3 hoses assembly.
2) You can disassemble the Steam generator
by removing the 2 screws.
Steam
Generator
Nut
Foot
CAUTION
Be cautious in case of the generator is hot
temperature.
To Next Page
