- 20 -- 20 -
Sump Holder
Hook
Sump
Assembly
1) Heater & Drain Motor
Pull the Heater out of the Sump after
releasing the nut.
Remove 3 screws.
2) Vario Motor
Remove 2 screws for Vario Motor.
Pull the Vario Motor and Micro S/W.
3) Soil Sensor
Pull the Soil Sensor.

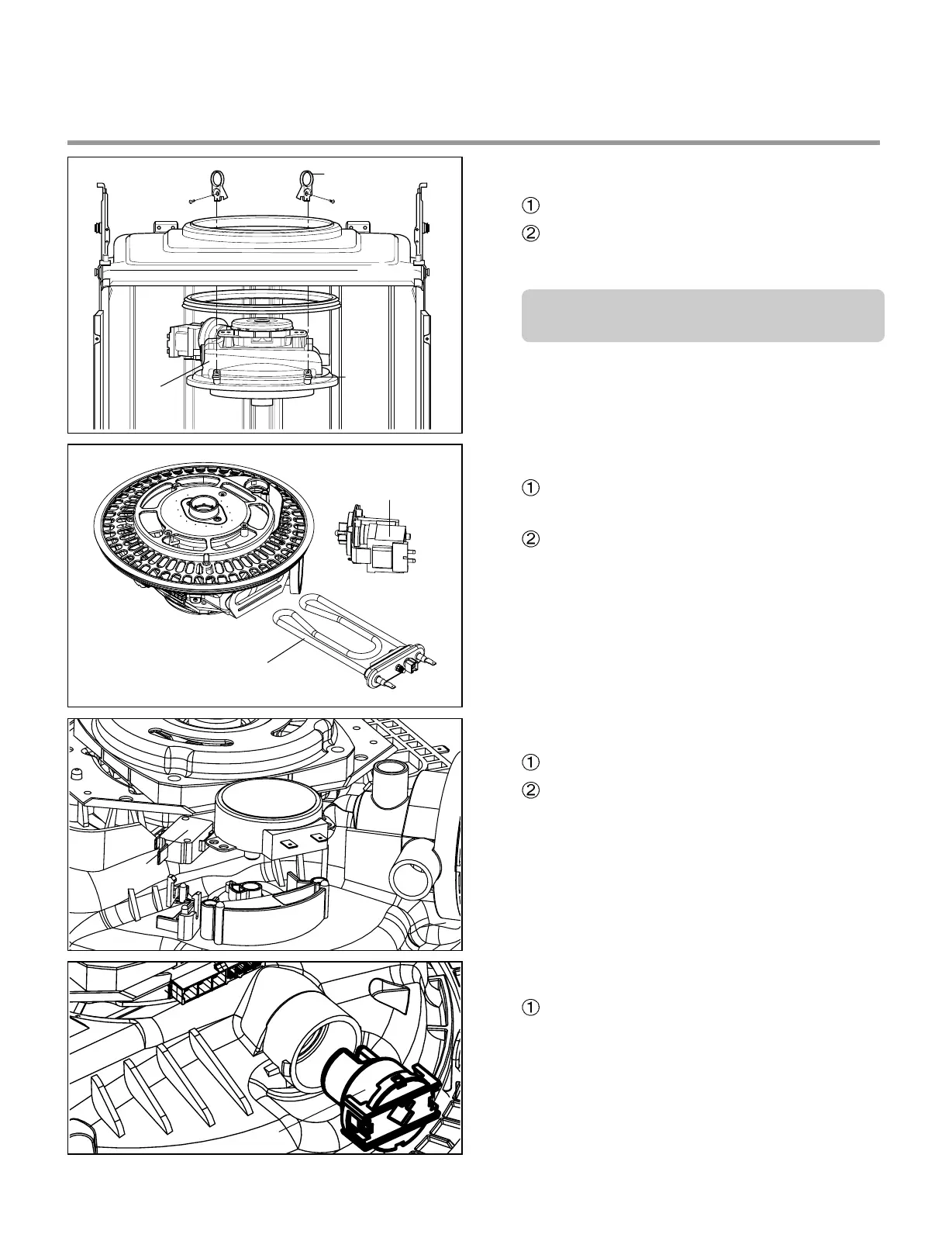

16. Sump Assembly
Remove 2 screws.
Remove the Sump Holder and push the
Sump Assembly down with pulling aside
Hook.
Be careful not to drop the Sump
Assembly to the bottom.
Drain Pump
Heater
Vario Motor
Micro
S/W
Soil
Sensor
To Next Page
